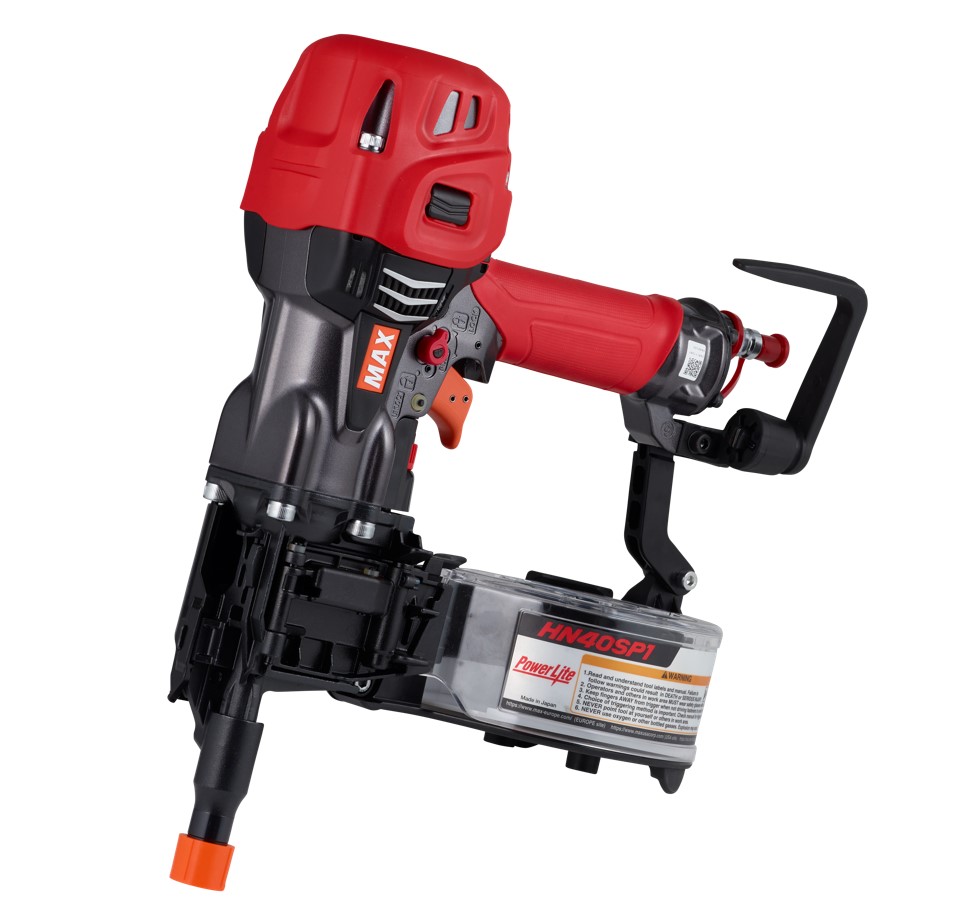

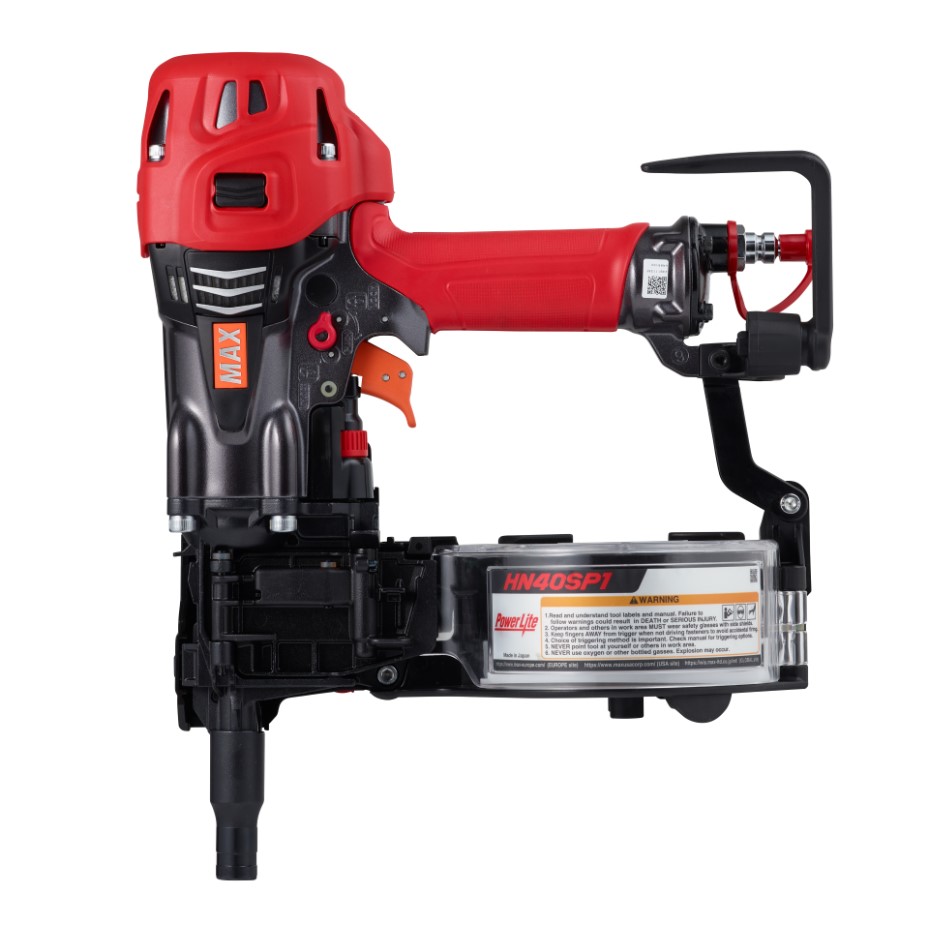

HN40SP1
PowerLite High Pressure
Screw Pinner up to 40mm

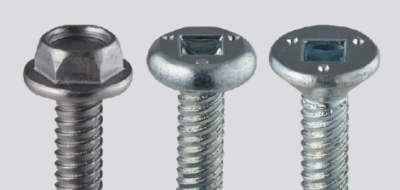

HN40SP1 is a high-pressure screw pinner capable of driving hex, pan, and countersunk head screws into timber or steel frames up to 3.2 mm thick. Compared with conventional self-drilling screw systems, it fastens much faster, produces fewer steel chips on site, and provides equivalent pull-out strength to screws.
Applications
- Steel frame structure
- Plywood to steel frame flooring
Features
- Nail-Gun Speed Installation
Powered by a high-pressure pneumatic nail gun, it drives screws as fast as nails.
- For Steel Plate Up to 3.2mm
Drives screws into steel plates up to 3.2 mm thick. - Equivalent or Greater Strength than 10g SDS
Matches or exceeds the pull-out strength of a 10g (4.8 mm) self-drilling screw. *Refer to Specification sheet for details. - Removable Screws
Can be removed with a screwdriver.
- Fewer Chips
Reduces cleanup and minimizes the risk of rust.
Specifications
WEIGHT | 2.8 kg |
|---|---|
DIMENSIONS | 332mm(H) x 132mm(W) x 279mm(L) |
MINIMUM OPERATION PRESSURE | 12 bar |
MAXIMUM OPERATION PRESSURE | 23 bar |
AIR INLET SIZE | 7/16" |
MAGAZINE CAPACITY | 100 |
DEPTH CONTROL | Yes |
JAM CLEARING | No |
TRIGGER TYPE | Sequential Fire Trigger |
Fasteners
COLLATION TYPE | Plastic |
|---|---|
NAIL GUN ANGLE | Straight |
STRIP OR COIL | Coil |
MINIMUM FASTENER SIZE | 24 |
MAXIMUM FASTENER SIZE | 40 |
MINIMUM NAIL DIAMETER | 3.7 |
MAXIMUM NAIL DIAMETER | 3.7 |

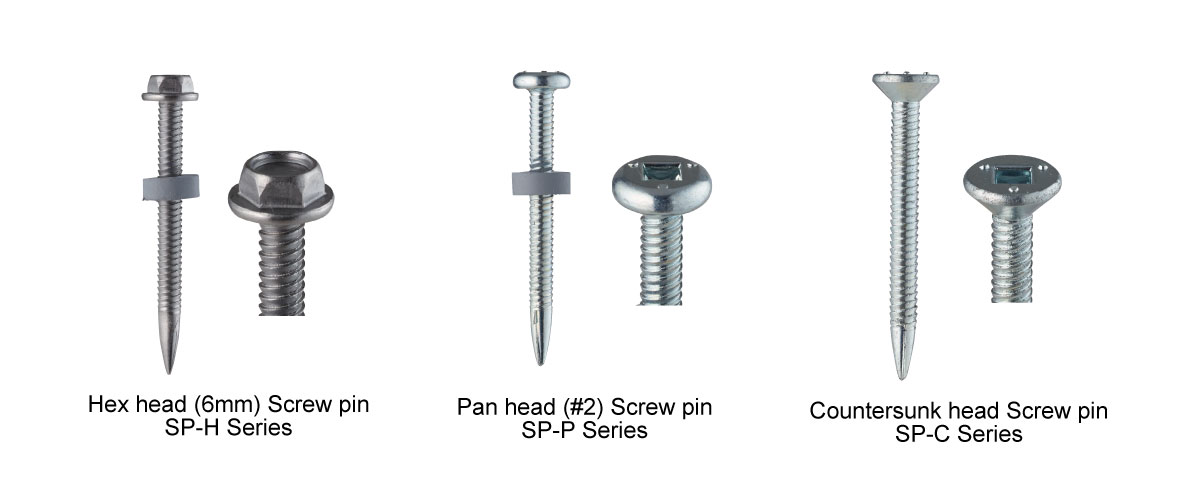

| Item code | Item name | Application | Total Length(mm) | Head | Shank dia.(mm) | Head dia.(mm) | Pins / Coil | Pins / Carton | Material | Surface treatment | Nail point | Guide |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SP99004 | SP-H3740R-S | Steel up to 3.2mm | 40 | Hex(6mm) | 3.7 | 8.5 | 100 | 1000 | Stainless steel | Ballistic | Rubber | |
| SP99005 | SP-H3724R-S | Steel up to 3.2mm | 24 | Hex(6mm) | 3.7 | 8.5 | 100 | 1000 | Stainless steel | Ballistic | Rubber | |
| SP99006 | SP-F3740R-S | Steel up to 3.2mm | 40 | Pan head(#2) | 3.7 | 8.5 | 100 | 1000 | Stainless steel | Ballistic | Rubber | |
| SP99007 | SP-F3724R-S | Steel up to 3.2mm | 24 | Pan head(#2) | 3.7 | 8.5 | 100 | 1000 | Stainless steel | Ballistic | Rubber | |
| SP99001 | SP-F3724R | Steel up to 3.2mm | 24 | Pan head(#2) | 3.7 | 8.5 | 100 | 1000 | Carbon Steel | Zinc coating >5μm | Ballistic | Rubber |
| SP99017 | SP-F3734R | Steel up to 3.2mm | 34 | Pan head(#2) | 3.7 | 8.5 | 100 | 1000 | Carbon Steel | Zinc coating >5μm | Ballistic | Rubber |
| SP99018 | SP-C3737R | Steel up to 3.2mm | 37 | Coutersunk | 3.7 | 8.5 | 100 | 1000 | Carbon Steel | Zinc coating >5μm | Ballistic | Rubber |
| SP99019 | SP-C3737 | Steel up to 3.2mm | 37 | Coutersunk | 3.7 | 8.5 | 100 | 1000 | Carbon Steel | Zinc coating >5μm | Ballistic | No |
| SP99020 | SP-C3732R | Steel up to 3.2mm | 32 | Coutersunk | 3.7 | 8.5 | 100 | 1000 | Carbon Steel | Zinc coating >5μm | Ballistic | Rubber |
| SP99021 | SP-C3732 | Steel up to 3.2mm | 32 | Coutersunk | 3.7 | 8.5 | 100 | 1000 | Carbon Steel | Zinc coating >5μm | Ballistic | No |
Manuals
Owner's Manual
Download
