CPM-100G5

4 inch Wide Sign and Label Printing & Cutting Machine

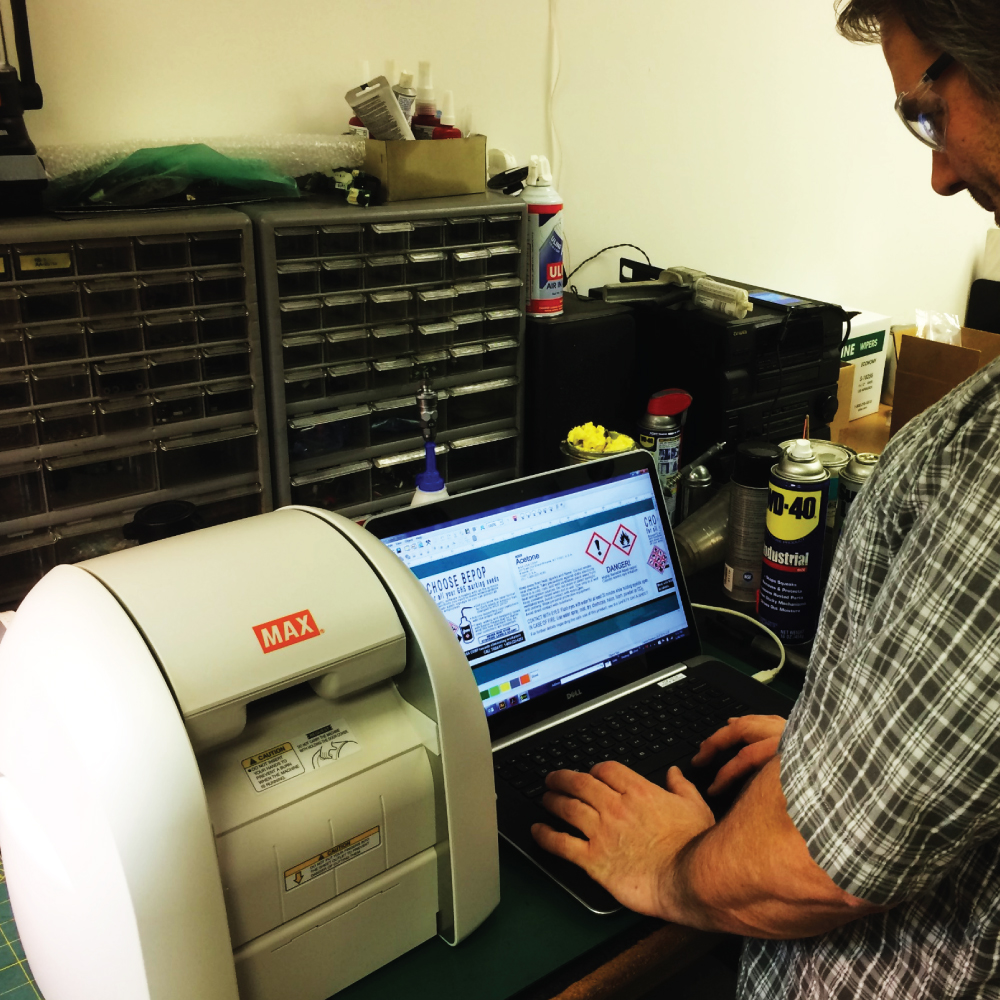

MAX CPM-100G5 4 inch wide sign and label printing and cutting machine. The CPM-100G5 combines thermal print and vinyl-cutting technology, together with our tried and tested software, to produce multiple spot-color outputs.

Applications

  • ANSI and OSHA Agency Required Signage
  • Health & Safety Signs
  • Product & Asset Labelling
  • Visual Management Signs
  • Pipe Marking / GHS Labels
  • 5S / Kaizen / Kanban Labels
  • Custom Labels

Features

  • You can create your own signs and labels wherever and whenever you want them with MAX CPM system
  • Print custom labels and signs in-house with the MAX CPM system. You can save money by eliminating waste and decreasing purchasing costs.
  • Variable information from your database saved in CSV format, can be linked directly to your label designs
  • Cuts any shapes and size freely to suit your signs and labeling needs
  • Prints UPC, QR codes and much more
  • MAX Bepop PC-EX software has over 1,400 symbols and templates

Specifications

DIMENSIONS

320mm(H) x 330mm(W) x 320mm(L)

WEIGHT
9 kg
PRINT TECHNOLOGY
Thermal Transfer
COLOR PRINTING CAPABILITY
Multi-Color
PRINT RESOLUTION
203 dpi
PRINTING SPEED
25 mm/sec.
CUTTING SPEED
120 mm/sec.
CUTTING FUNCTION
Free-cut (Shapes, Letters, Bordering, etc.)
MAXIMUM OUTPUT RANGE
100 mm x 2000 mm
MAXIMUM PRINT WIDTH
25 mm
CONNECTIVITY
USB2.0 Full Speed
OPERATING TEMPERATURE
10-35℃
OPERATING HUMIDITY
35-80%, non-condensing
POWER SUPPLY VOLTAGE
AC 100-240V

Consumables

Description Label / Ribbon size Color Material Package
PREMIUM TAPE ROLL SL-S111GN BLACK PREMIUM TAPE ROLL 4 in W x 49 ft L BLACK GLOSSY PVC 1roll/box
PREMIUM TAPE ROLL SL-S112GN WHITE PREMIUM TAPE ROLL 4 in W x 49 ft L WHITE GLOSSY PVC 1roll/box
PREMIUM TAPE ROLL SL-S113GN RED PREMIUM TAPE ROLL 4 in W x 49 ft L RED GLOSSY PVC 1roll/box
PREMIUM TAPE ROLL SL-S114GN BLUE PREMIUM TAPE ROLL 4 in W x 49 ft L BLUE GLOSSY PVC 1roll/box
PREMIUM TAPE ROLL SL-S115GN YELLOW PREMIUM TAPE ROLL 4 in W x 49 ft L YELLOW GLOSSY PVC 1roll/box
PREMIUM TAPE ROLL SL-S116GN GREEN PREMIUM TAPE ROLL 4 in W x 49 ft L GREEN GLOSSY PVC 1roll/box
PREMIUM TAPE ROLL SL-S118GN ORANGE PREMIUM TAPE ROLL 4 in W x 49 ft L ORANGE GLOSSY PVC 1roll/box
PREMIUM TAPE ROLL SL-S110GN CLEAR PREMIUM TAPE ROLL 4 in W x 49 ft L CLEAR GLOSSY PVC 1roll/box
PREMIUM TAPE ROLL SL-S126GN BROWN PREMIUM TAPE ROLL 4 in W x 49 ft L BROWN GLOSSY PVC 1roll/box
PREMIUM TAPE ROLL SL-S108GN SILVER PREMIUM TAPE ROLL 4 in W x 49 ft L SILVER GLOSSY PVC 1roll/box
PREMIUM TAPE ROLL SL-S109GN GOLD PREMIUM TAPE ROLL 4 in W x 49 ft L GOLD GLOSSY PVC 1roll/box
SPECIAL TAPE ROLL SL-S163N PET HL SILVER TAPE ROLL 4 in W x 49 ft L HAIR-LINED SILVER POLYESTER 1roll/box
SPECIAL TAPE ROLL SL-S164N PET HL GOLD TAPE ROLL 4 in W x 49 ft L HAIR-LINED GOLD POLYESTER 1roll/box
SPECIAL TAPE ROLL SL-S153N PET WHITE TAPE ROLL 4 in W x 33 ft L WHITE POLYESTER 2rolls/box
SPECIAL TAPE ROLL SL-S154N PET MAT SILVER TAPE ROLL 4 in W x 33 ft L MAT SILVER POLYESTER 2rolls/box
SPECIAL TAPE ROLL SL-S141N REFLECTIVE WHITE TAPE ROLL 4 in W x 33 ft L WHITE REFLECTIVE 2rolls/box
SPECIAL TAPE ROLL SL-S100AP APPLICATION SHEET 4 in W x 65 ft L 2rolls/box
SPECIAL TAPE ROLL SL-L100 FLOOR LAMINATE (80 micron) 4 in W x 98 ft L 1roll/box
INK RIBBON SL-R101T BLACK-C RIBBON 4 in W x 180 ft L BLACK RESIN 1pc
INK RIBBON SL-R122TH SUPER WHITE RIBBON 4 in W x 180 ft L WHITE RESIN 1pc
INK RIBBON SL-R103T RED-C RIBBON 4 in W x 180 ft L RED RESIN 1pc
INK RIBBON SL-R104T BLUE-C RIBBON 4 in W x 180 ft L BLUE RESIN 1pc
INK RIBBON SL-R105T DARK BLUE-C RIBBON 4 in W x 180 ft L DARK BLUE RESIN 1pc
INK RIBBON SL-R106T DARK GREEN RIBBON 4 in W x 180 ft L DARK GREEN RESIN 1pc
INK RIBBON SL-R107T GREEN-C RIBBON 4 in W x 180 ft L GREEN RESIN 1pc
INK RIBBON SL-R108T YELLOW-C RIBBON 4 in W x 180 ft L YELLOW RESIN 1pc
INK RIBBON SL-R112T ORANGE-C RIBBON 4 in W x 180 ft L ORANGE RESIN 1pc
ACCESSORIES CM-B20E BLADE 1pc

Manuals/Videos

Owner's Manual

Download

Basic use of Bepop PC-EX software

Watch Video

Auto copy, serial & barcode serial numbering

Watch Video

Basic use of CSV database connection

Watch Video

More advanced CSV database connection

Watch Video

Importing image data as vector image

Watch Video

Introduction of symbols and templates data

Watch Video

Introduction of other various function

Watch Video

Downloads

Schematic

Download

Example Labels using CPM-100 series

Download
