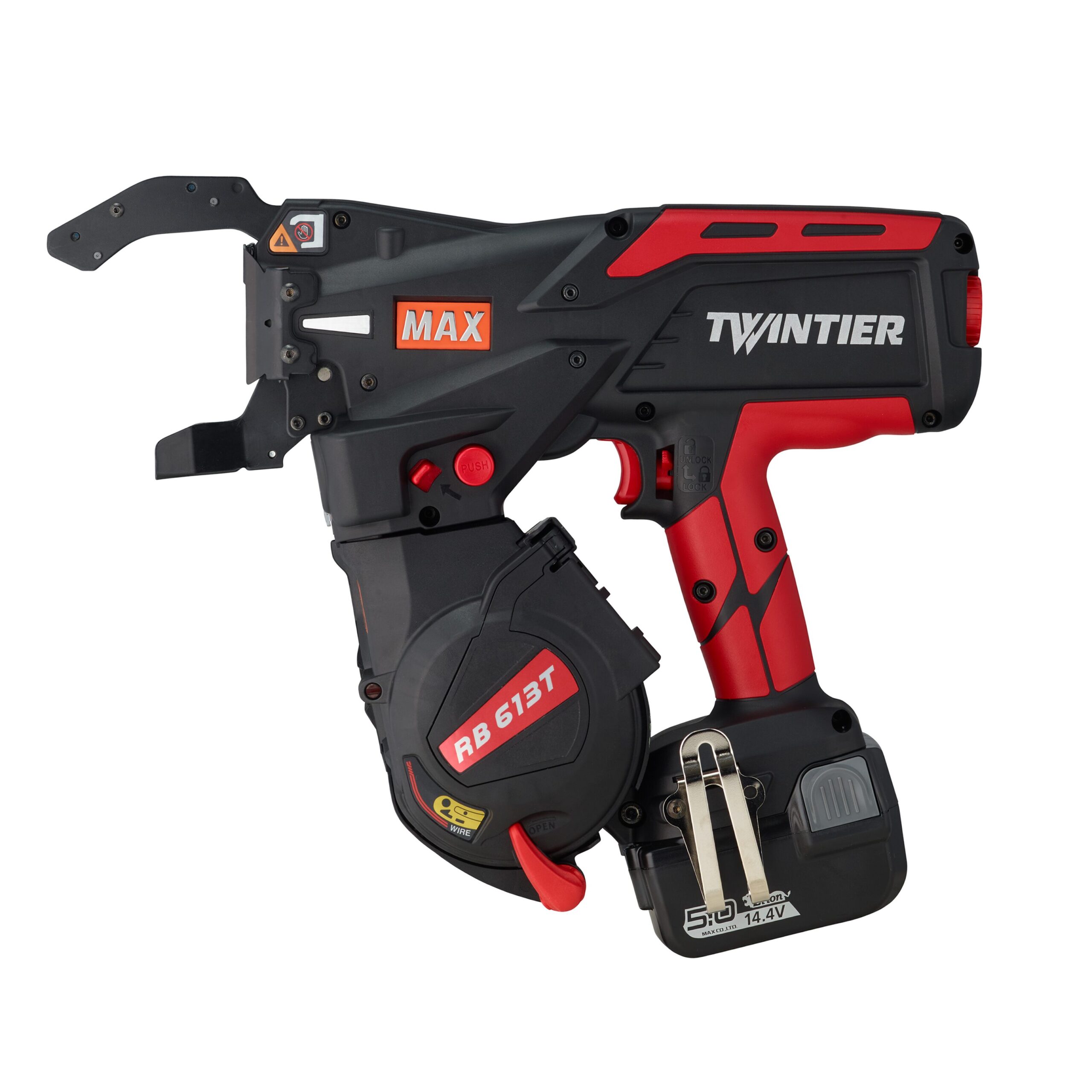

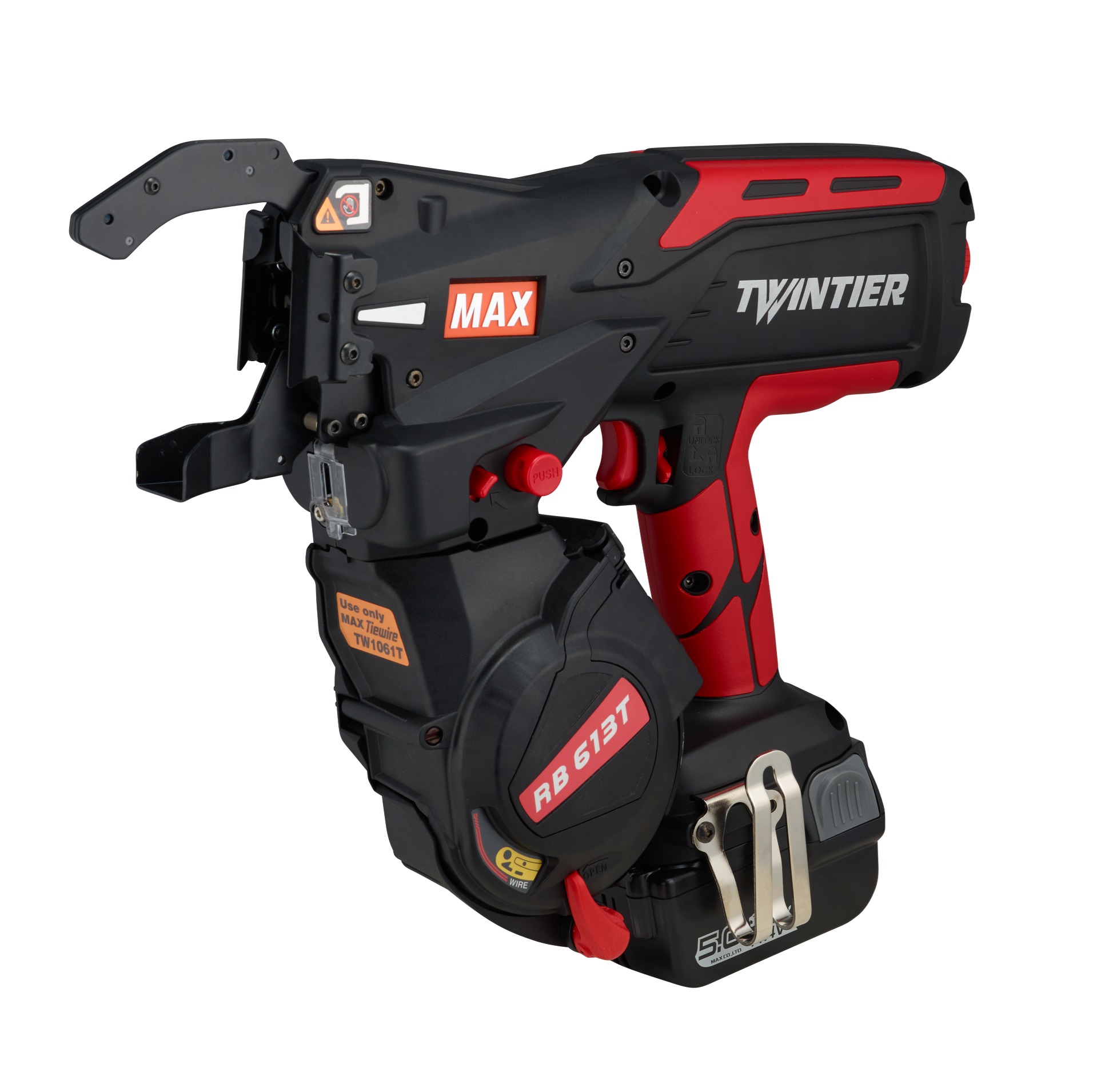

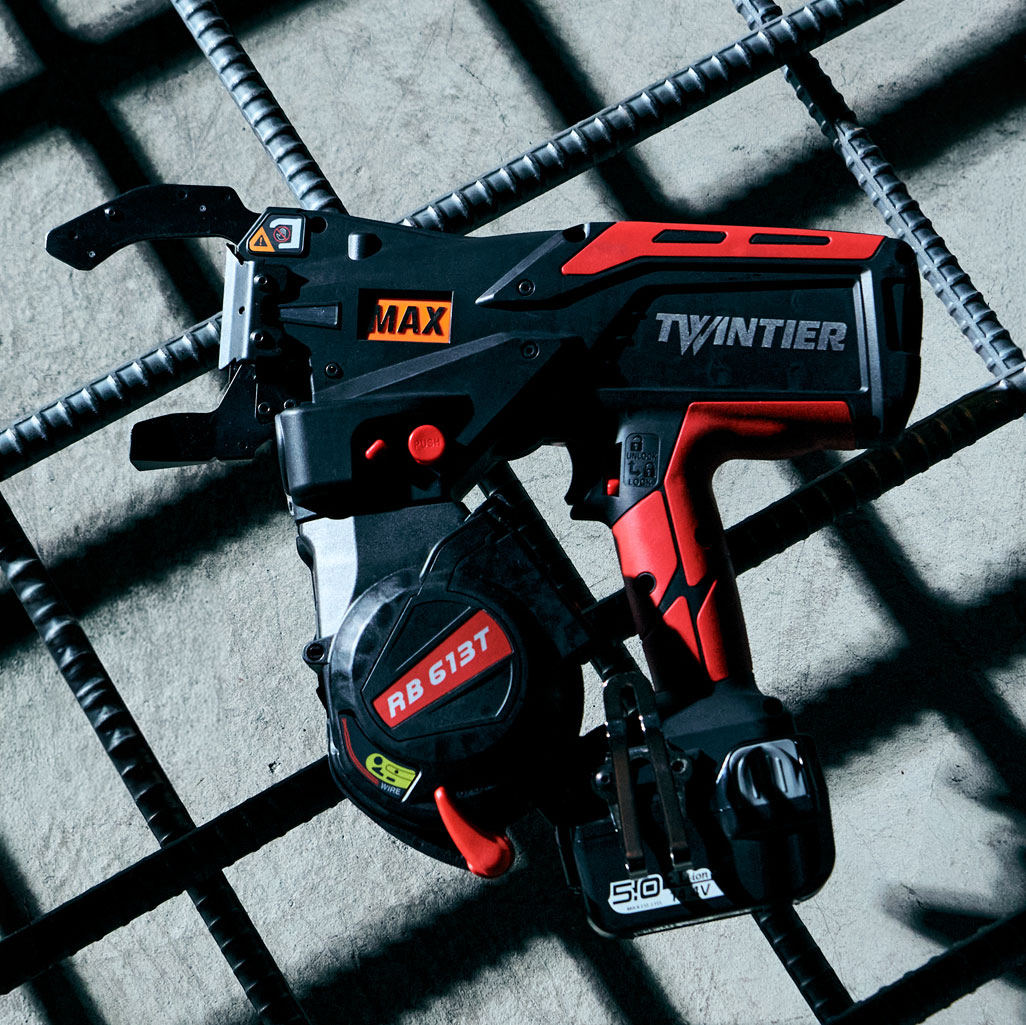

RB613T
Rebar Tying Tool to 32mm x 29mm with 1.0 mm wire
RB613T "TWINTIER" is Max rebar tying tool, rebar tie gun for larger rebar combination up to 38mm x 16mm x 16mm, the most advanced cordless Re-bar tying machine.
Contact Us
Quick Quotation

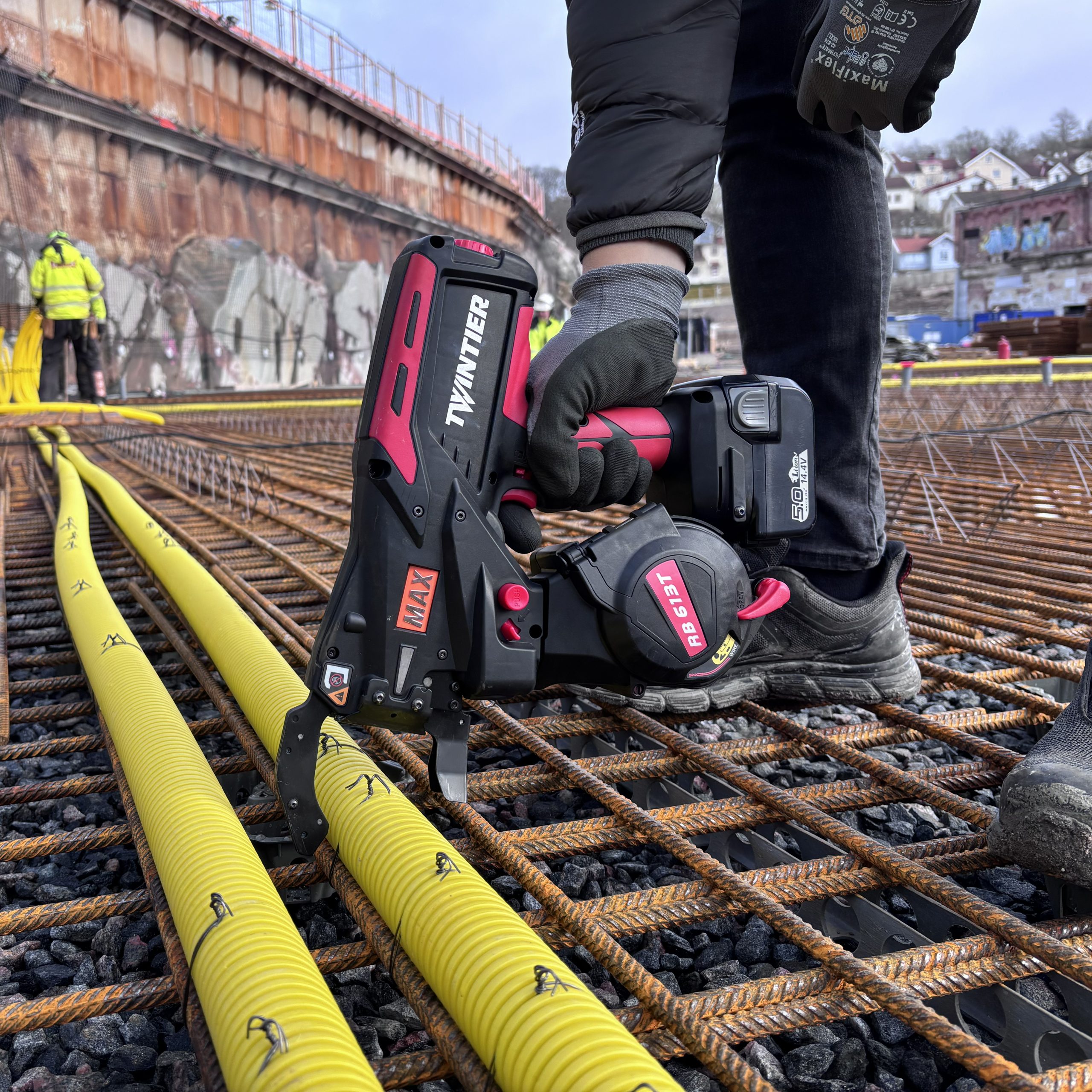

Applications
- Precast Plants
- Road and Bridge
- Floor heating
- Building floor
Features

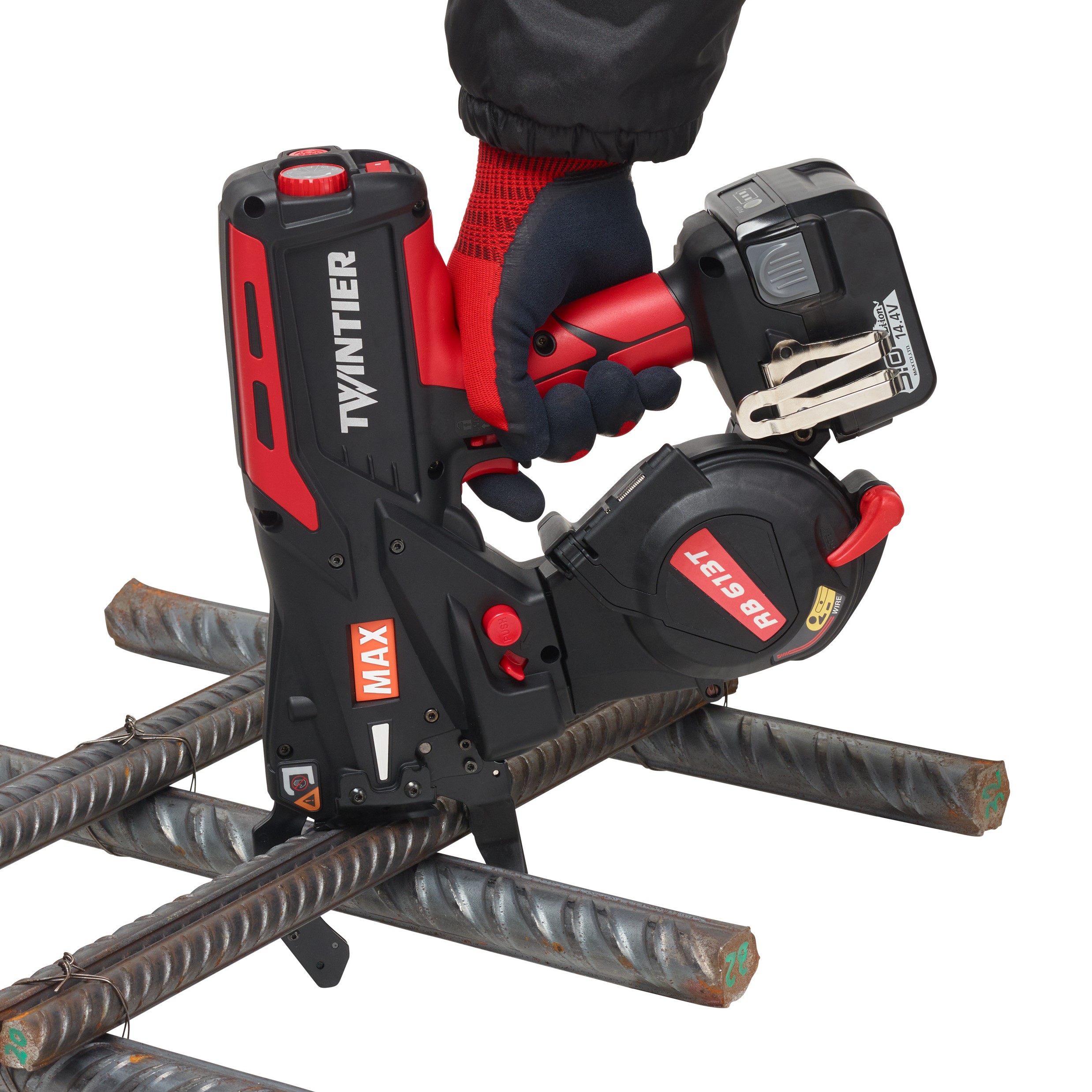

- Large Jaw Capacity
The large jaw design ties rebar combinations up to 32 mm × 29 mm, making the RB613T suitable for a wide range of reinforcing applications. - High-Capacity Performance
The MAX RB613T TWINTIER delivers up to 5,000 ties per battery charge and approximately 140–205 ties per wire coil (based on 13 mm × 13 mm rebar), reducing downtime caused by battery charging and wire replacement. - Lower Operating Costs
Fast tying speed and consistent performance help reduce labor time, improve productivity, and lower the overall cost of rebar installation. - Shorter Tie Height
The patented Wire Bending Mechanism creates a shorter tie height, allowing concrete to fully cover the wire tie while helping maintain proper reinforcement protection. - Slim Arm Design
The slim arm fits easily into congested reinforcement at a 45-degree angle, allowing easier access and secure tying in tight spaces. - NEW: Wire Load Assist
The Wire Load Assist system allows operators to replace tie wire without pressing the release button, making wire changes faster while reducing the risk of incorrect loading.
Specifications
WEIGHT | 2.5 kg |
|---|---|
DIMENSIONS | 295mm(H) x 120mm(W) x 360mm(L) |
MINIMUM TIES PER COIL | 140 |
MAXIMUM TIES PER COIL | 205 |

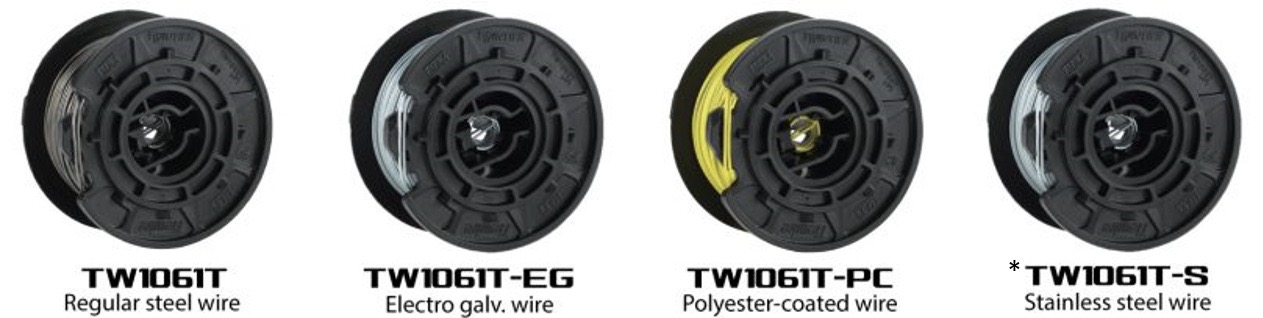

APPLICABLE WIRE PRODUCT/GA | TW1061T / 19Ga, TW1061T-PC / 19Ga, TW1061T-EG / 19Ga, TW1061T-S / 19Ga |
APPLICABLE REBAR SIZE | 16 x 16 - 32 x 29, up to 38 x 16 x 16, 25 x 25 x 16 x 16(Unit: mm) |
TIES PER CHARGE | 5000 |
TIE SPEED | 0.6 sec |
TIE WRAPS | 1 wrap with double wire |
BATTERY CHARGE TIME | 80% charge in 60 minutes, 100% fully charge 80 minuets |
BATTERY | JPL91440A x 2 pieces |
CHARGER | JC925A x 1 piece |
Consumables / Accessories
Tool, Owners manual, Battery, Charger, Belt hook, Carry case, Belt hook
Manuals
Owner's Manual
Download
