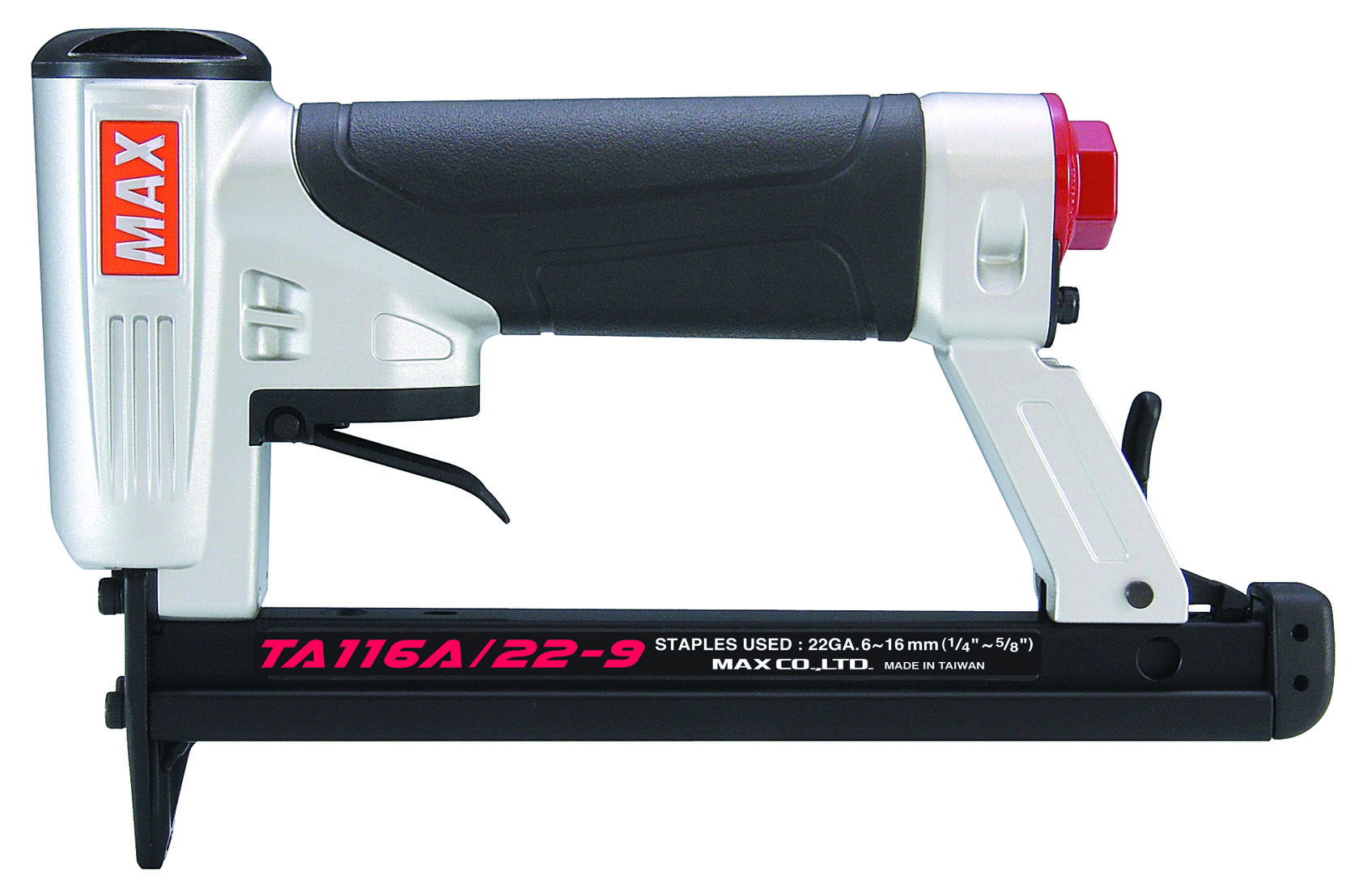

TA116A/22-9

22ga Fine Wire Stapler up to 16mm

The MAX TA116/22-9 is a top of the line professional grade pneumatic fine wire stapler. The TA116/22-9 can be used for interior decorative finishes, automotive vinyl, interior trim, light cabinet and furniture assembly, carpet and padding installation, and for fastening furniture upholstery.

Inquiry Product Registration

Applications

  • Furniture/ cabinet assembly
  • Interior decoration
  • Automotive vinyl
  • Interior trim

Features

  • Rapid Fire trigger allows for high-speed fastening. Shoot up to 15 nails per second.
  • Rear exhaust design deflects air from the user's face.
  • Uses same fasteners as BEA 71.
  • Ultra-lightweight at 2.2 lbs.
  • Comfortable rubber grip for ease of use.
  • Slim body to easily fit into tight spaces.

Specifications

WEIGHT
1 kg
DIMENSIONS

152mm(H) x 48mm(W) x 237mm(L)

MINIMUM OPERATION PRESSURE
5 bar
MAXIMUM OPERATION PRESSURE
8 bar
AIR INLET SIZE
1/4"
MAGAZINE CAPACITY
180
DEPTH CONTROL
No
JAM CLEARING
No

TRIGGER TYPE

Rapid Fire Trigger

AIR CONSUMPTION
(FT3/CYCLE)
0.011
ACCESSORIES
Safety glasses

Fasteners

COLLATION TYPE
Glue
NAIL GUN ANGLE

Straight

STRIP OR COIL
Strip
COMPATIBLE FASTENER TYPES
Fine staple
MINIMUM FASTENER SIZE
6
MAXIMUM FASTENER SIZE
16

Manuals

Owner's Manual

Download

Documents

Parts List

Download

Schematic

Download
