SN890CH2/34

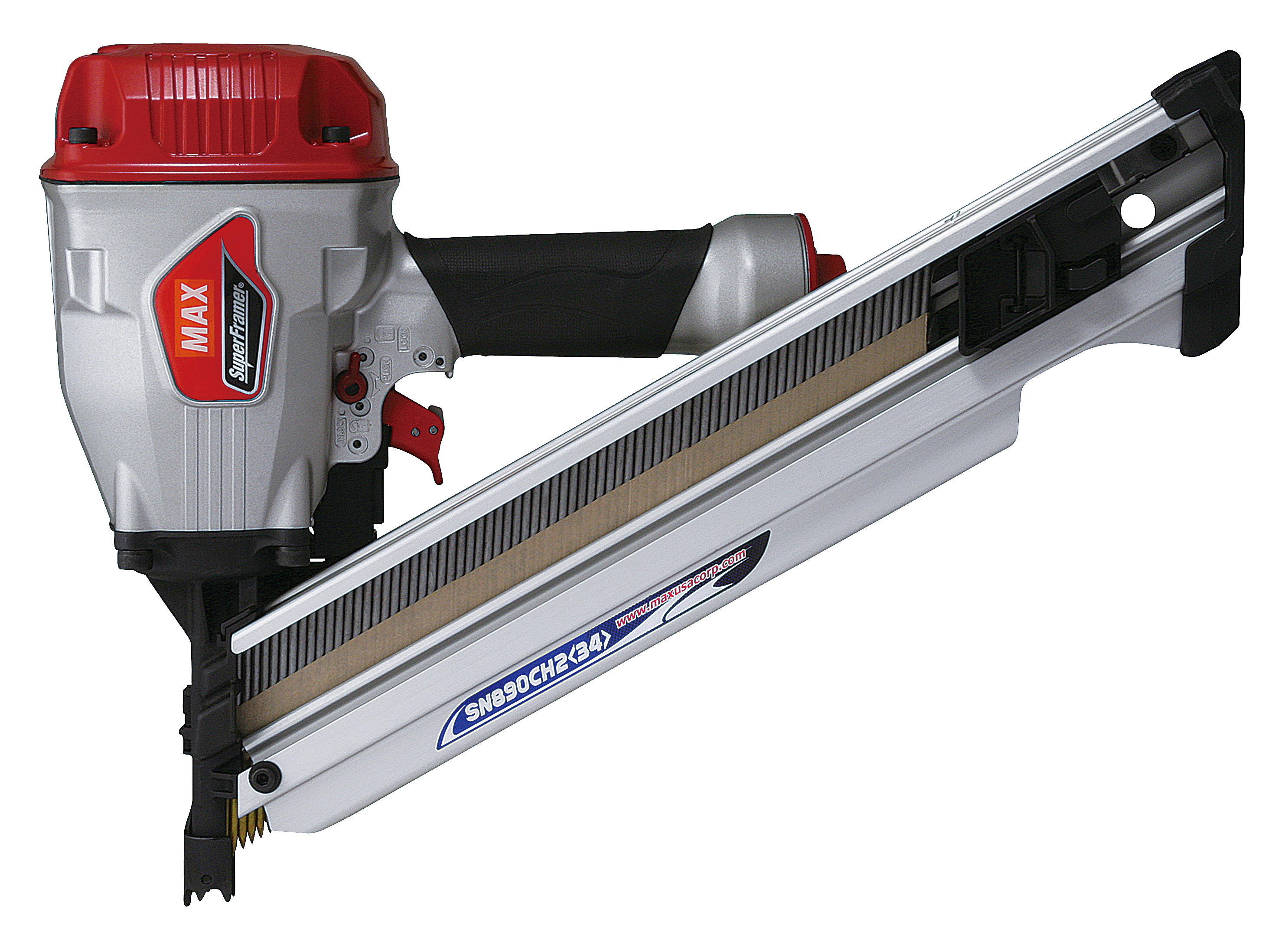

34 Degree Framing Offset/Clipped Head Stick Nailer up to 90mm
The MAX SN890CH2/34 SuperFramer is a top of the line 34 degree professional grade pneumatic clipped head framing nailer. The SN890CH2/34 can be used for framing application.
Applications
- Framing
Features
- Includes 2 triggers. Factory installed sequential trigger and a contact fire trigger
- No special tool is required to switch the triggers.
- Patented maintenance free end cap filter prevents foreign substances from entering the tool.
- The filter has a self-cleaning feature; Foreign substances are automatically ejected from the tool when the air hose is disconnected.
- Dial adjustable depth control allows depth adjustment with no special tool.
- Pointy teeth on contact arm allows the user to get a firm grip when toe-nailing.
- Open nose for easy jam clearance.
- Compact design less than 316mm in height
Specifications
|
WEIGHT
|
3.3 kg |
|---|---|
|
DIMENSIONS
|
316mm(H) x 121mm(W) x 435mm(L) |
MINIMUM OPERATION PRESSURE | 5 bar |
MAXIMUM OPERATION PRESSURE | 8 bar |
MAGAZINE CAPACITY | 90 |
DEPTH CONTROL | Yes |
JAM CLEARING | No |
TRIGGER TYPE | Selective Action Trigger (Sequential/ Rapid) |
ACCESSORIES | Safety glasses |
Fasteners
COLLATION TYPE | Paper |
|---|---|
NAIL GUN ANGLE | 34 |
STRIP OR COIL | Strip |
COMPATIBLE FASTENER TYPES | Offset head/clipped head Offset head/clipped head stick nails |
MINIMUM FASTENER SIZE | 50 |
MAXIMUM FASTENER SIZE | 90 |
MINIMUM NAIL DIAMETER | 2.8 |
MAXIMUM NAIL DIAMETER | 3.3 |
