NF665A/15

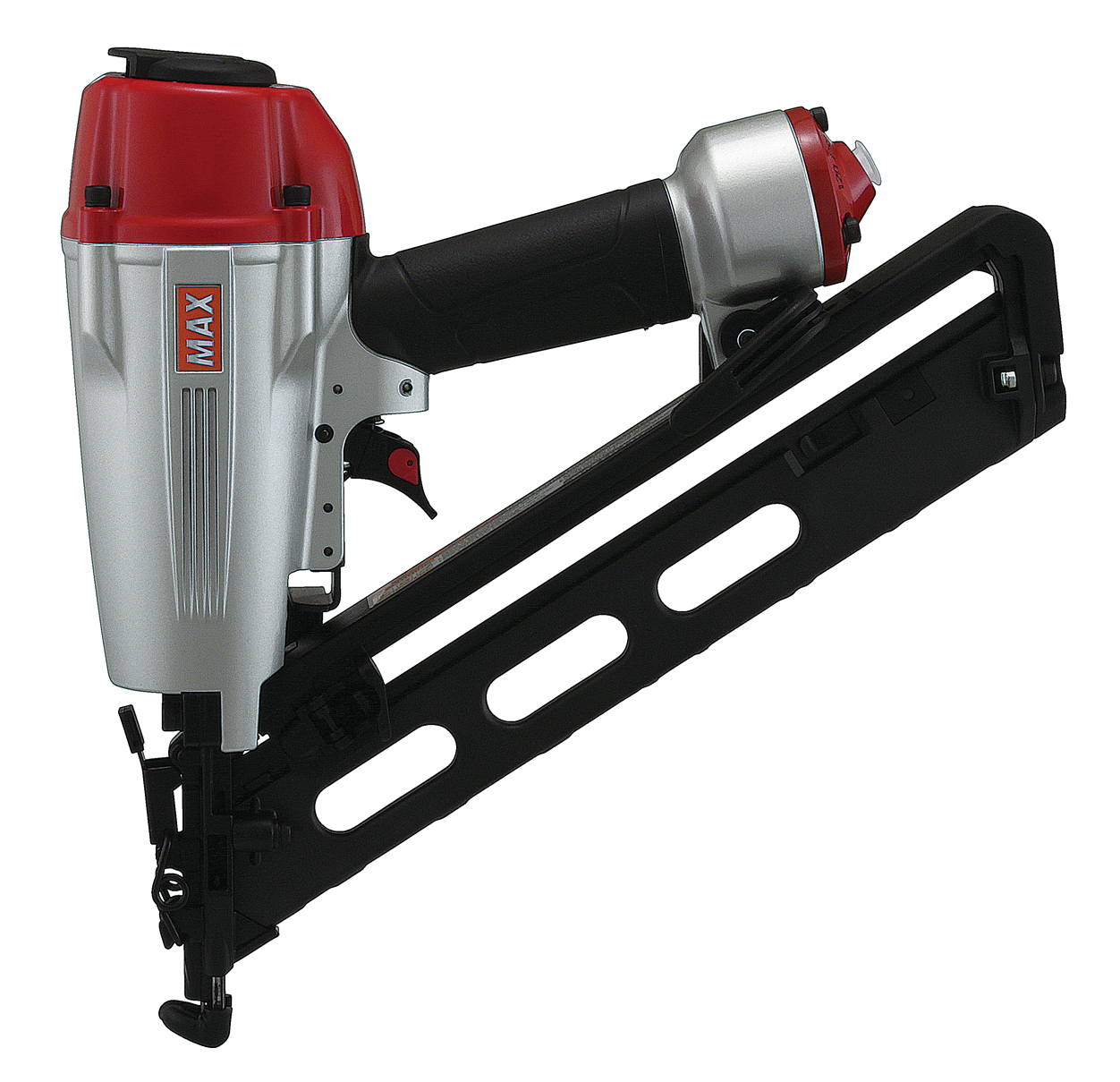

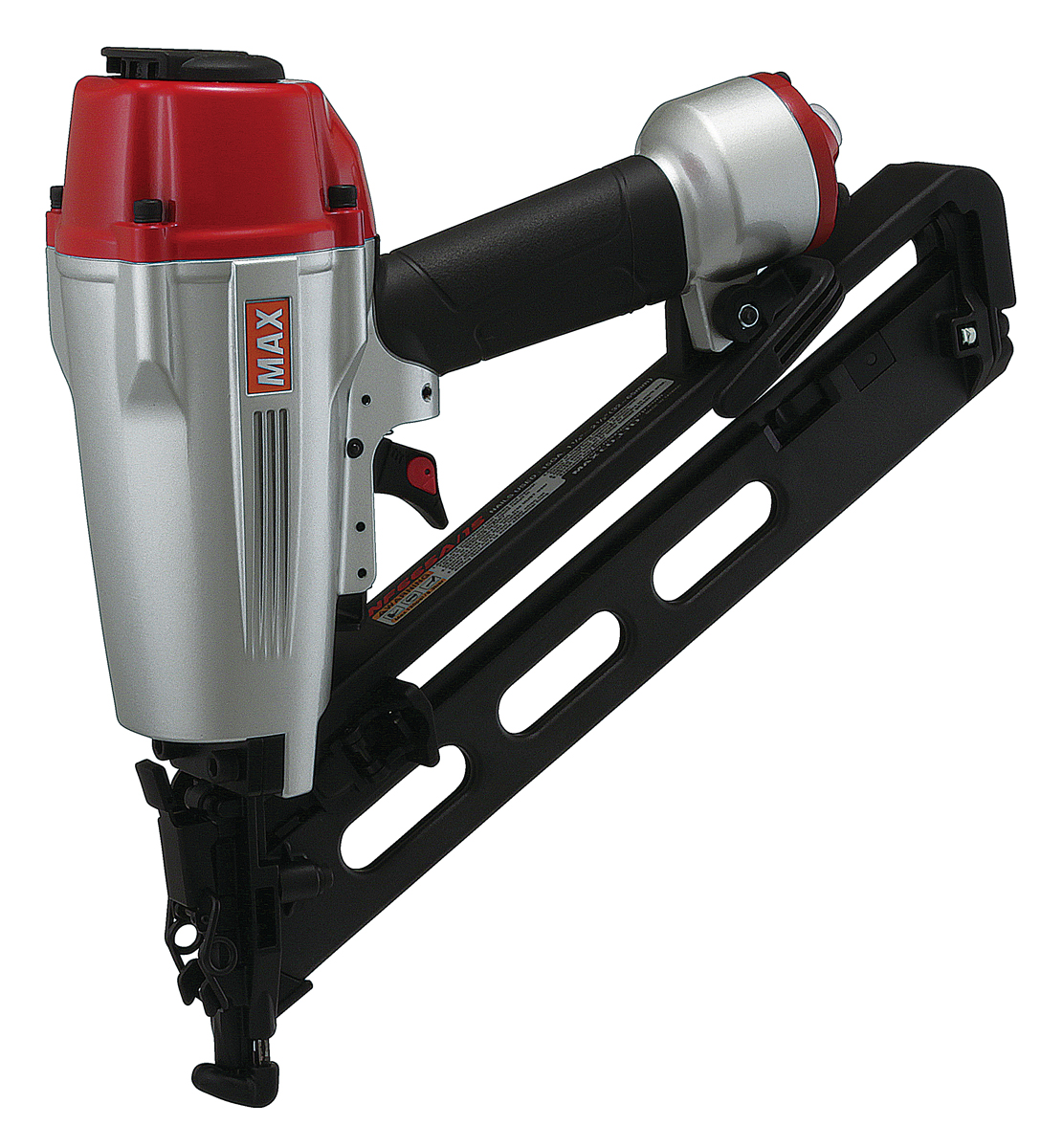

15ga Angled Finish Nailer up to 65mm

The MAX NF665A/15 is a top of the line 15 gauge professional grade pneumatic finish nailer. The NF665A/15 can be used for fastening door and wood casings, moldings, plywood decorative boards and other interior finish work, and furniture and panel assembly. This angled finish nailer is equipped with a belt hook for easy hanging of the tool when it's not being used.

Inquiry Product Registration

Applications

  • Finish & trim
  • Door/ window casing
  • Cabinets
  • Panel assembly
  • Subflooring

Features

  • Switchable fire mechanism means the tool can move between contact fire and single fire mode with the simple switch of a lever.
  • The 360 degree rotating exhaust deflector allows users to divert exhaust air away from their face.
  • Most powerful finish nailer in its class. At only 1.8kg. the slim body easily fits into tight spaces.
  • Dial adjustable depth control allows depth adjustment with no special tool.
  • Easy jam clearance system.
  • Belt hook installed to easily hang the tool when it's not in use.

Specifications

WEIGHT
1.8 kg
DIMENSIONS

322mm(H) x 94mm(W) x 322mm(L)

MINIMUM OPERATION PRESSURE
5 bar
MAXIMUM OPERATION PRESSURE
8 bar
AIR INLET SIZE
1/4"
MAGAZINE CAPACITY
100
DEPTH CONTROL
Yes
JAM CLEARING
Yes

TRIGGER TYPE

Switchable Fire Trigger

AIR CONSUMPTION
(FT3/CYCLE)
0.042
ACCESSORIES
Safety glasses, Carry case

Fasteners

COLLATION TYPE
Glue
NAIL GUN ANGLE

Angled

STRIP OR COIL
Strip
COMPATIBLE FASTENER TYPES
34 degree Angled finish nails
MINIMUM FASTENER SIZE
32
MAXIMUM FASTENER SIZE
65
