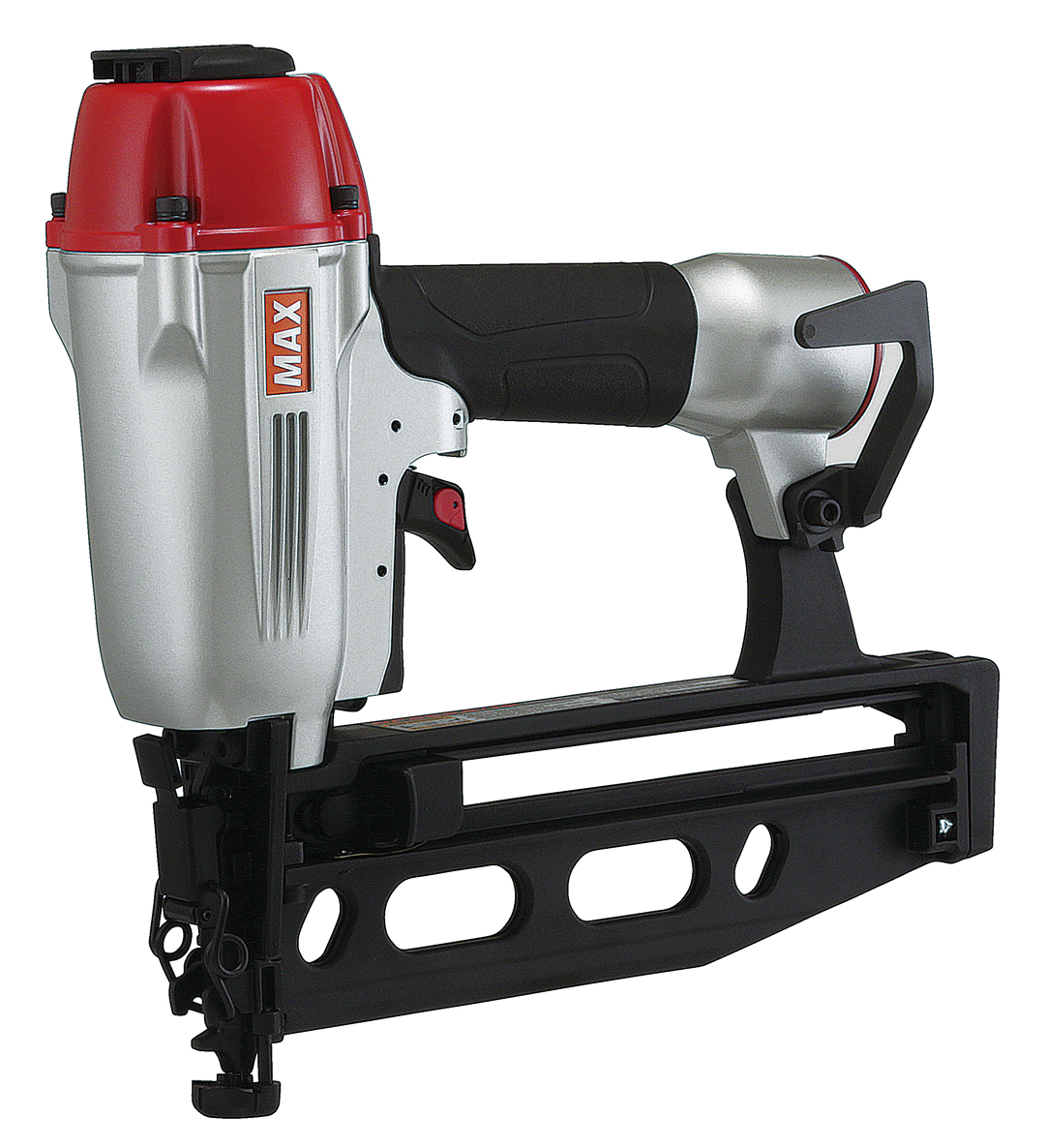

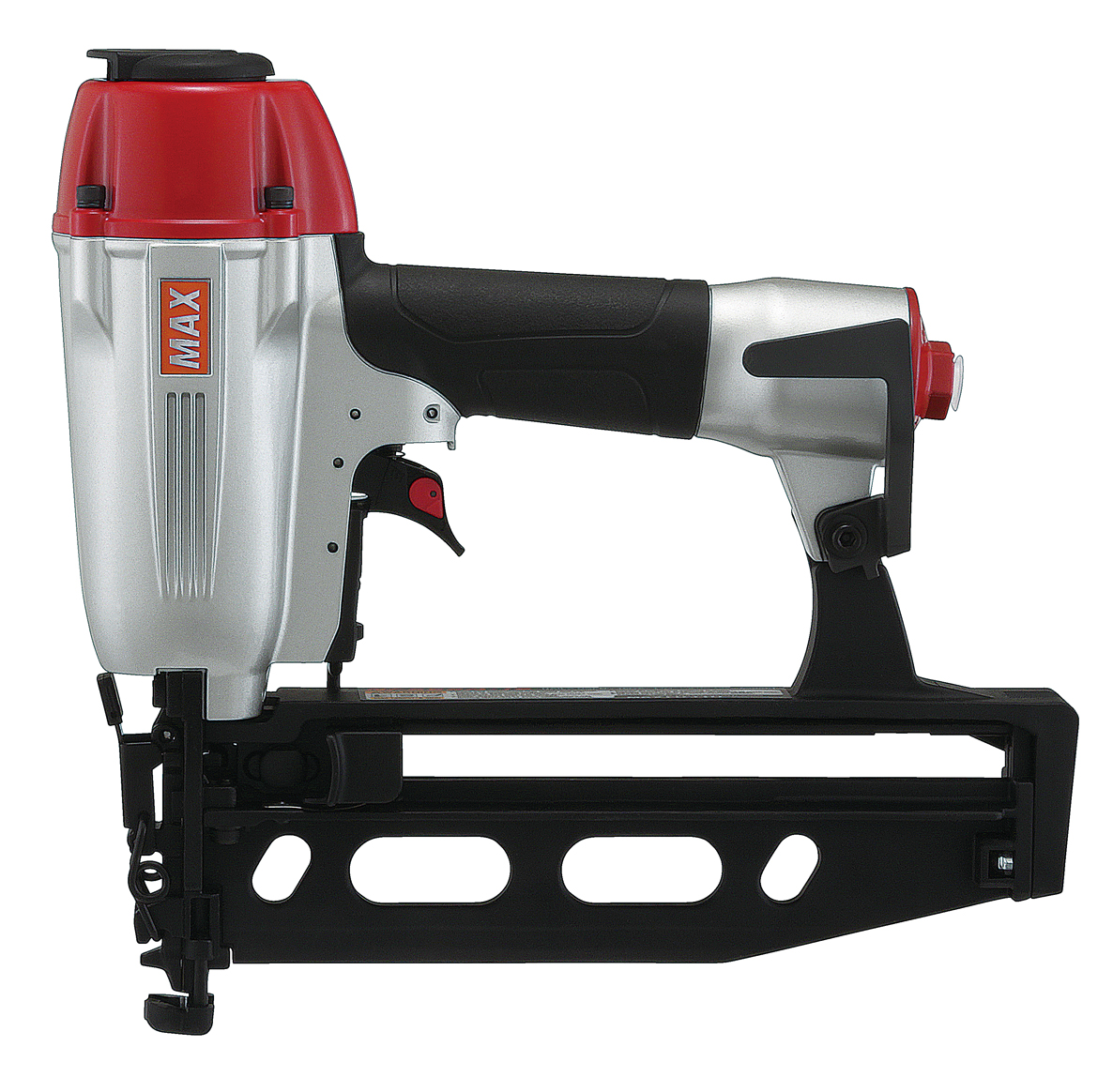

NF565A/16
16ga Straight Finish Nailer up to 65mm
The MAX NF565A/16 is a top of the line 16 gauge professional grade pneumatic finish nailer. The NF565A/16 can be used for fastening door and wood casings, moldings, plywood decorative boards and other interior finish work, and furniture and panel assembly. This straight finish nailer is equipped with a belt hook for easy hanging of the tool when it's not being used.
Applications
- Finish & trim
- Door/ window casing
- Cabinets
- Panel assembly
- Exterior trim
- Subflooring
Features
- Switchable fire mechanism means the tool can move between contact fire and single fire mode with the simple switch of a lever.
- The 360 degree rotating exhaust deflector allows users to divert exhaust air away from their face.
- Most powerful finish nailer in its class. At only 3.5 lbs. the slim body easily fits into tight spaces.
- Dial adjustable depth control allows depth adjustment with no special tool.
- Easy jam clearance system.
- Belt hook installed to easily hang the tool when it's not in use.
Specifications
|
WEIGHT
|
1.6 kg |
|---|---|
|
DIMENSIONS
|
285mm(H) x 96mm(W) x 297mm(L) |
MINIMUM OPERATION PRESSURE | 5 bar |
MAXIMUM OPERATION PRESSURE | 8 bar |
AIR INLET SIZE | 1/4" |
MAGAZINE CAPACITY | 100 |
DEPTH CONTROL | Yes |
JAM CLEARING | Yes |
TRIGGER TYPE | Switchable Fire Trigger |
AIR CONSUMPTION (FT3/CYCLE) | 0.032 |
ACCESSORIES | Safety glasses, Carry case |
Fasteners
COLLATION TYPE | Glue |
|---|---|
NAIL GUN ANGLE | Straight |
STRIP OR COIL | Strip |
COMPATIBLE FASTENER TYPES | Straight finish nails |
MINIMUM FASTENER SIZE | 32 |
MAXIMUM FASTENER SIZE | 65 |
