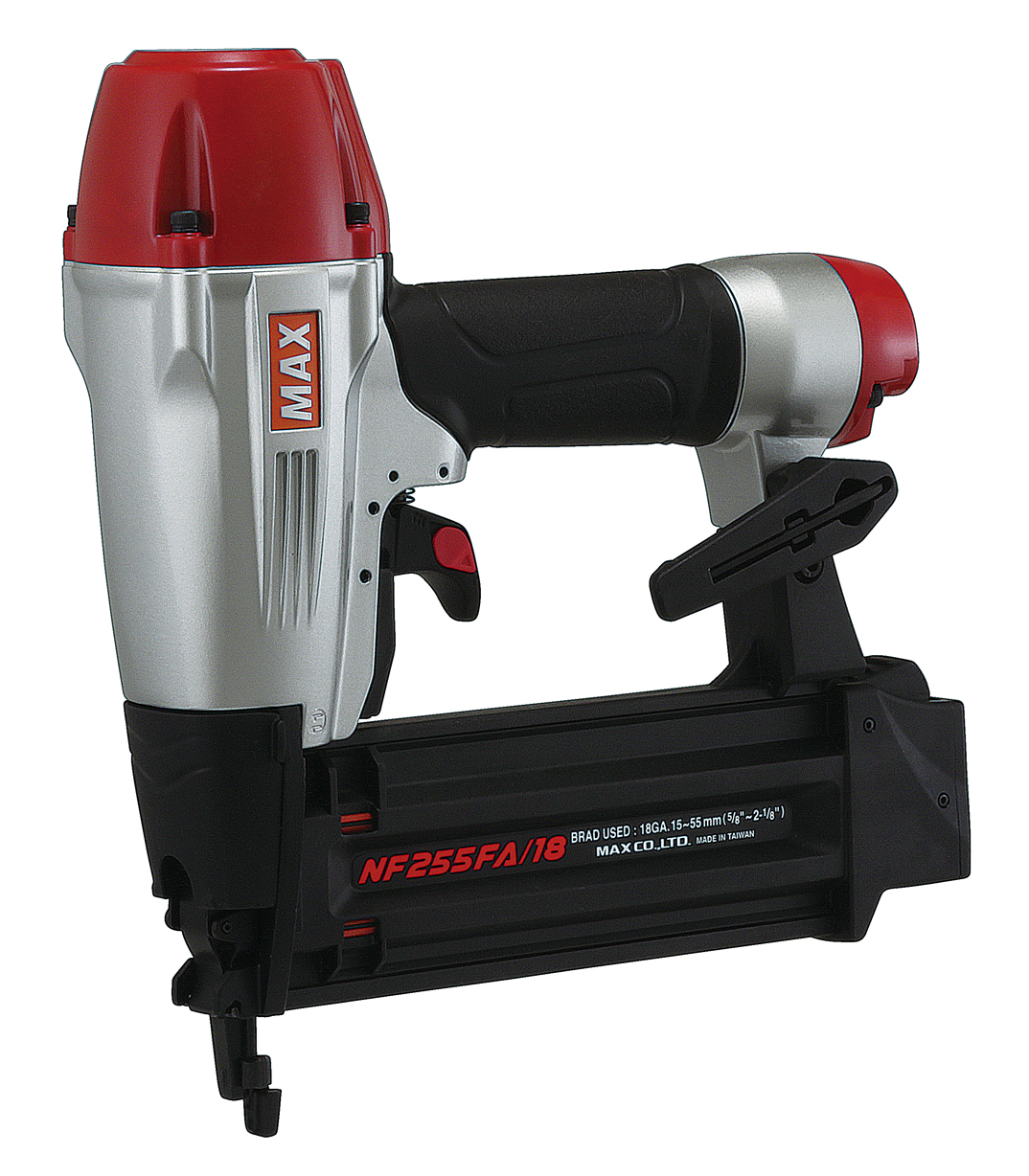

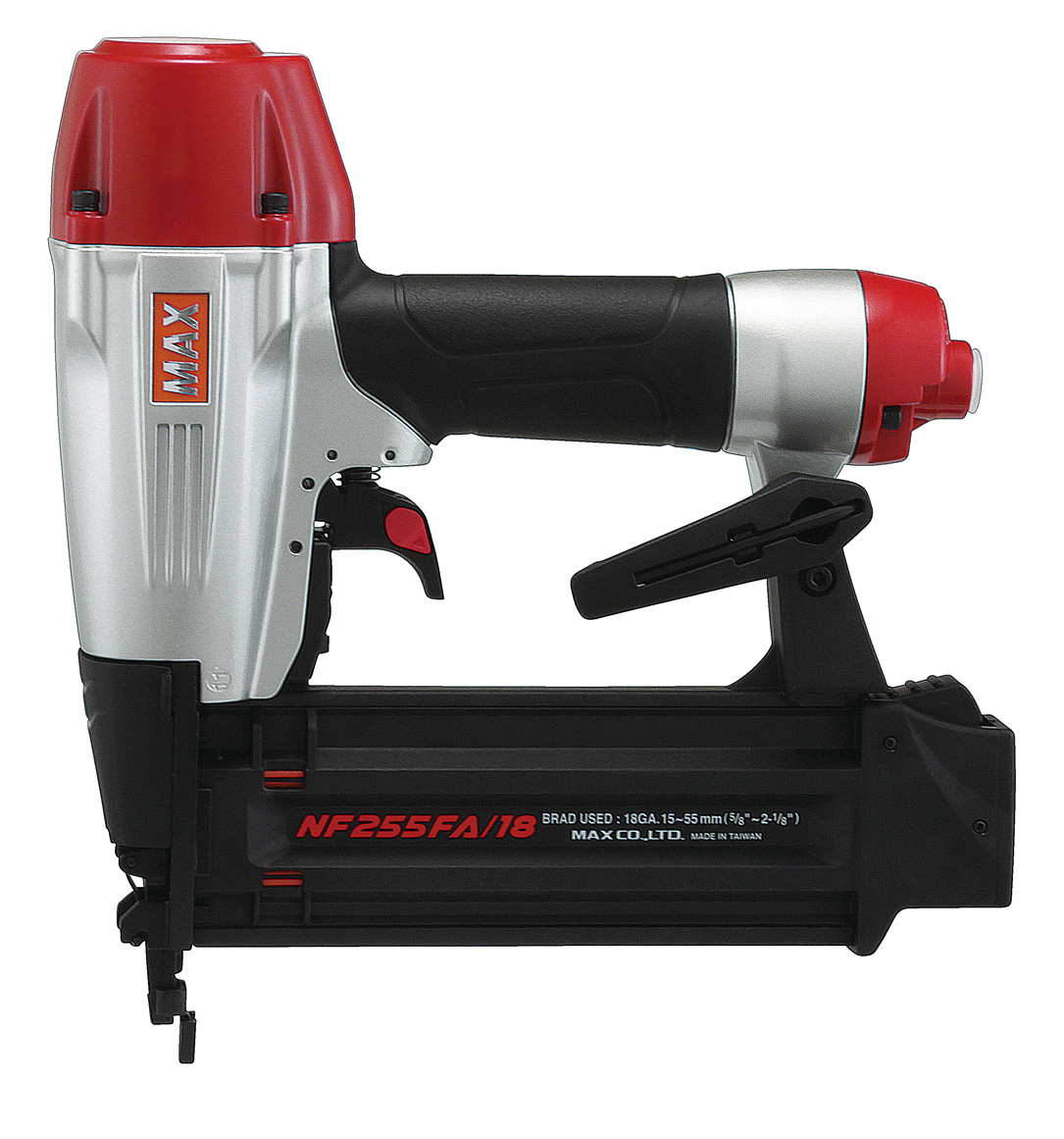

NF255FA/18
18ga Brad Nailer up to 55mm

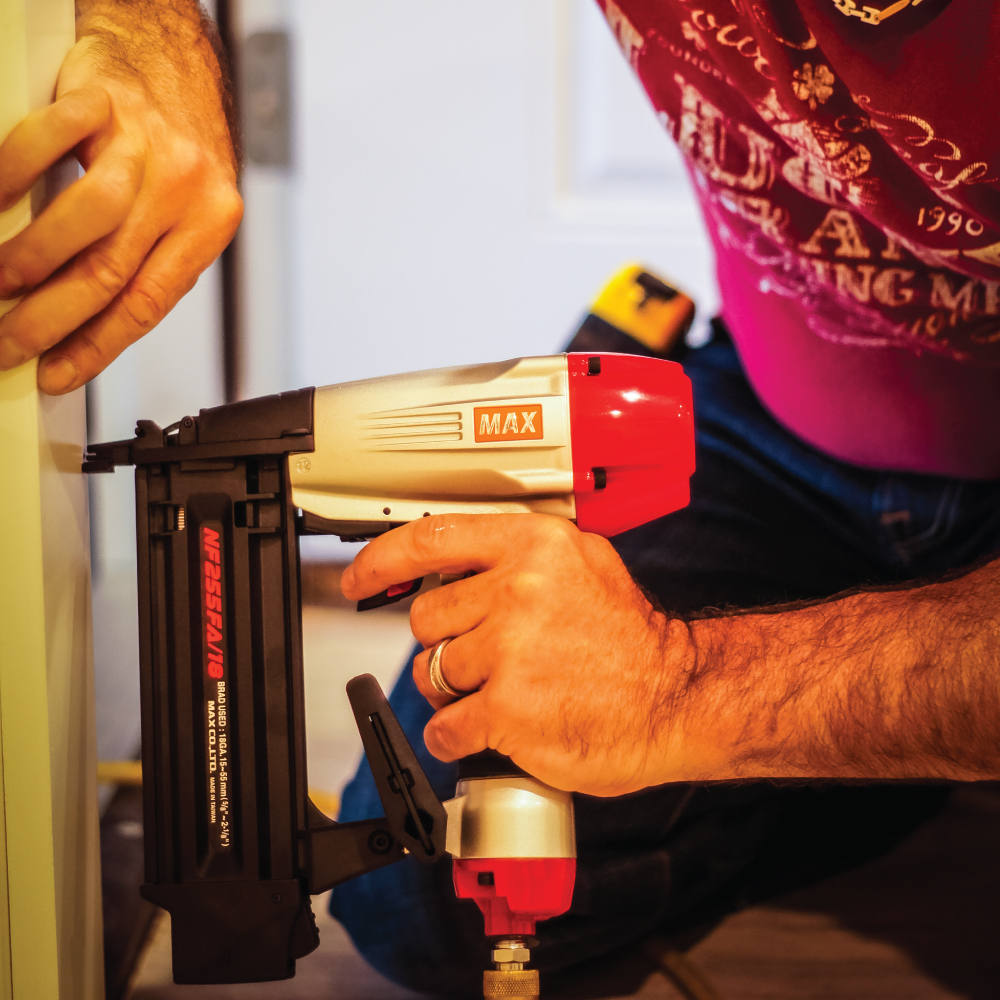

The MAX NF255FA/18 is a top of the line 18 gauge professional grade pneumatic brad nailer. The NF255FA can be used for fastening door and wood casings, panel assembly, moldings, subflooring, cabinet assembly, blind pinning and other finish work. This brad nailer is equipped with a belt hook for easy hanging of the tool when it's not being used.
Applications
- Finish & trim
- Door/ window casing
- Cabinets
- Panel assembly
- Subflooring
Features
- Switchable fire mechanism means the tool can move between contact fire and single fire mode with the simple switch of a lever.
- Nail indicator on the magazine shows when nail level is low.
- No mar contact tip.
- Easy jam clearance system.
- Lightweight. Only 2.7 lbs.
- Belt hook installed to easily hang the tool when it's not in use.
Specifications
|
WEIGHT
|
1.2 kg |
|---|---|
|
DIMENSIONS
|
255mm(H) x 64mm(W) x 244mm(L) |
MINIMUM OPERATION PRESSURE | 5 bar |
MAXIMUM OPERATION PRESSURE | 8 bar |
AIR INLET SIZE | 1/4" |
MAGAZINE CAPACITY | 100 |
DEPTH CONTROL | Yes |
JAM CLEARING | Yes |
TRIGGER TYPE | Switchable Fire Trigger |
AIR CONSUMPTION (FT3/CYCLE) | 0.024 |
ACCESSORIES | Safety glasses, Carry case |
Fasteners
COLLATION TYPE | Glue |
|---|---|
NAIL GUN ANGLE | Straight |
STRIP OR COIL | Strip |
COMPATIBLE FASTENER TYPES | Brad nails |
MINIMUM FASTENER SIZE | 15 |
MAXIMUM FASTENER SIZE | 55 |
