HVR41G4
PowerLite High Pressure
41mm tubo screw driver

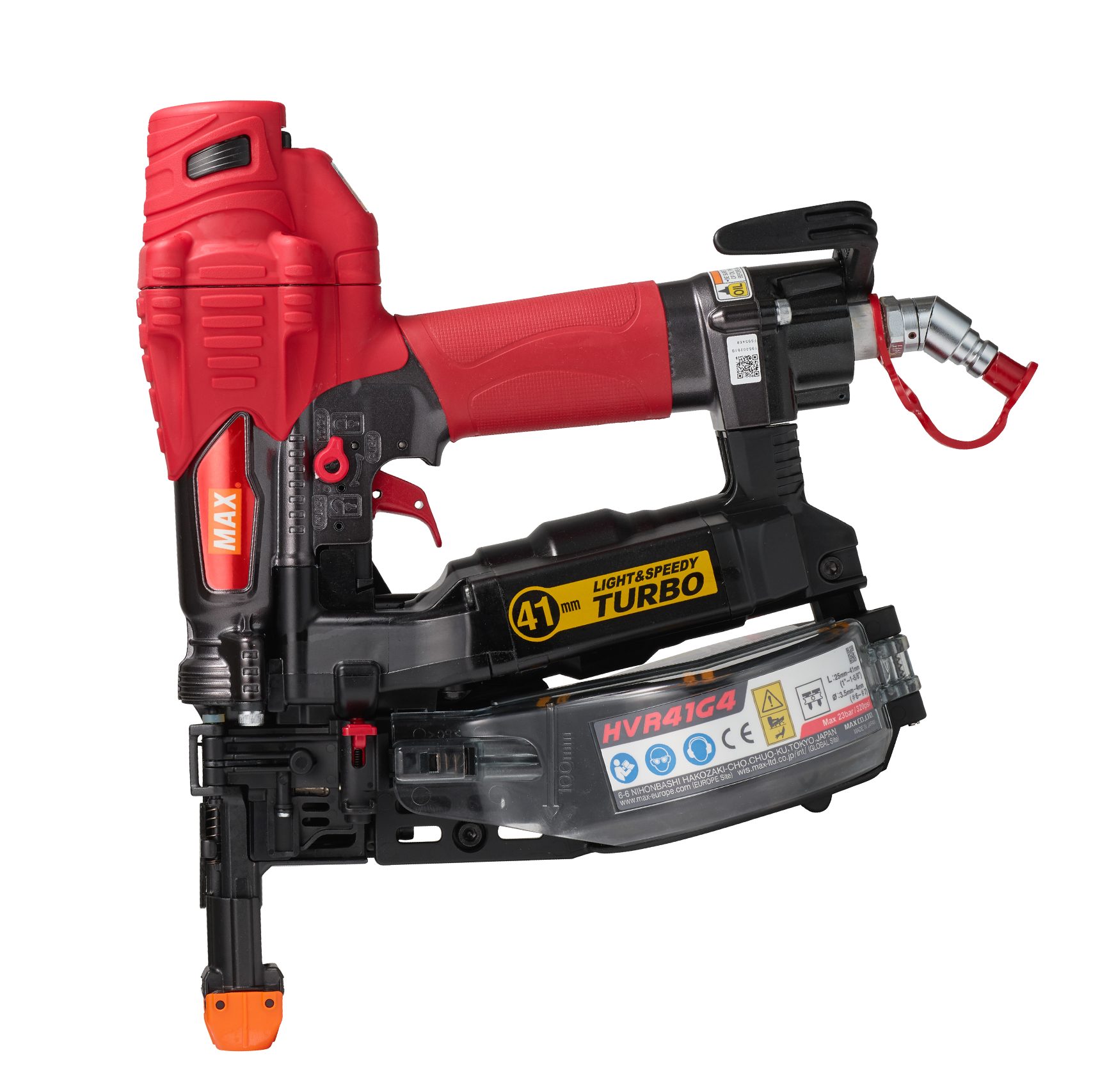

The MAX HVR41G4 is a top of the line professional grade pneumatic turbo screw driver powered by MAX's Powerlite compressor. The HVR41G4 can shoot up to 41mm screw. HVR41G4 has original fastening mechanism that combines hitting and screwing to make screwing precess quicker.
Applications
- Drywall
Features
- Ultra quick screwing within 0.06 sec
- It can screw metal stud and wooden structure by adjusting a lever
- It has a "toe screwing moed" allows screw to get into drywall at an angle.
Specifications
WEIGHT
|
1.9 kg |
---|---|
DIMENSIONS
|
312mm(H) x 116mm(W) x 300mm(L) |
MINIMUM OPERATION PRESSURE | 18 bar |
MAXIMUM OPERATION PRESSURE | 24 bar |
MAGAZINE CAPACITY | 100 screws |
DEPTH CONTROL | Yes |
JAM CLEARING | No |
TRIGGER TYPE | Sequential Fire Trigger |
ACCESSORIES | Safety glasses, Carry case |
Fasteners
COLLATION TYPE | Plastic sheet collated screw |
---|---|
NAIL GUN ANGLE | Straight |
STRIP OR COIL | Coil |
COMPATIBLE FASTENER TYPES | Screw |
MINIMUM FASTENER SIZE | 25 |
MAXIMUM FASTENER SIZE | 41 |
Manuals
Owner's Manual
Download
