HS130
PowerLite High Pressure
21 Degree Framing Full Round Head Stick Nailer up to 130mm

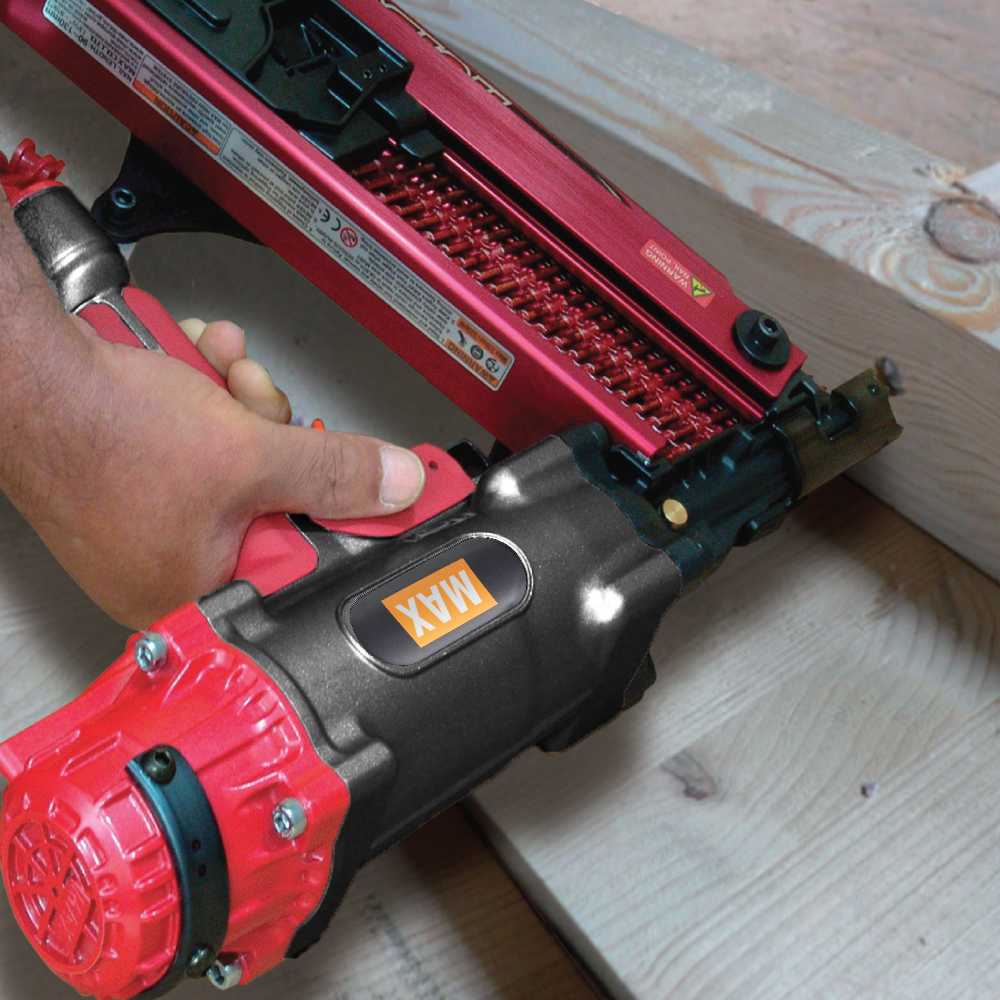

The MAX HS130 is a top of the line professional grade pneumatic stick nailer powered by MAX's Powerlite compressor. The HS130 can shoot up to 130mm nail. This handy monster framer can be used for roofing, floor and wall framing, and truss framing.
Applications
- Pole barn construction
- Heavy duty crating
- Framing
Features
- Ultra powerful with light weight 4.3kg
- Nose magnet holds last nail in place to prevent jamming.
- Low recoil.
- Pointy teeth on the contact arm allows the user get a firm grip when toe-nailing.
- Open nose for easy jam clearance.
- Trigger lock to prevent accidental firing of the tool
Specifications
|
WEIGHT
|
4.3 kg |
|---|---|
|
DIMENSIONS
|
427mm(H) x 85mm(W) x 565mm(L) |
MINIMUM OPERATION PRESSURE | 17 bar |
MAXIMUM OPERATION PRESSURE | 24 bar |
AIR INLET SIZE | 7/16" |
MAGAZINE CAPACITY | 64 nails |
DEPTH CONTROL | No |
JAM CLEARING | No |
TRIGGER TYPE | Sequential Fire Trigger |
ACCESSORIES | Safety glasses |
Fasteners
COLLATION TYPE | Plastic |
|---|---|
NAIL GUN ANGLE | 21 |
STRIP OR COIL | Strip |
COMPATIBLE FASTENER TYPES | Full Round Head stick nails |
MINIMUM FASTENER SIZE | 90 |
MAXIMUM FASTENER SIZE | 130 |
MINIMUM NAIL DIAMETER | 3.1 |
MAXIMUM NAIL DIAMETER | 4.2 |
Manuals
Owner's Manual
Download
