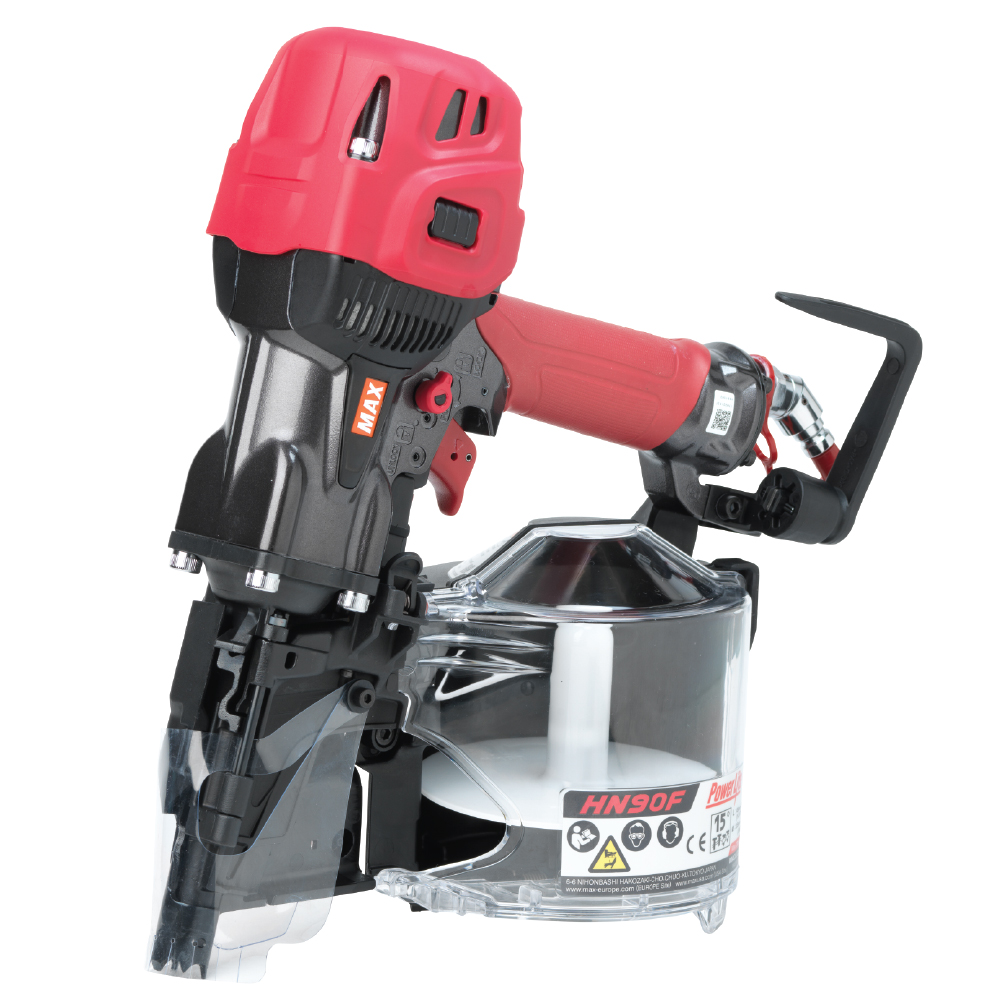

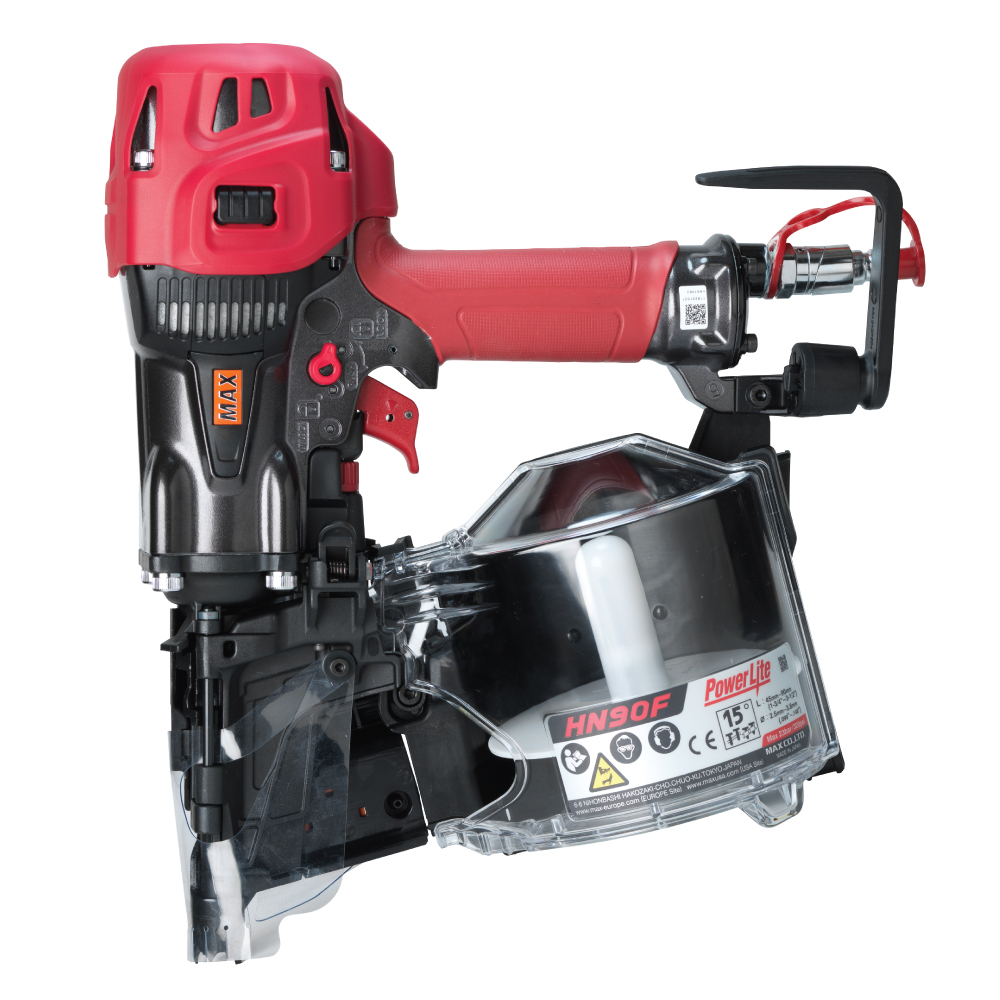

HN90F
PowerLite High Pressure
Framing Coil Nailer up to 90mm
The MAX HN90F is a top of the line professional grade coil framing nailer powered by MAX's Powerlite compressor. The HN90F can be used for framing, sheathing, decking, furring, siding, subflooring, and crate and box assembly. Backed by the power of a 24 bar Powerlite compressor the HN90F can easily drive nails through the toughest wood.
Applications
- Framing
- Sheathing
- Roofing
- Decking
Features
- Patented maintenance free end cap filter prevents foreign substances from entering the tool. The filter has a self-cleaning feature; Foreign substances are automatically ejected from the tool when the air hose is disconnected.
- High power. Has enough power to drive nails through LSL.
- Lightweight- only 2.6kg. Approx. 40% lighter than most competitor's tools without sacrificing power.

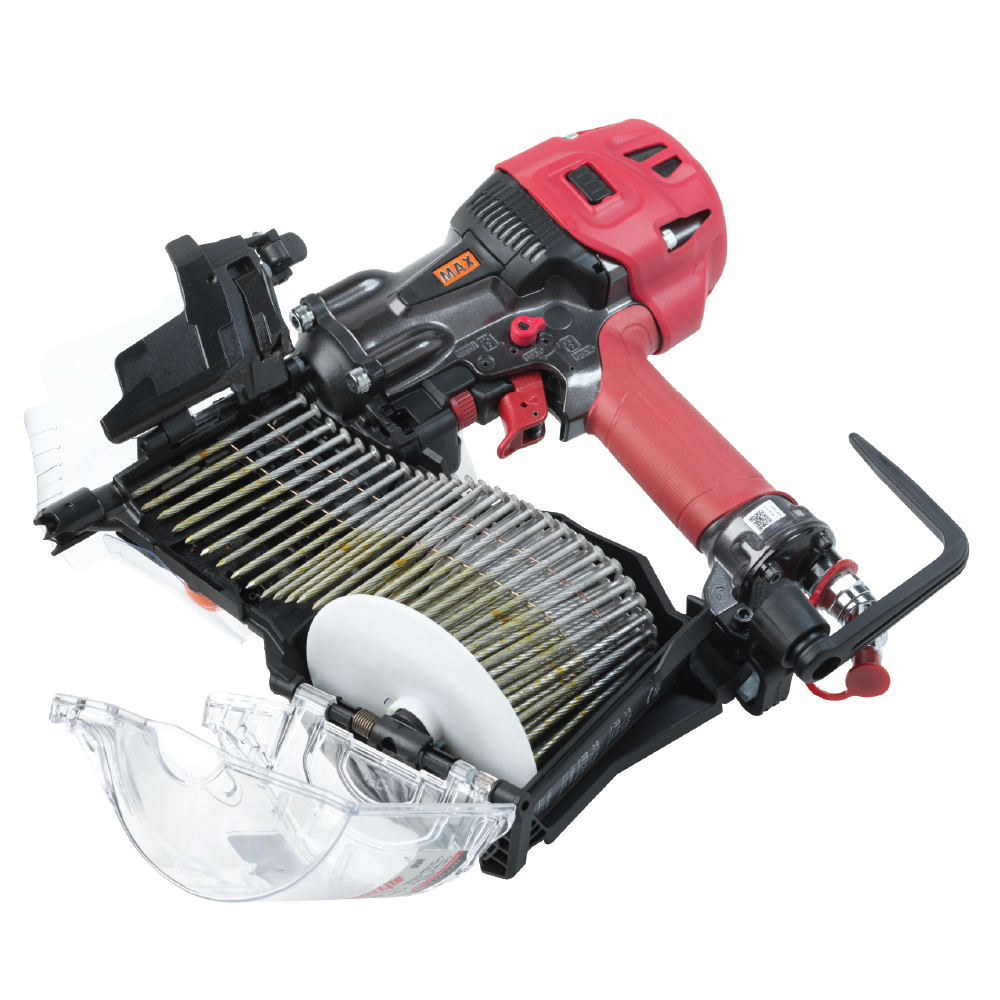

- Load capacity of 300 nails. Shoots up to 90mm nail.
- Compact. 21% smaller than conventional coil framing tools.
- Tangle free swivel plug to alleviate the tangling of the air hose no matter what angle the tool is being held.
Specifications
|
WEIGHT
|
2.6 kg |
|---|---|
|
DIMENSIONS
|
331mm(H) x 126mm(W) x 298mm(L) |
MINIMUM OPERATION PRESSURE | 12 bar |
MAXIMUM OPERATION PRESSURE | 24 bar |
AIR INLET SIZE | 7/16" |
MAGAZINE CAPACITY | 300 nails |
DEPTH CONTROL | Yes |
JAM CLEARING | No |
TRIGGER TYPE | Anti-Double Fire Trigger |
AIR CONSUMPTION (FT3/CYCLE) | 0.12 |
ACCESSORIES | Safety glasses, Carry case |
Fasteners
COLLATION TYPE | Wire, Plastic |
|---|---|
NAIL GUN ANGLE | 15 |
STRIP OR COIL | Coil |
COMPATIBLE FASTENER TYPES | Flat wire welded nails and flat plastic sheet collated nails |
MINIMUM FASTENER SIZE | 45 |
MAXIMUM FASTENER SIZE | 90 |
MINIMUM NAIL DIAMETER | 2.5 |
MAXIMUM NAIL DIAMETER | 2.9 |
Manuals
Owner's Manual
Download
