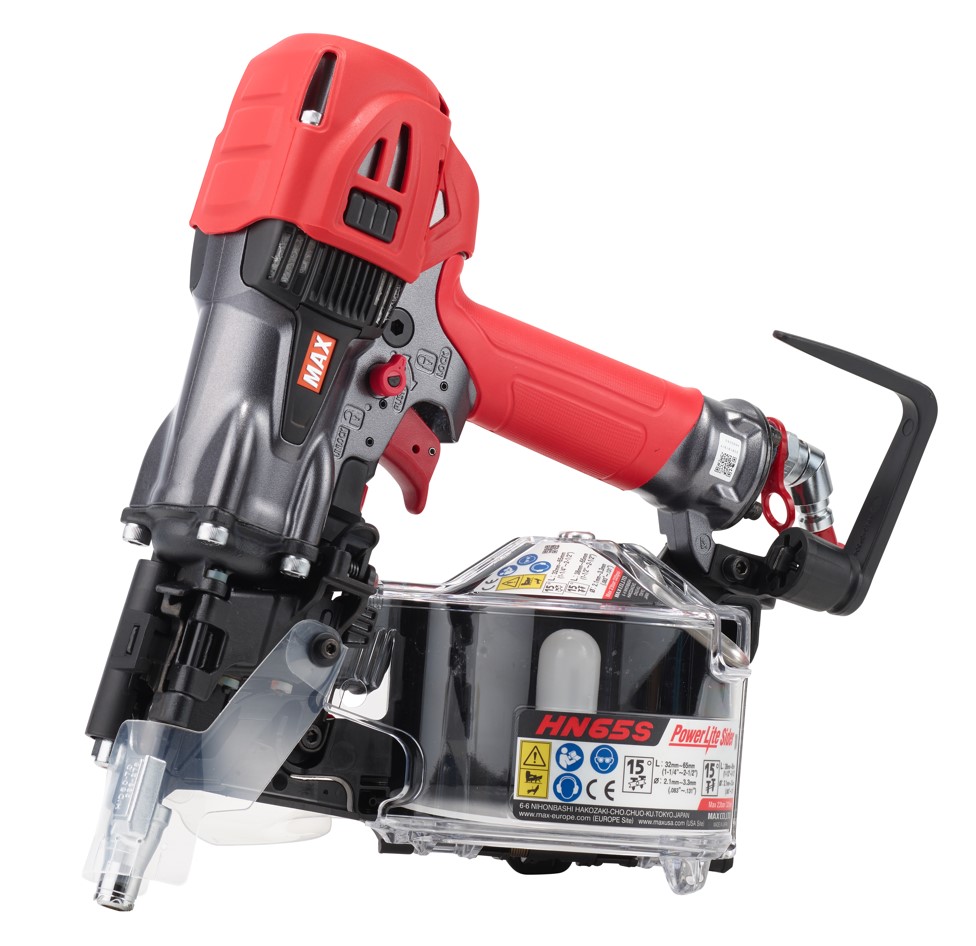

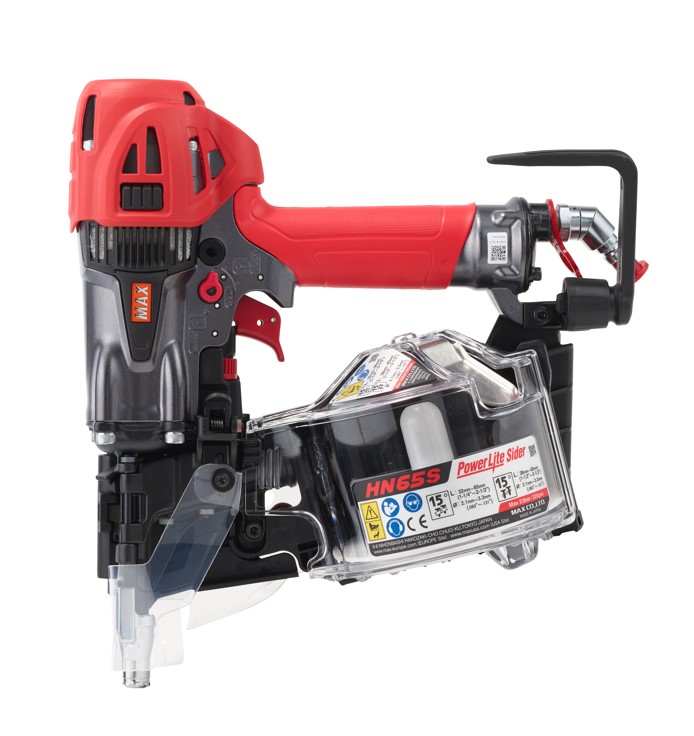

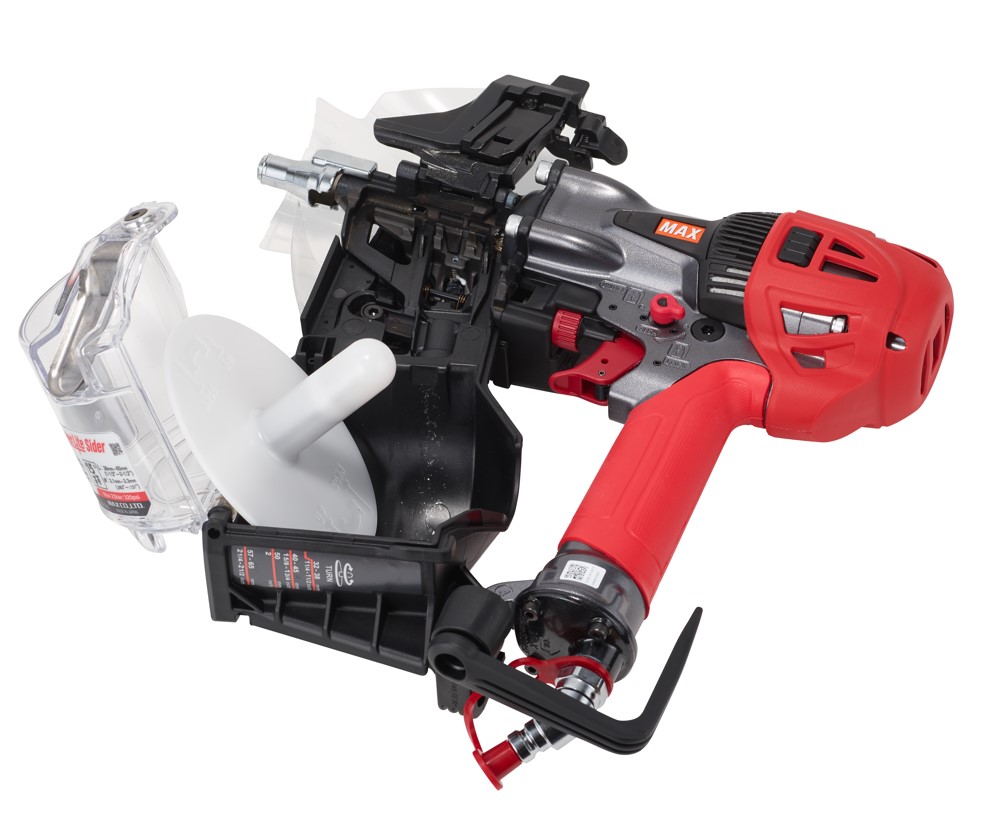

HN65S

PowerLite High Pressure
Siding & Decking Coil Nailer up to 65mm

The MAX HN65S is a top of the line professional grade pneumatic coil siding nailer powered by MAX's Powerlite compressor. The HN65S can be used for siding, exteriors, decking, sheathing and subflooring.

Inquiry Product Registration

Applications

  • Siding
  • Sheathing
  • Subflooring
  • Decking

Features

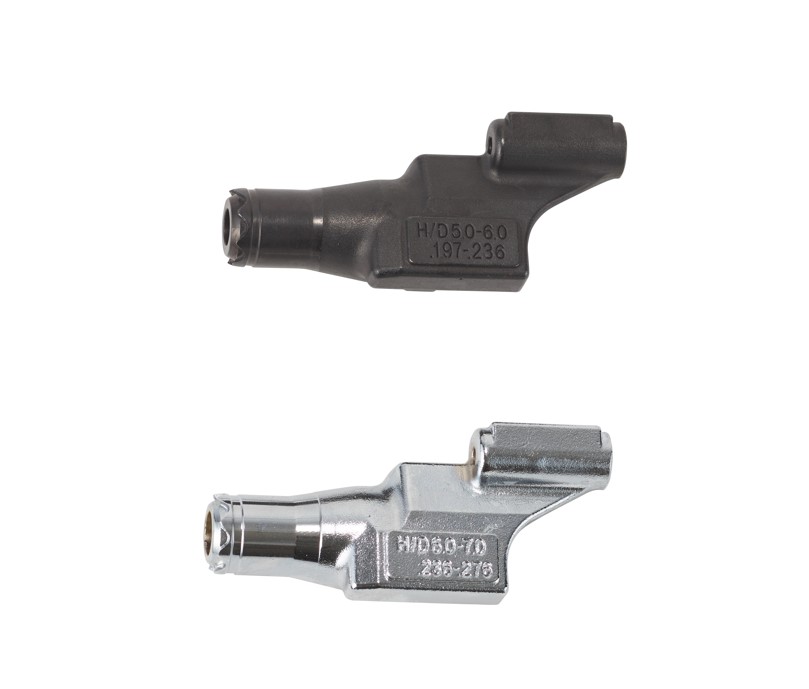

  • Comes with two easy to replace contact noses for shooting a wide range nails.
  • Anti-double fire trigger prevents multiple nails from being fired in one shot.
  • To move between bump fire and single fire mode no adjustment to the tool is necessary.
  • Patented maintenance free end cap filter prevents foreign substances from entering the tool. The filter has a self-cleaning feature; Foreign substances are automatically ejected from the tool when the air hose is disconnected.
  • Dial adjustable depth control allows depth adjustment with no special tool.
  • Perfectly sets nails to eliminate driver marks.

Specifications

WEIGHT
2.1 kg
DIMENSIONS

304mm(H) x 126mm(W) x 298mm(L)

MINIMUM OPERATION PRESSURE
12 bar
MAXIMUM OPERATION PRESSURE
24 bar
AIR INLET SIZE
7/16"
MAGAZINE CAPACITY
400 nails
DEPTH CONTROL
Yes
JAM CLEARING
No

TRIGGER TYPE

Anti-Double Fire Trigger

ACCESSORIES
Safety glasses, Nose attachment, Carry case

Fasteners

COLLATION TYPE
Wire, Plastic
NAIL GUN ANGLE

15

STRIP OR COIL
Coil
COMPATIBLE FASTENER TYPES
Flat wire welded nails and flat plastic sheet collated nails
MINIMUM FASTENER SIZE
32
MAXIMUM FASTENER SIZE
65

MINIMUM NAIL DIAMETER

2.1

MAXIMUM NAIL DIAMETER
3.3

Manuals

Owner's Manual

Download
