HN65J2

PowerLite High Pressure
Metal Connection Coil Nailer up to 65mm

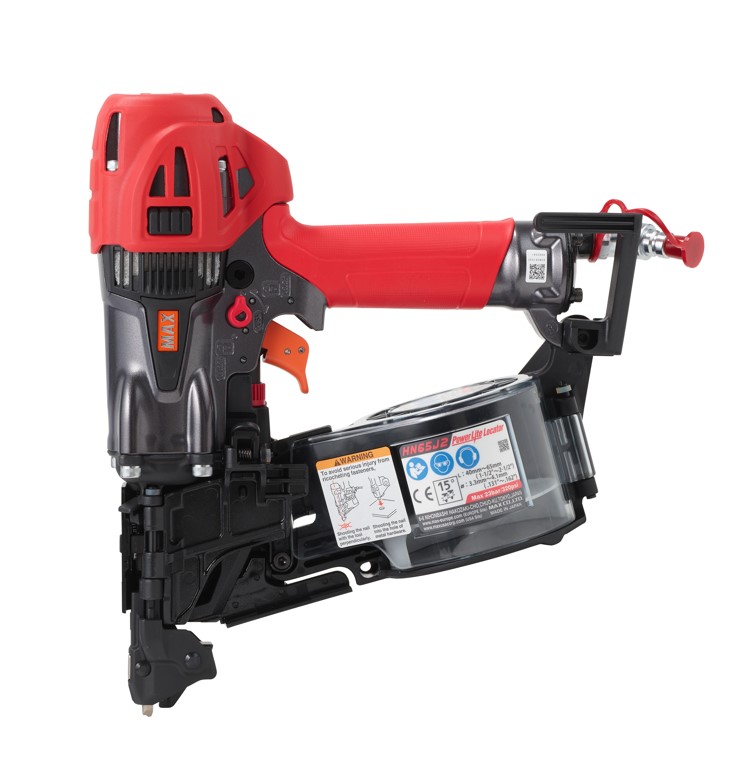

The MAX HN65J2 is a top of the line professional grade joist hanger nailer powered by MAX's Powerlite compressor. The HN65J2 can be used for joist hangers and foundation anchors and holdowns.

Inquiry Product Registration

Applications

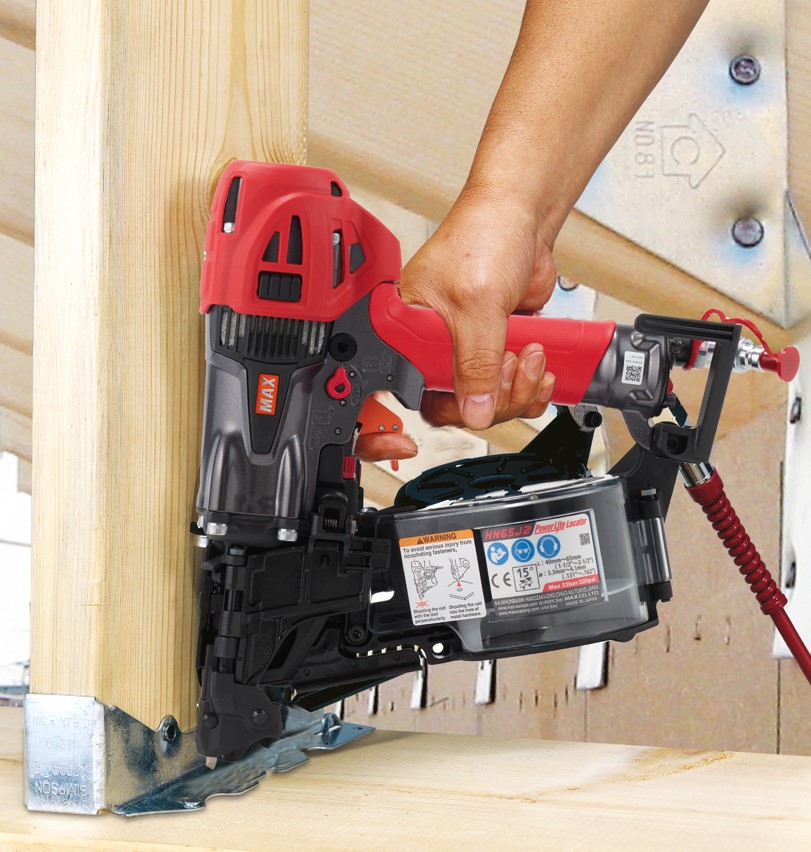

  • Joist hangers

Features

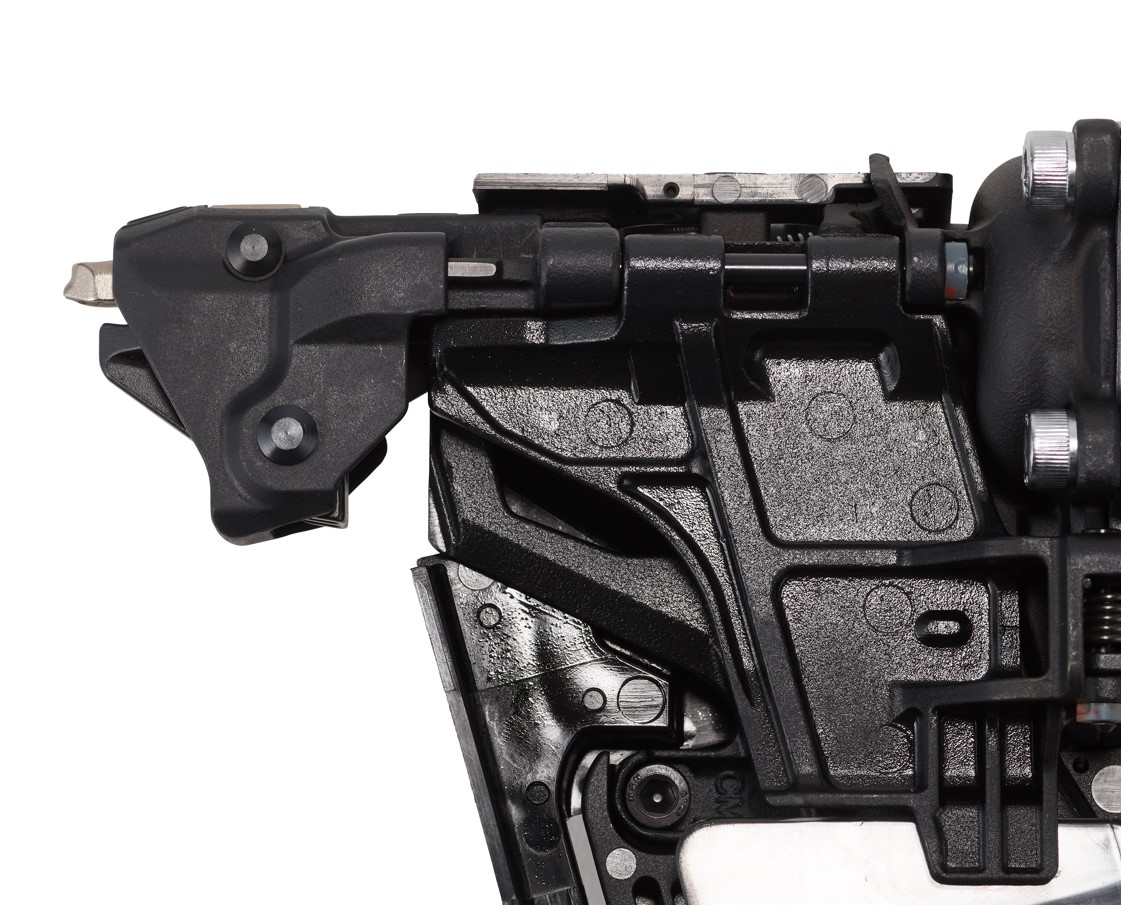

  • Durable positive placement tip.
  • Patented maintenance free end cap filter prevents foreign substances from entering the tool. The filter has a self-cleaning feature; Foreign substances are automatically ejected from the tool when the air hose is disconnected.
  • Tangle free swivel plug to alleviate the tangling of the air hose no matter what angle the tool is being held.
  • Dial adjustable depth control allows depth adjustment with no special tool.
  • 40% more compact than regular pressure pneumatic joist hangers.
  • Trigger lock to prevent accidental firing of the tool.

Specifications

WEIGHT
2.1 kg
DIMENSIONS

299mm(H) x 109mm(W) x 298mm(L)

MINIMUM OPERATION PRESSURE
12 bar
MAXIMUM OPERATION PRESSURE
24 bar
AIR INLET SIZE
7/16"
MAGAZINE CAPACITY
100 nails
DEPTH CONTROL
Yes
JAM CLEARING
No

TRIGGER TYPE

Sequential Fire Trigger

ACCESSORIES

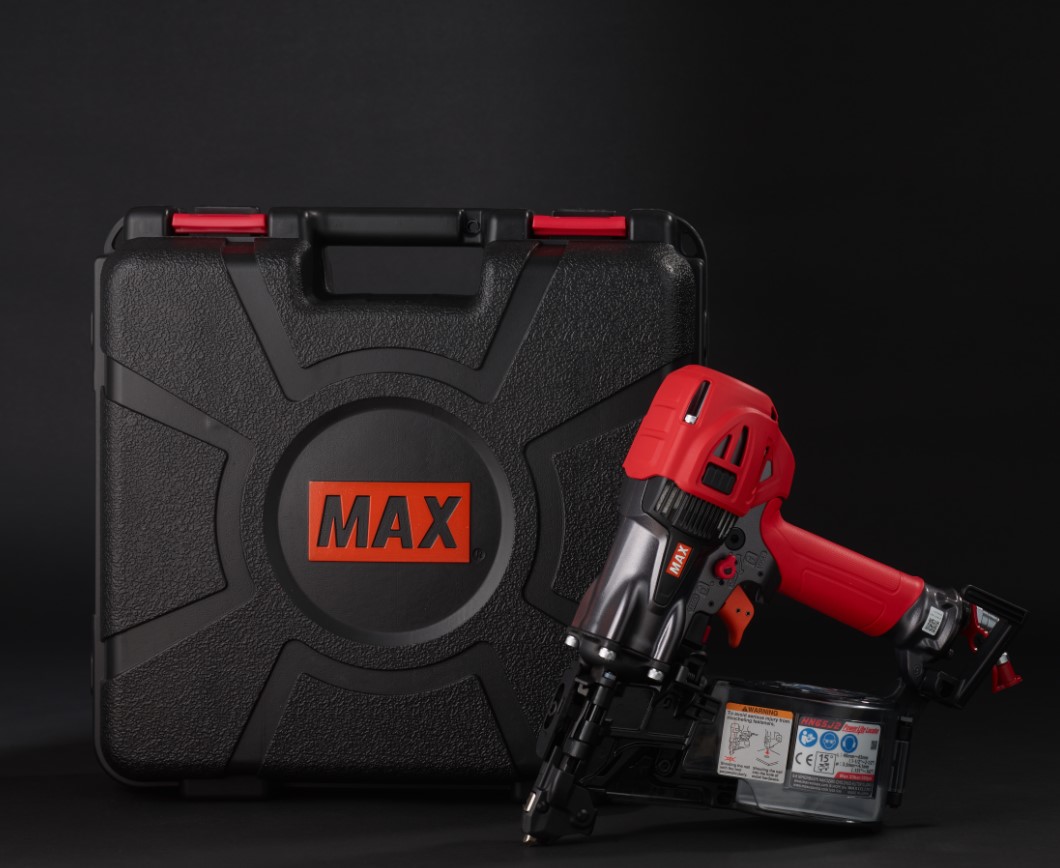

Safety glasses, Carry case

Fasteners

COLLATION TYPE
Plastic
NAIL GUN ANGLE

15

STRIP OR COIL

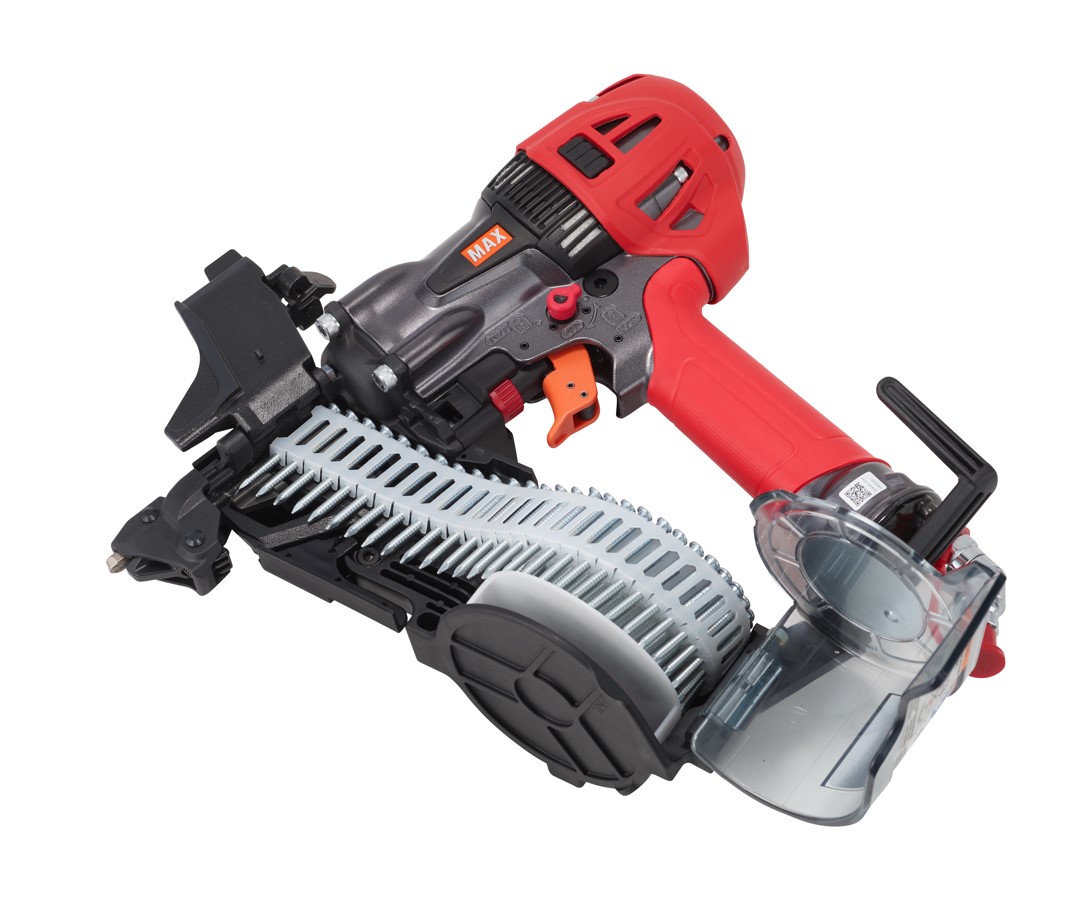

Coil
COMPATIBLE FASTENER TYPES
Flat plastic sheet collated nails
MINIMUM FASTENER SIZE
40
MAXIMUM FASTENER SIZE
60

MINIMUM NAIL DIAMETER

3.8

MAXIMUM NAIL DIAMETER
4.0

Manuals

Owner's Manual

Download
