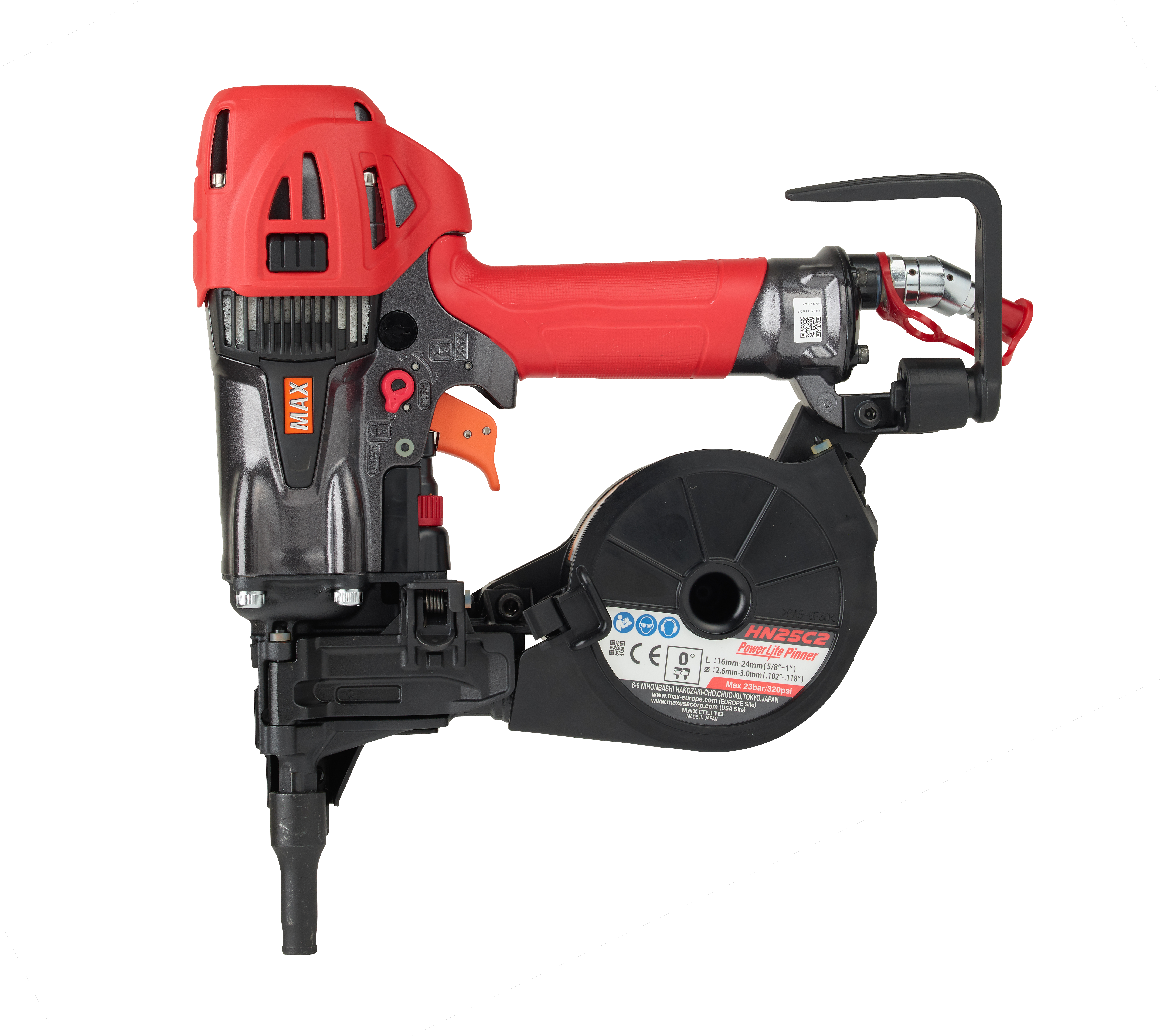

HN25C2

PowerLite High Pressure
Concrete Pinner up to 25mm

The MAX HN25C is a top of the line professional grade pneumatic drywall track pinner powered by MAX's Powerlite compressor. The HN25C can be used for pinning drywall track to concrete and carpet tack strips to concrete. This tool is lighter, faster and more efficient than gas tools.

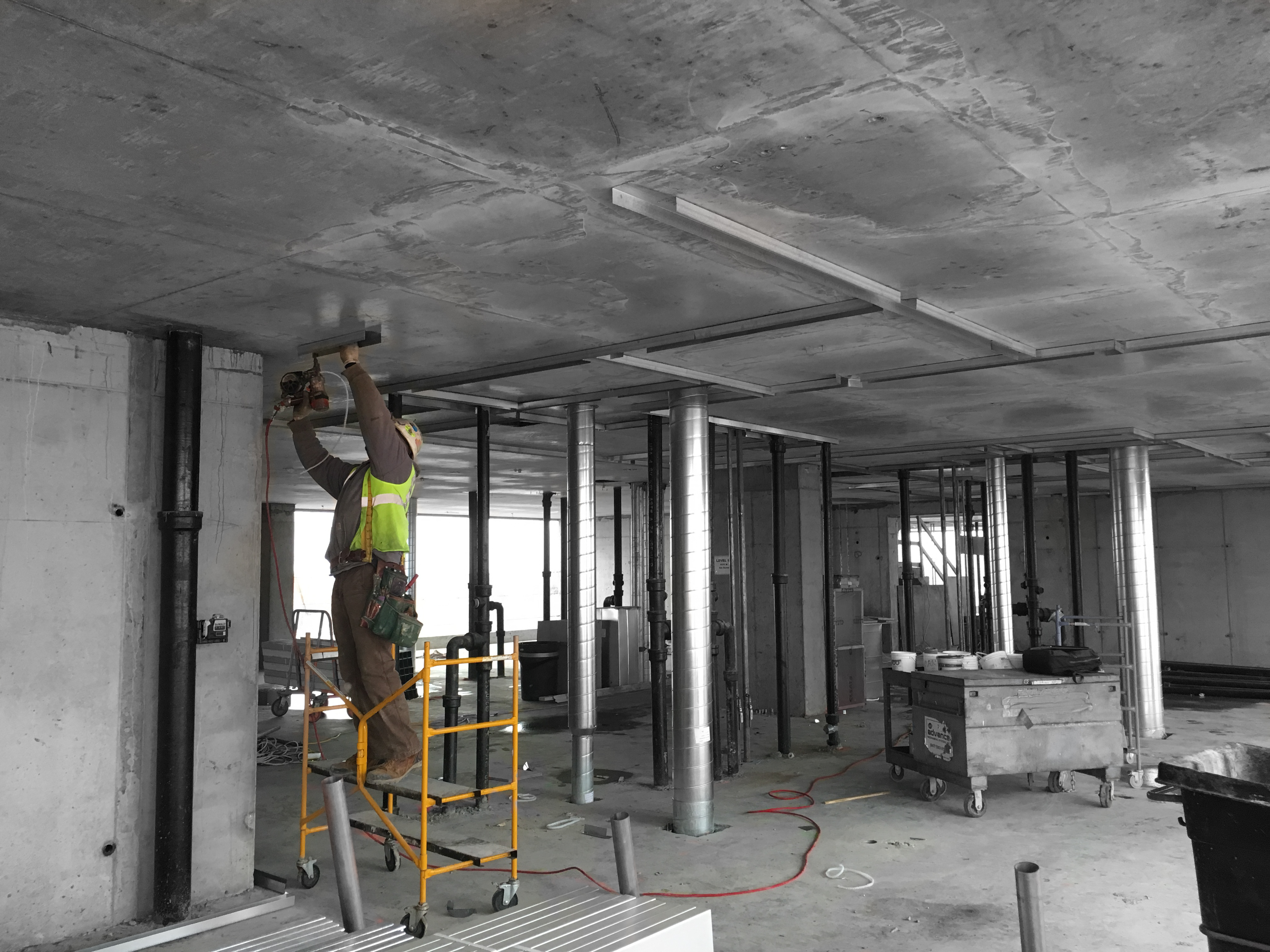

Applications

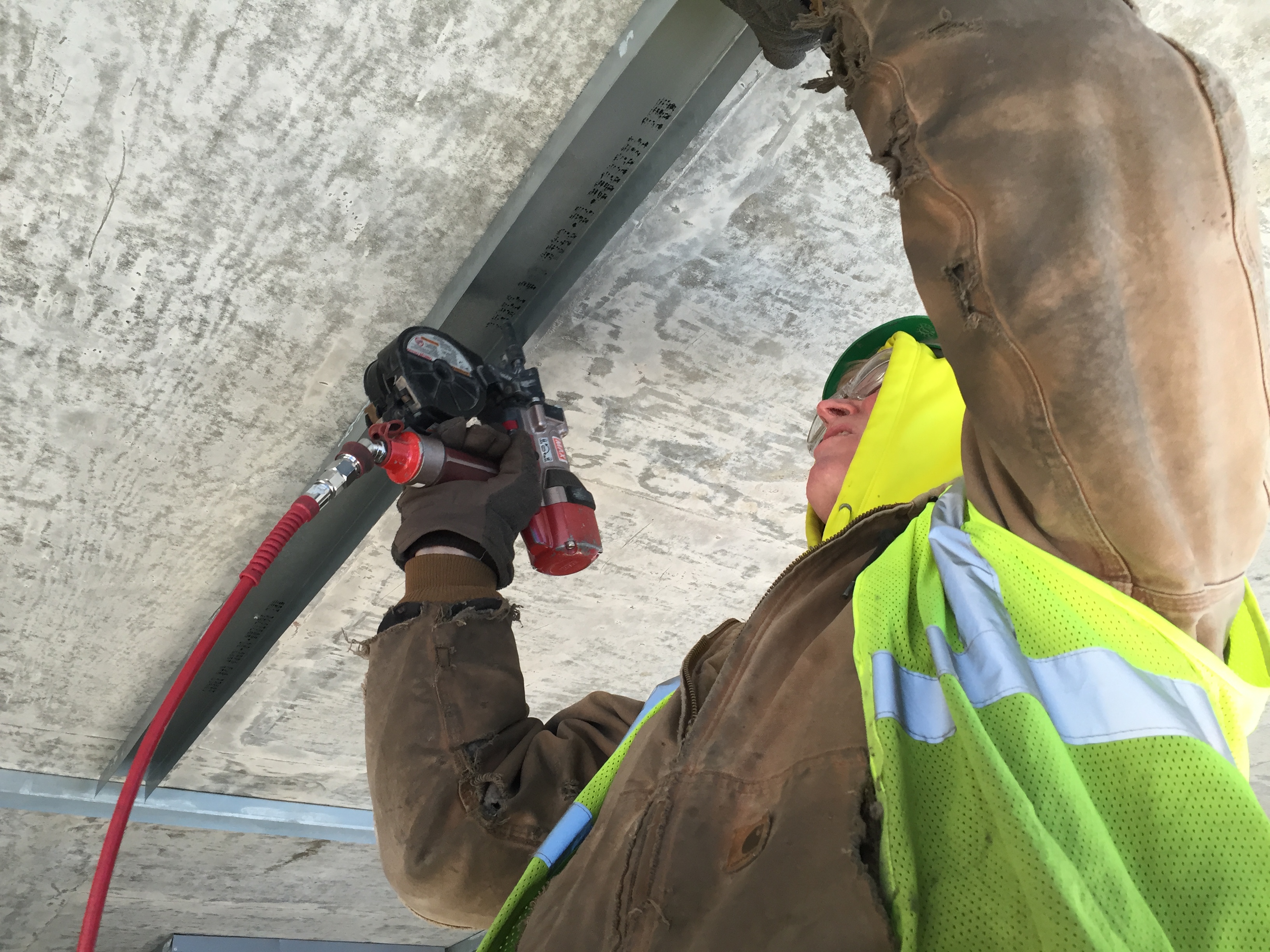

  • Metal track to concrete
  • Wood to concrete
  • Waterproof sheet to concrete

Features

  • Your lightest alternative for attaching drywall track to concrete only 2.0kg. This powerful gun can shoot up to 25mm pins and also has a washer attachment if needed.
  • Slim contact nose helps to consistently drive pins for fastening metal studs.
  • Dial adjustable depth control allows depth adjustment with no special tool.
  • 100 pin magazine capacity
  • Tangle free swivel plug to alleviate the tangling of the air hose no matter what angle the tool is being held.
  • Shorter contact stroke
  • Less pressing load makes much less effort to shoot pins.

Specifications

WEIGHT
2 kg
DIMENSIONS

306mm(H) x 82mm(W) x 306mm(L)

MINIMUM OPERATION PRESSURE
12 bar
MAXIMUM OPERATION PRESSURE
24 bar
AIR INLET SIZE
7/16"
MAGAZINE CAPACITY
100
DEPTH CONTROL
Yes
JAM CLEARING
No

TRIGGER TYPE

Sequential Fire Trigger

AIR CONSUMPTION
(FT3/CYCLE)
0.035
ACCESSORIES
Safety glasses, Carry case

Fasteners

COLLATION TYPE
Plastic
NAIL GUN ANGLE

Straight

STRIP OR COIL
coil
MINIMUM FASTENER SIZE
12
MAXIMUM FASTENER SIZE
25

MINIMUM NAIL DIAMETER

2.5

MAXIMUM NAIL DIAMETER
3

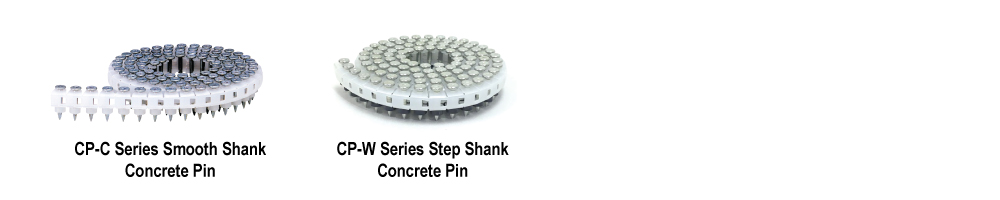

Application (lower) Application (Upper) Item# Length Shank Dia. Shank Pins/ Coil Case Qty. Test report
Concrete Metal track CP-C619V6-ICC 3/4" .102" Smooth 100 1000 ESR3275
Concrete Metal track or 1/4" wood CP-C625V6-ICC 1" .102" Smooth 100 1000 ESR3275
Concrete Metal track CP-W618W0SP 3/4" .118"/'.102" Step 100 2000 ESR4320
