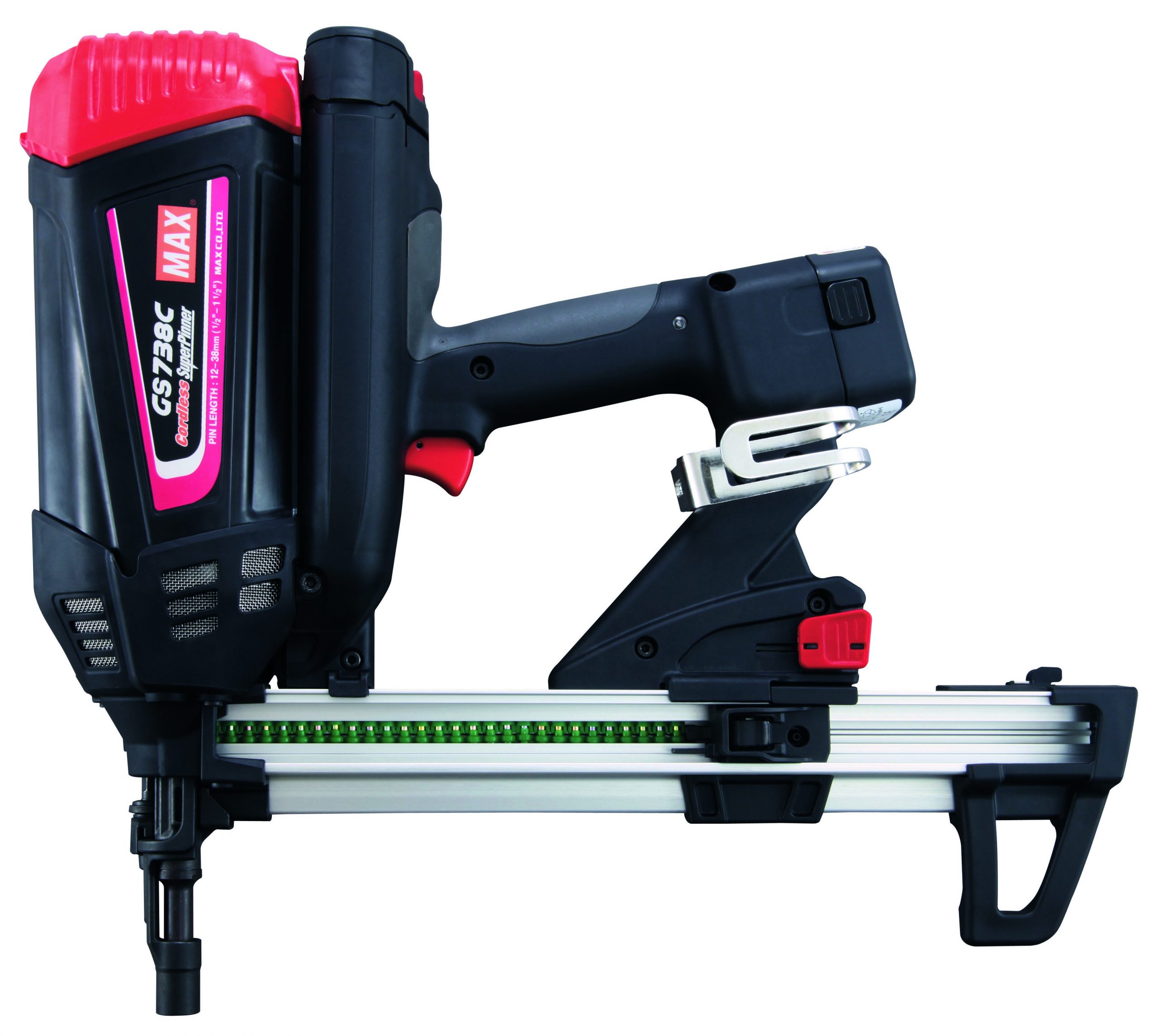

GS738C

Cordless concrete / steel gas pinner up to 40mm

The MAX GS738C is a cordless drywall track pinner than can be used for fastening saddle band to floors, wooden track to floors, track to ceilings, steel bulk to floors, drywall track to concrete, and the attachment of lath. At 3.7kg this lightweight gas powered nail gun can drive up to 40mm. The GS738C features a reversible belt hook for easy hanging of the tool when it's not being used.

Inquiry Product Registration

Applications

  • Metal track to concrete
  • Metal track to steel
  • Wood to concrete
  • Wood to steel

Features

  • Dial adjustable depth control
  • One- step easy pin loading
  • Slim contact nose. Easily fasten electrical and plumbing clips to base materials.
  • Easy jam clearance system
  • Low Battery Indicator

Specifications

WEIGHT
3.7 kg
DIMENSIONS

365mm(H) x 124mm(W) x 435mm(L)

MAGAZINE CAPACITY
42
DEPTH CONTROL
Yes
JAM CLEARING
Yes

TRIGGER TYPE

Sequential Fire Trigger

BATTERY
Ni-MH 6.0V (1.5Ah)
CHARGER
JC610M
SHOTS PER CHARGE
Approx. 4500 nails / charge
SHOTS PER FUEL CELL
Approx. 800 pins
ACCESSORIES
Safety glasses, Battery, Charger, Carry case

Fasteners

COLLATION TYPE
Plastic
NAIL GUN ANGLE

Straight

STRIP OR COIL
Strip
MINIMUM FASTENER SIZE
15
MAXIMUM FASTENER SIZE
40

MINIMUM NAIL DIAMETER

2.6

MAXIMUM NAIL DIAMETER
2.6

Manuals

Owner's Manual

Download
