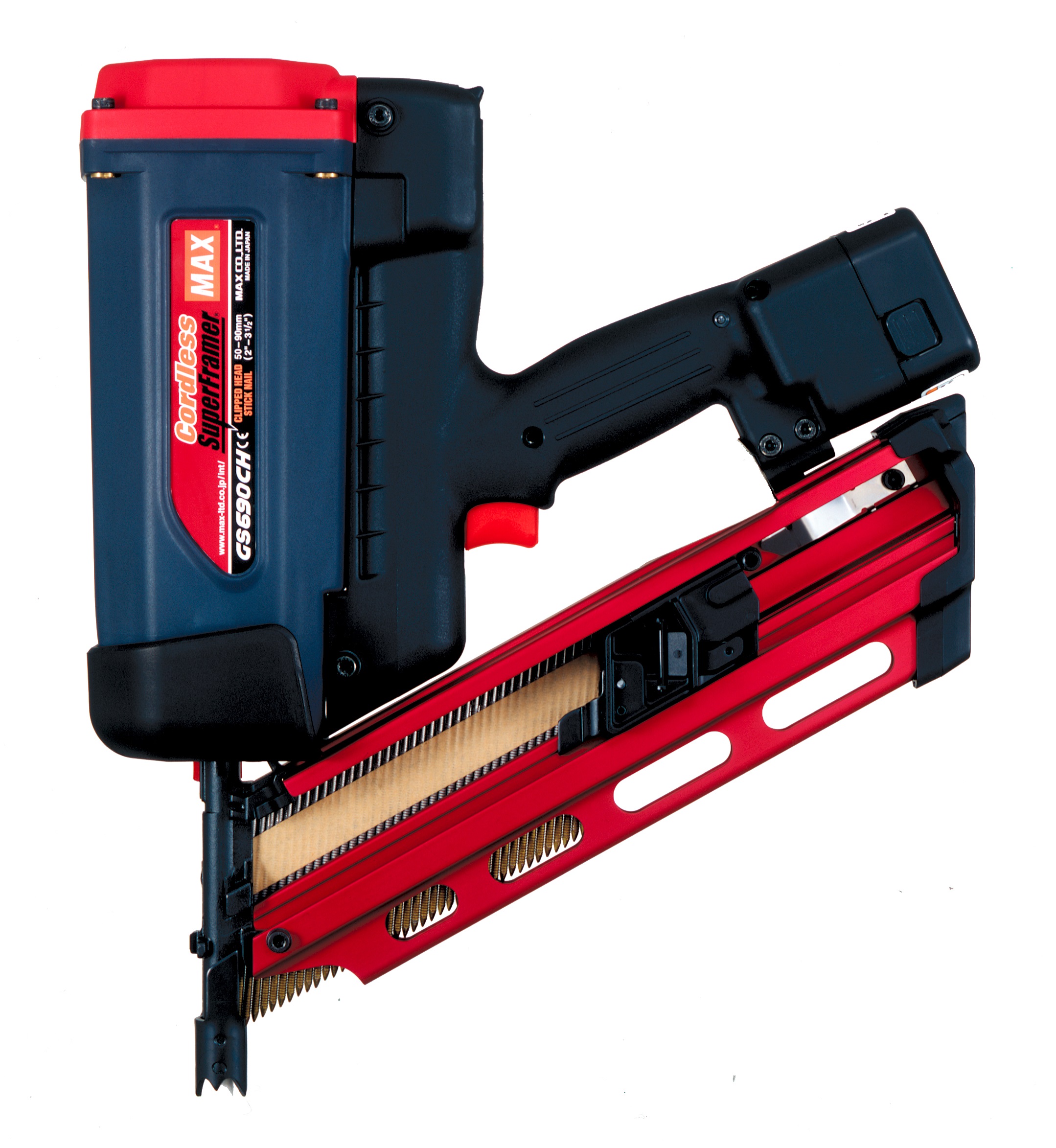

GS690CH

34 degree Ccrdless framing gas nailer up to 90mm

The MAX GS738C is 34 degree cordless gas nailer for framing application. At 3.5kg this lightweight gas powered nail gun can drive up to 90mm.

Inquiry Product Registration

Applications

  • Framing

Features

  • Easy set-up. Requires no hoses no compressors
  • Weighs only 3.5kg with solid aluminum magazine
  • Powerful to drive up to 90mm x 3.3mm nails
  • Dial adjustable depth control
  • Open nose and magazine for easy jam clearance
  • Pointy teeth for easy toe-nailing
  • Easy-to-load fuel cell
  • LED low battery indicator
  • Reversible belt hook (Right or left hand)
  • One step easy nail loading

Specifications

WEIGHT
3.5 kg
DIMENSIONS

391mm(H) x 110mm(W) x 340mm(L)

MAGAZINE CAPACITY
40
DEPTH CONTROL
No
JAM CLEARING
Yes

TRIGGER TYPE

Sequential Fire Trigger

BATTERY
Ni-MH 6.0V (1.5Ah)
CHARGER
JC610M
SHOTS PER CHARGE
Approx. 4500 nails / charge
SHOTS PER FUEL CELL
Approx. 1100 pins
ACCESSORIES
Safety glasses, Battery, Charger, Carry case

Fasteners

COLLATION TYPE
Paper
NAIL GUN ANGLE

34

STRIP OR COIL
Strip
COMPATIBLE FASTENER TYPES
Offset head/clipped head Offset head/clipped head stick nails
MINIMUM FASTENER SIZE
50
MAXIMUM FASTENER SIZE
90

MINIMUM NAIL DIAMETER

2.9

MAXIMUM NAIL DIAMETER
3.3
