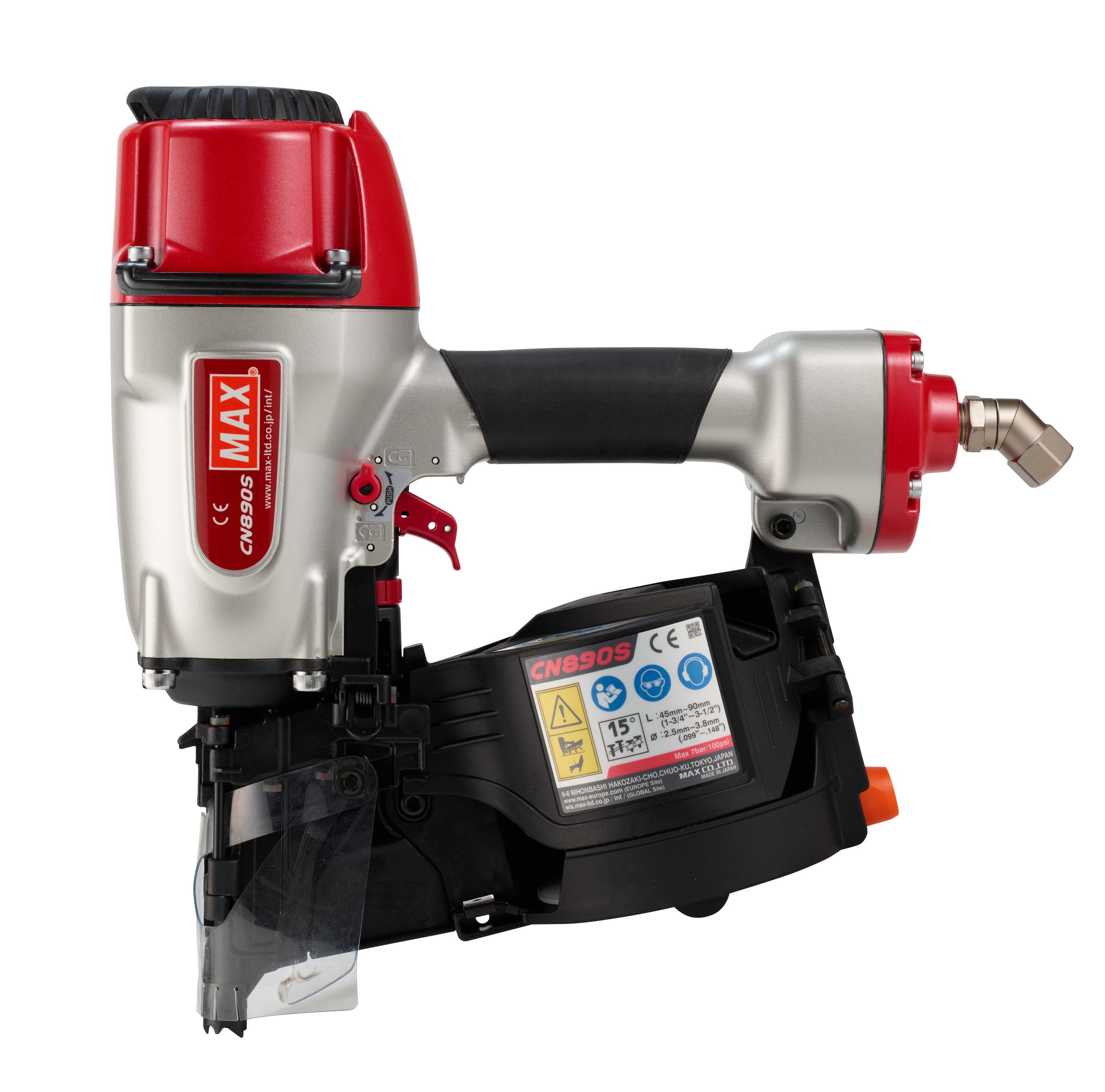

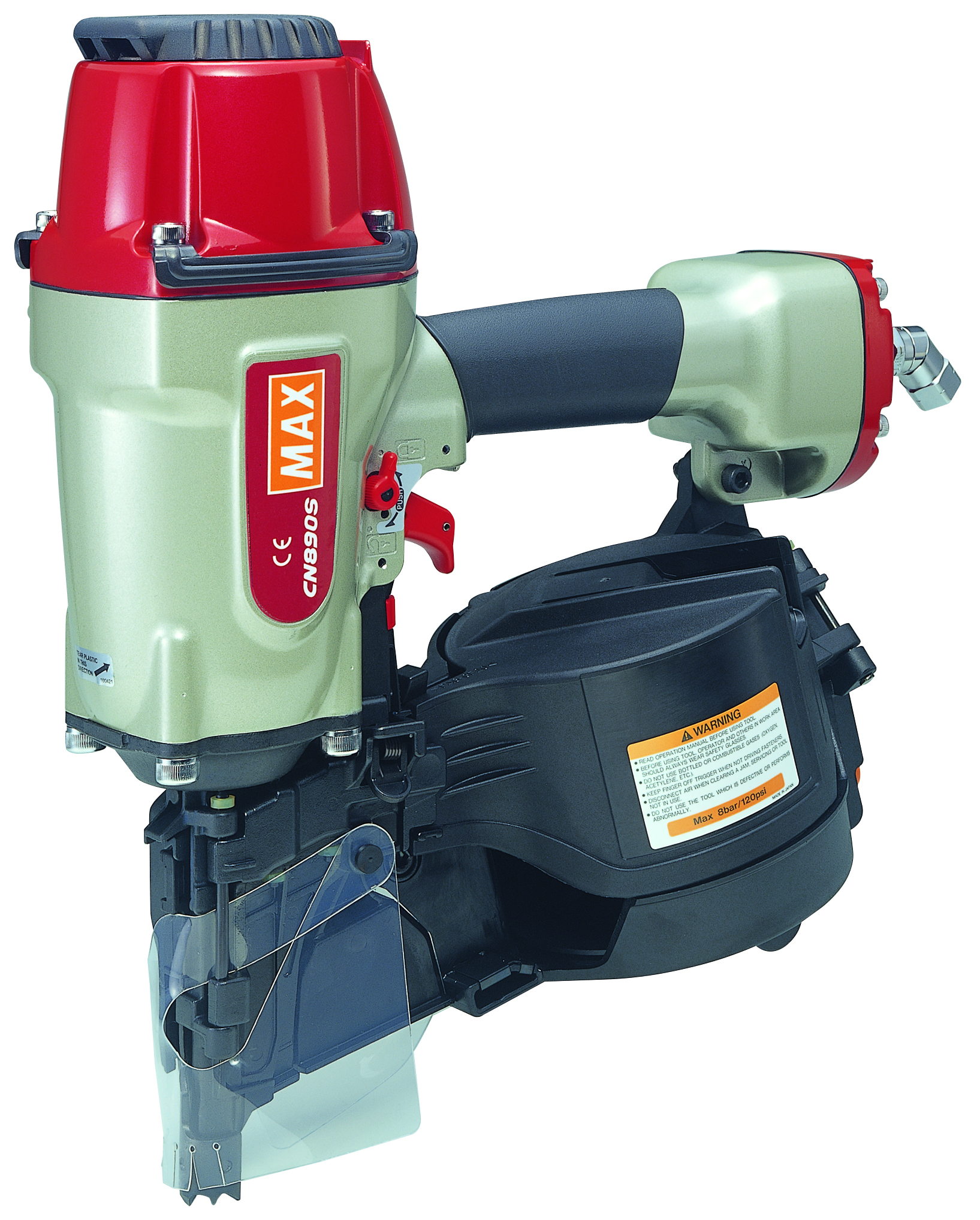

CN890S

Roofing / framing Coil Nailer up to 90mm

The MAX CN890S SuperSider is a top of the line professional grade pneumatic roofign and framing nailer. The CN890S is able to drive wire welded coil and plastic sheet collated nails without any adjustment.

Inquiry Product Registration

Applications

  • Roofing
  • Framing

Features

  • It can drive wire welded coil nails and plastic sheet collated nails without any adjustment
  • Patented maintenance free end cap filter prevents foreign substances from entering the tool. The filter has a self-cleaning feature; Foreign substances are automatically ejected from the tool when the air hose is disconnected.
  • Anti-double fire trigger prevents multiple nails from being fired in one shot. To move between bump fire and single fire mode no adjustment to the tool is necessary.
  • Easy 360 degree twist adjustable exhaust deflector allows the user to easily divertexhaust air away from them self without any tool.
  • Dial adjustable depth control allows depth adjustment with no special tool.

Specifications

WEIGHT
3.3 kg
DIMENSIONS

387mm(H) x 129mm(W) x 331mm(L)

MINIMUM OPERATION PRESSURE
5 bar
MAXIMUM OPERATION PRESSURE
8 bar
MAGAZINE CAPACITY
300-350 (wire), 300 (plastic collated)
DEPTH CONTROL
Yes
JAM CLEARING
No

TRIGGER TYPE

Anti-Double Fire Trigger

ACCESSORIES
Safety glasses, Carry case

Fasteners

COLLATION TYPE
Wire, Plastic
NAIL GUN ANGLE

15

STRIP OR COIL
Coil
COMPATIBLE FASTENER TYPES
Flat wire welded nails and flat plastic sheet collated nails
MINIMUM FASTENER SIZE
45
MAXIMUM FASTENER SIZE
90

MINIMUM NAIL DIAMETER

2.5

MAXIMUM NAIL DIAMETER
3.8

Manuals

Owner's Manual

Download
