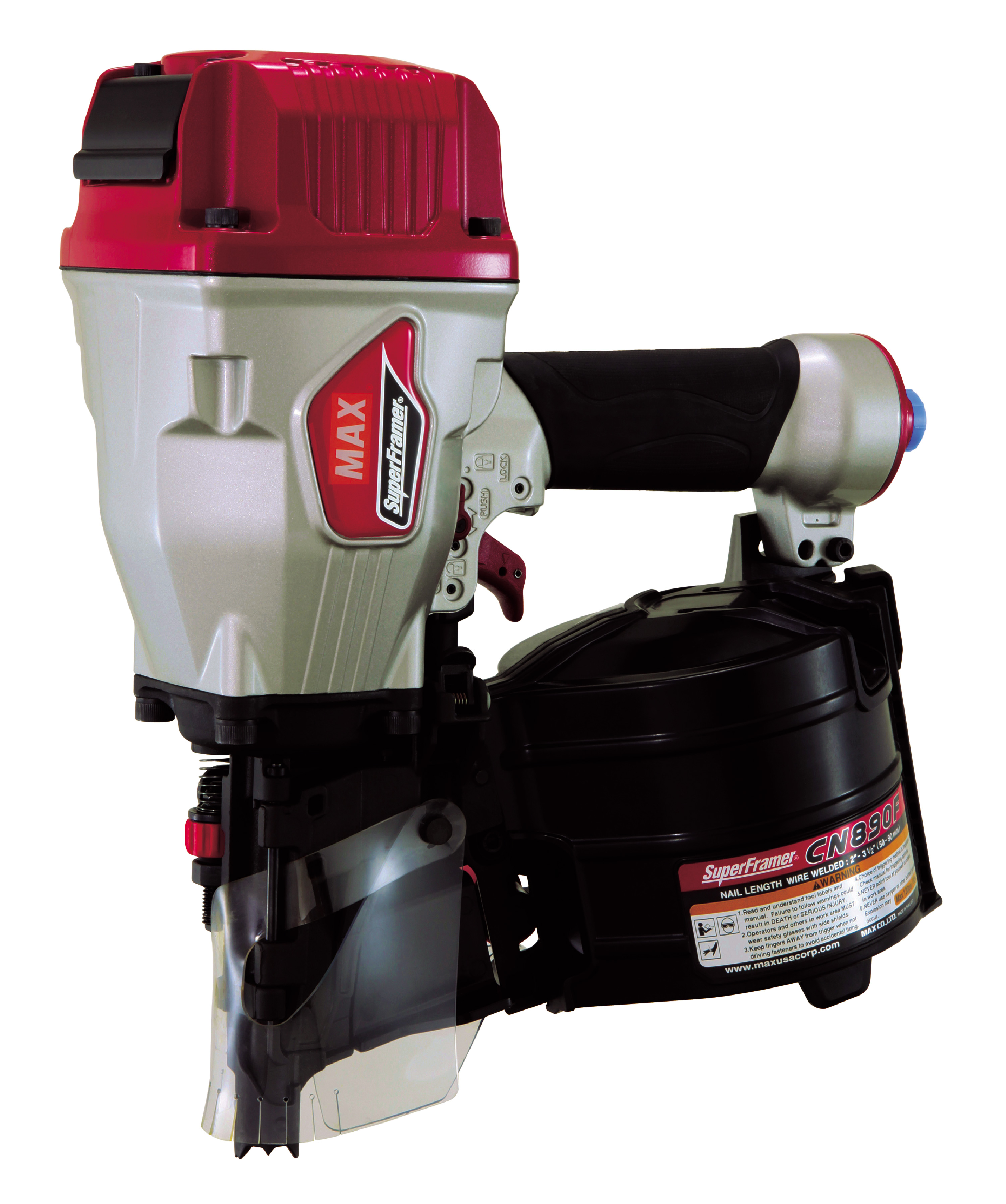

CN890F
Framing Coil Nailer up to 90mm
The MAX CN890F SuperFramer is the pneumatic coil framing nailer. This coil framer is equipped with depth control and self-cleaning end cap filter.
Applications
- Framing
Features
- The anti-double fire trigger prevents multiple nails from being fired in one shot. To move between bump fire and single fire mode no adjustment to the tool is necessary.
- Easy load magazine
- Short tool height (only 298mm) easily fits into tight spaces.
- Patented maintenance free end cap filter prevents foreign substances from entering the tool. The filter has a self-cleaning feature; Foreign substances are automatically ejected from the tool when the air hose is disconnected.
- Contact tip included for finish work.
Specifications
|
WEIGHT
|
3.5 kg |
|---|---|
|
DIMENSIONS
|
298mm(H) x 128mm(W) x 331mm(L) |
MINIMUM OPERATION PRESSURE | 5 bar |
MAXIMUM OPERATION PRESSURE | 8 bar |
MAGAZINE CAPACITY | 300 |
DEPTH CONTROL | Yes |
JAM CLEARING | No |
TRIGGER TYPE | Anti-Double Fire Trigger |
ACCESSORIES | Safety glasses |
Fasteners
COLLATION TYPE | Wire |
|---|---|
NAIL GUN ANGLE | 15 |
STRIP OR COIL | Coil |
COMPATIBLE FASTENER TYPES | Wire welded Coil nails |
MINIMUM FASTENER SIZE | 50 |
MAXIMUM FASTENER SIZE | 90 |
MINIMUM NAIL DIAMETER | 2.5 |
MAXIMUM NAIL DIAMETER | 3.3 |
