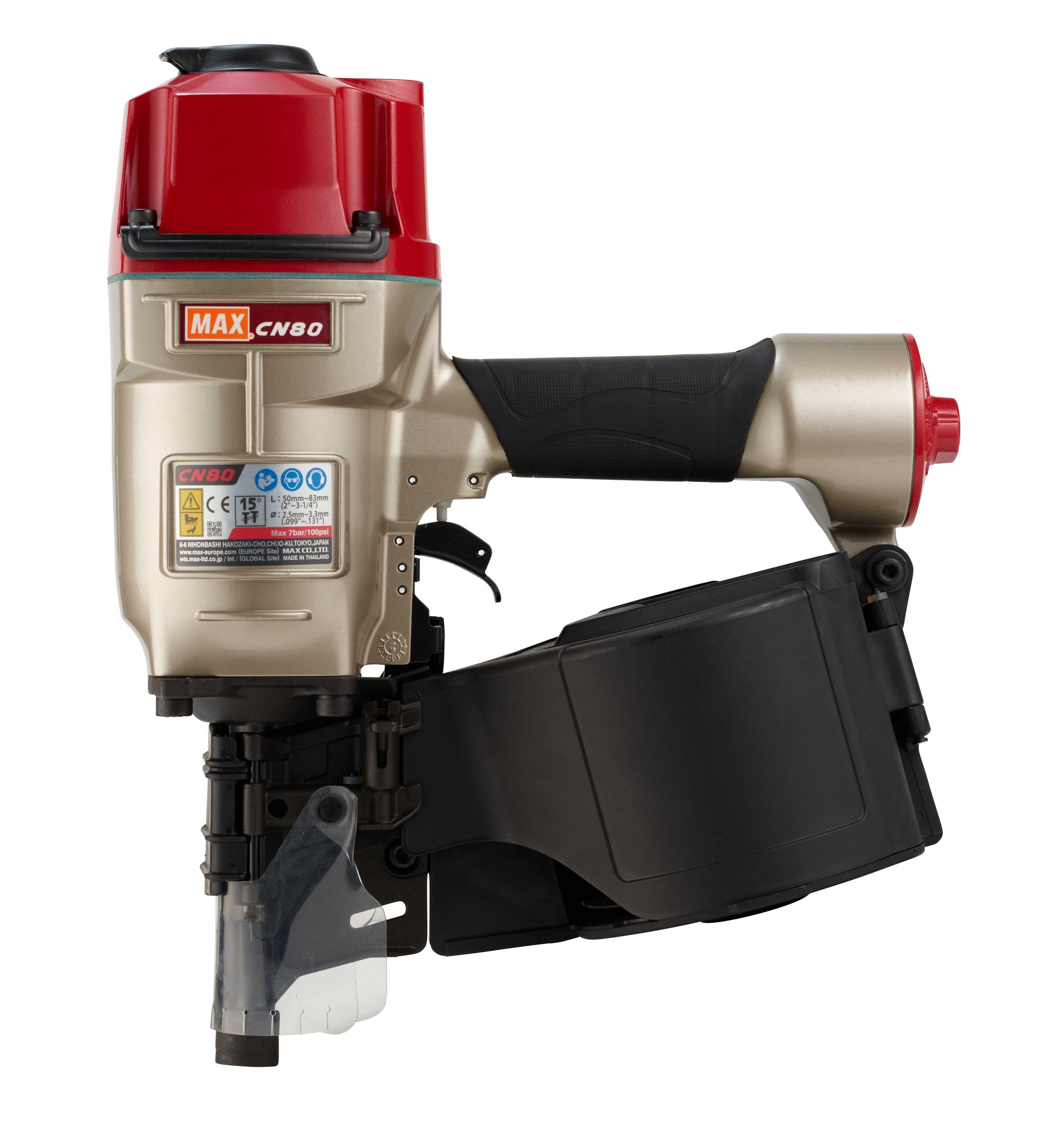

CN80

Heavy Duty Coil Nailer up to 80mm

The MAX CN80 is a top of the line professional grade super heavy duty coil nailer made with die cast aluminum construction. The CN80 can be used for making pallets and packaging.

Applications

  • Pallets
  • Packaging

Features

  • Rapid fire trigger valve for high-speed fastening.
  • Load capacity 300 nails.
  • Tough nylon magazine with a metal nail tray
  • Comfortable rubber grip
  • Diecast aluminum construction.

Specifications

WEIGHT
3.7 kg
DIMENSIONS

362mm(H) x 132mm(W) x 307mm(L)

MINIMUM OPERATION PRESSURE
5 bar
MAXIMUM OPERATION PRESSURE
8 bar
AIR INLET SIZE
3/8"
MAGAZINE CAPACITY
150-300
DEPTH CONTROL
No
JAM CLEARING
No

TRIGGER TYPE

Rapid Fire Trigger

AIR CONSUMPTION
(FT3/CYCLE)
0.06
ACCESSORIES
Safety glasses

Fasteners

COLLATION TYPE
Wire
NAIL GUN ANGLE

15

STRIP OR COIL
Coil
COMPATIBLE FASTENER TYPES
Flat wire welded nails
MINIMUM FASTENER SIZE
50
MAXIMUM FASTENER SIZE
83

MINIMUM NAIL DIAMETER

2.5

MAXIMUM NAIL DIAMETER
3.3

Manuals

Owner's Manual

Download

Documents

Parts List

Download

Schematic

Download
