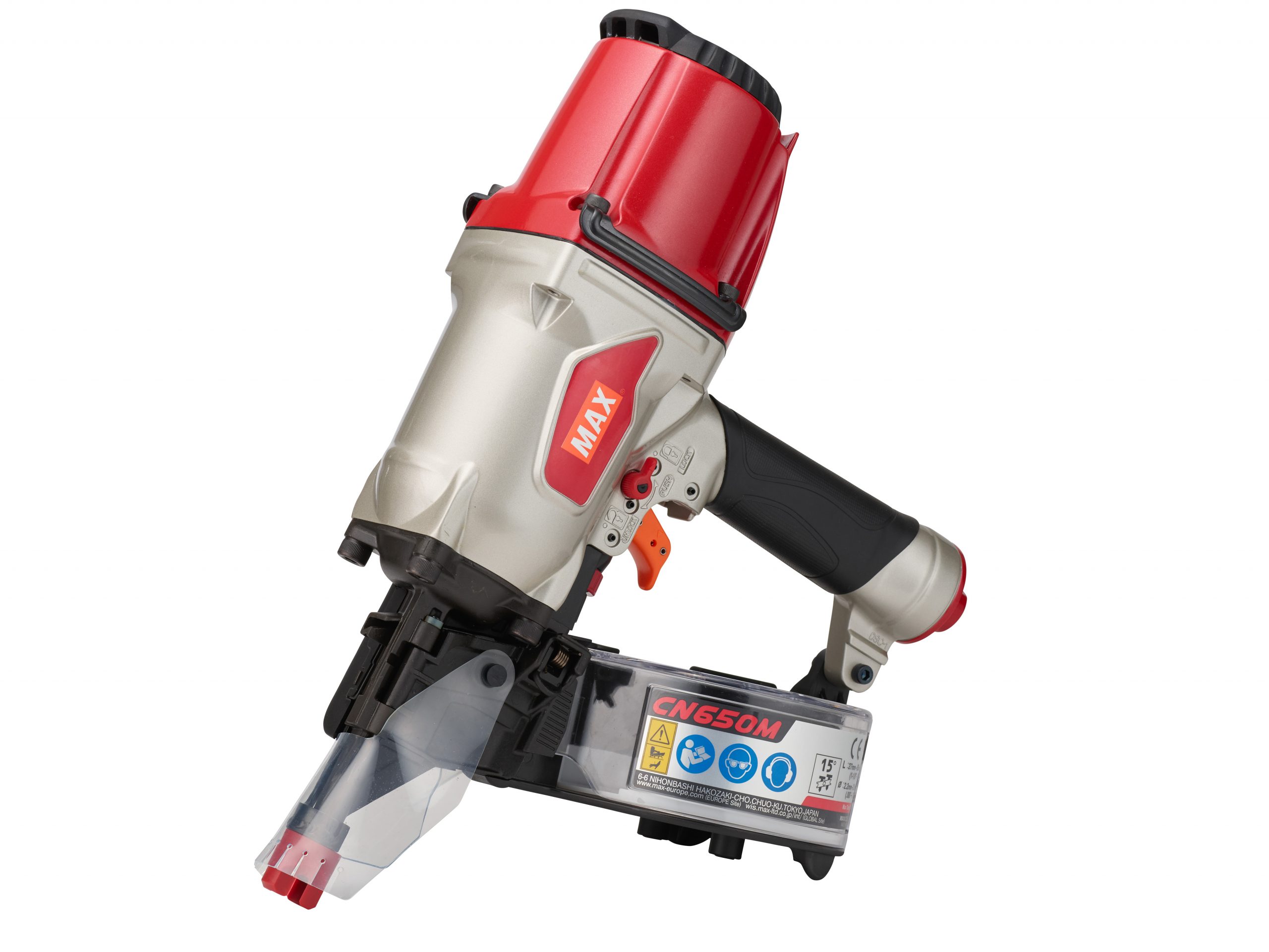

CN650M
Metal / steel fastening coil nailer up to 50mm
The MAX CN650M is a top of the line professional grade pneumatic concrete & metal coil nailer. The CN650M-THI is powerful construction coil nailer can drive nails into 3.2mm thickness steel with Max special annealed nail called FAP nail.
Applications
- Metal fastening
Features
- Patented maintenance free end cap filter prevents foreign substances from entering the tool. The filter has a self-cleaning feature; Foreign substances are automatically ejected from the tool when the air hose is disconnected.
- Easy 360 degree twist adjustable exhaust deflector allows the user to easily divertexhaust air away from them self without any tool.
- Dial adjustable depth control allows depth adjustment with no special tool.
Specifications
WEIGHT
|
3 kg |
---|---|
DIMENSIONS
|
380mm(H) x 132mm(W) x 277mm(L) |
MINIMUM OPERATION PRESSURE | 5 bar |
MAXIMUM OPERATION PRESSURE | 8 bar |
MAGAZINE CAPACITY | 200 |
DEPTH CONTROL | Yes |
JAM CLEARING | No |
TRIGGER TYPE | Sequential Fire Trigger |
ACCESSORIES | Safety glasses, Carry case |
Fasteners
COLLATION TYPE | Plastic |
---|---|
NAIL GUN ANGLE | 15 |
STRIP OR COIL | Coil |
COMPATIBLE FASTENER TYPES | Flat plastic sheet collated nails |
MINIMUM FASTENER SIZE | 27 |
MAXIMUM FASTENER SIZE | 50 |
MINIMUM NAIL DIAMETER | 2.2 |
MAXIMUM NAIL DIAMETER | 2.9 |
