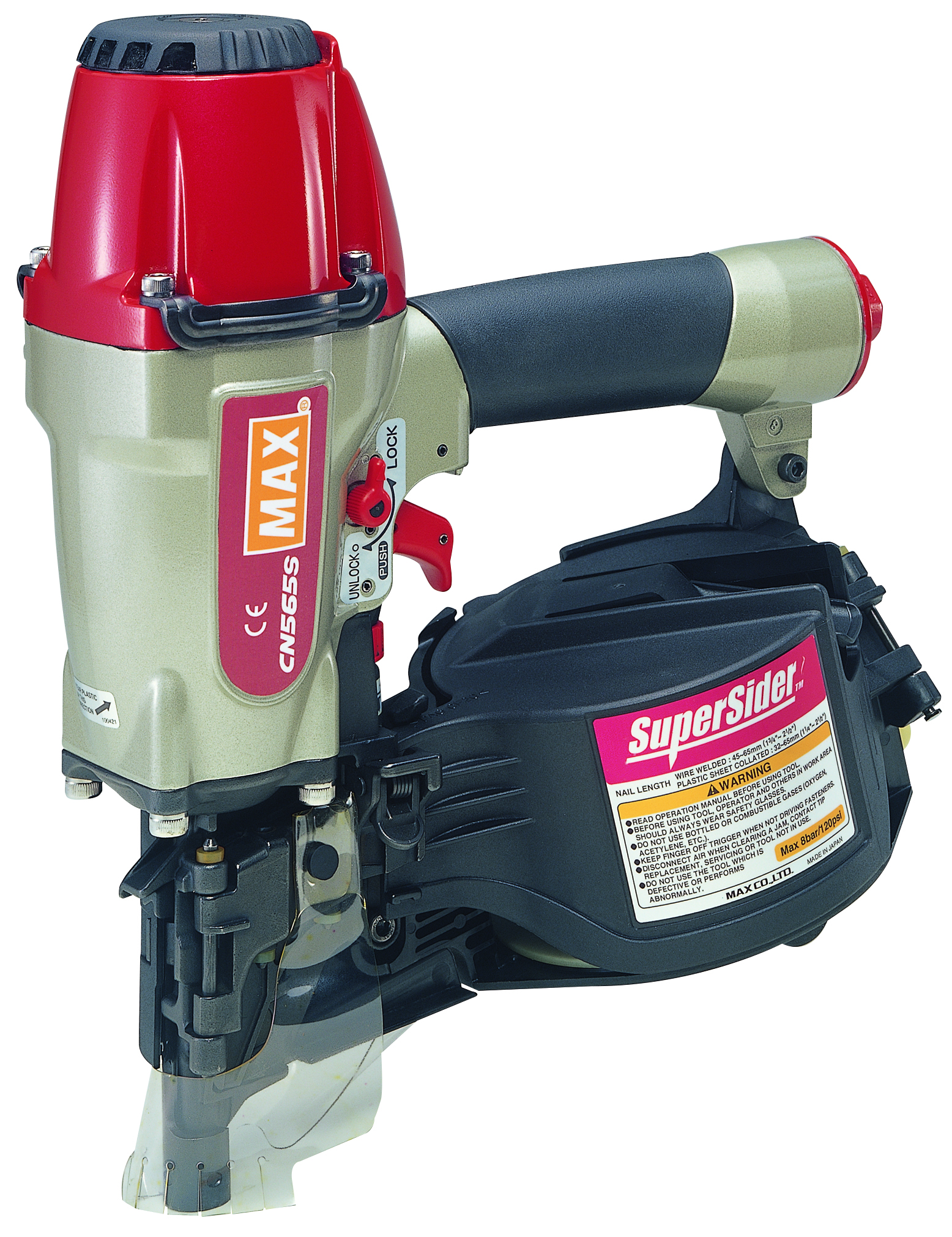

CN565S
Siding Coil Nailer up to 65mm
The MAX CN565S SuperSider is a top of the line professional grade and heavy duty pneumatic siding nailer. The CN565S is "all-rounder" that can be used for siding, roofing and many other kinds of applications.
Applications
- Siding
- Roofing
Features
- Professional grade durable body.
- Anti-double fire trigger prevents multiple nails from being fired in one shot. To move between bump fire and single fire mode no adjustment to the tool is necessary.
- Dial adjustable depth control allows depth adjustment with no special tool.
Specifications
|
WEIGHT
|
2.2 kg |
|---|---|
|
DIMENSIONS
|
320mm(H) x 130mm(W) x 273mm(L) |
MINIMUM OPERATION PRESSURE | 5 bar |
MAXIMUM OPERATION PRESSURE | 8 bar |
MAGAZINE CAPACITY | 400 |
DEPTH CONTROL | Yes |
JAM CLEARING | No |
TRIGGER TYPE | Anti-Double Fire Trigger |
ACCESSORIES | Safety glasses, Carrying case |
Fasteners
COLLATION TYPE | Wire, Plastic |
|---|---|
NAIL GUN ANGLE | 15 |
STRIP OR COIL | Coil |
COMPATIBLE FASTENER TYPES | Flat wire welded nails and flat plastic sheet collated nails |
MINIMUM FASTENER SIZE | 32 |
MAXIMUM FASTENER SIZE | 65 |
MINIMUM NAIL DIAMETER | 2.3 |
MAXIMUM NAIL DIAMETER | 2.5 |
Manuals
Owner's Manual
Download
