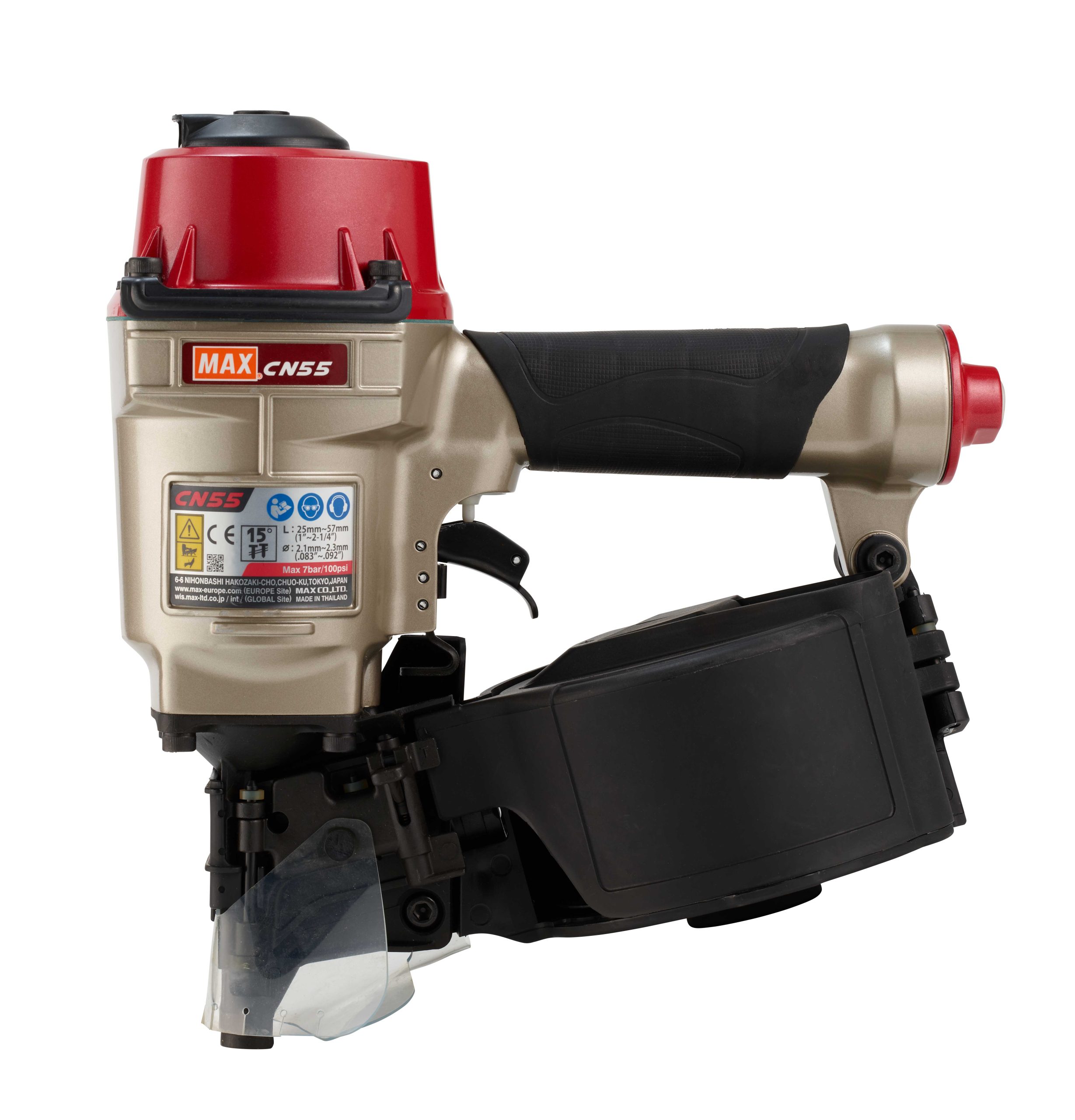

CN55
Heavy Duty Coil Nailer up to 55mm
The MAX CN55 is a top of the line professional grade super heavy duty coil nailer with die cast aluminum construction. The CN55 is used for making pallets and packaging.
Applications
- Pallets
- Packaging
Features
- Rapid fire trigger for high-speed fastening.
- Load capacity 350 nails.
- Multi-directional exhaust cover.
- Comfortable rubber grip.
- Diecast aluminum construction.
- Dust cover.
Specifications
|
WEIGHT
|
2.5 kg |
|---|---|
|
DIMENSIONS
|
283mm(H) x 131mm(W) x 336mm(L) |
MINIMUM OPERATION PRESSURE | 5 bar |
MAXIMUM OPERATION PRESSURE | 8 bar |
AIR INLET SIZE | 1/4" |
MAGAZINE CAPACITY | 300-350 |
DEPTH CONTROL | No |
JAM CLEARING | No |
TRIGGER TYPE | Rapid Fire Trigger |
AIR CONSUMPTION (FT3/CYCLE) | 0.032 |
ACCESSORIES | Safety glasses |
Fasteners
COLLATION TYPE | Wire |
|---|---|
NAIL GUN ANGLE | 15 |
STRIP OR COIL | Coil |
COMPATIBLE FASTENER TYPES | Flat wire welded nails |
MINIMUM FASTENER SIZE | 25 |
MAXIMUM FASTENER SIZE | 57 |
MINIMUM NAIL DIAMETER | 2.1 |
MAXIMUM NAIL DIAMETER | 2.3 |
Manuals
Owner's Manual
Download
