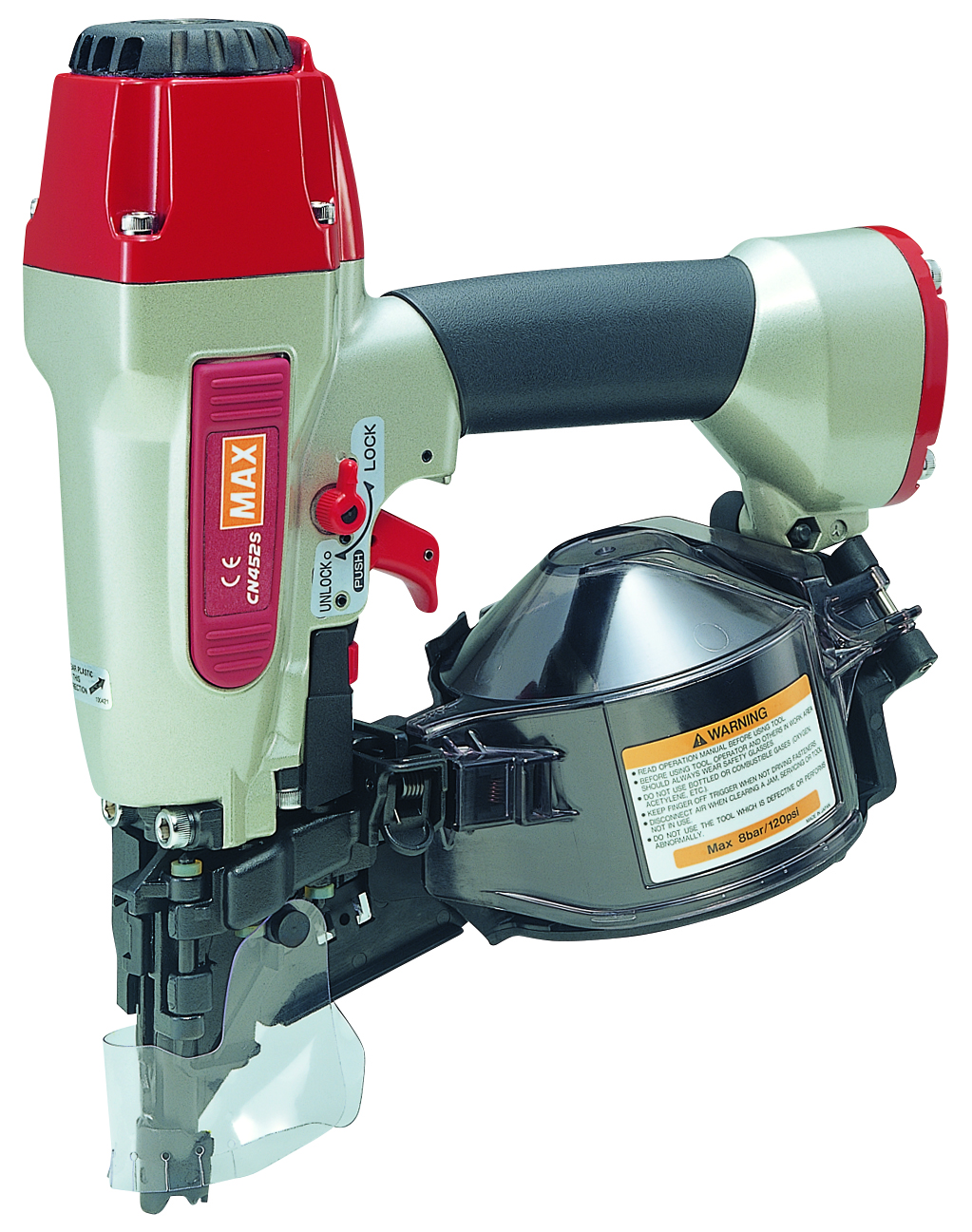

CN452S
Construction coil nailer up to 50mm
The MAX CN452S is a top of the line professional grade pneumatic coil nailer. The CN452S can be used for siding and other various applications.
Applications
- Siding
Features
- Patented maintenance free end cap filter prevents foreign substances from entering the tool. The filter has a self-cleaning feature; Foreign substances are automatically ejected from the tool when the air hose is disconnected.
- Works with flat wire-welded nails plastic sheet collated nails
- Depth adjustment dial allows depth adjustment with no special tool.
- Lightest weight in its class at 1.6kg.
Specifications
|
WEIGHT
|
1.6 kg |
|---|---|
|
DIMENSIONS
|
284mm(H) x 108mm(W) x 260mm(L) |
MINIMUM OPERATION PRESSURE | 4 bar |
MAXIMUM OPERATION PRESSURE | 8 bar |
MAGAZINE CAPACITY | 400(Wire), 200(Plastic) |
DEPTH CONTROL | Yes |
JAM CLEARING | No |
TRIGGER TYPE | Anti-Double Fire Trigger |
ACCESSORIES | Safety glasses, Carry case |
Fasteners
NAIL GUN ANGLE | 15 |
|---|---|
STRIP OR COIL | coil |
COMPATIBLE FASTENER TYPES | Flat wire welded nails and flat plastic sheet collated nails |
MINIMUM FASTENER SIZE | 25 |
MAXIMUM FASTENER SIZE | 50 |
MINIMUM NAIL DIAMETER | 1.59 |
MAXIMUM NAIL DIAMETER | 2.1 |
Manuals
Owner's Manual
Download
