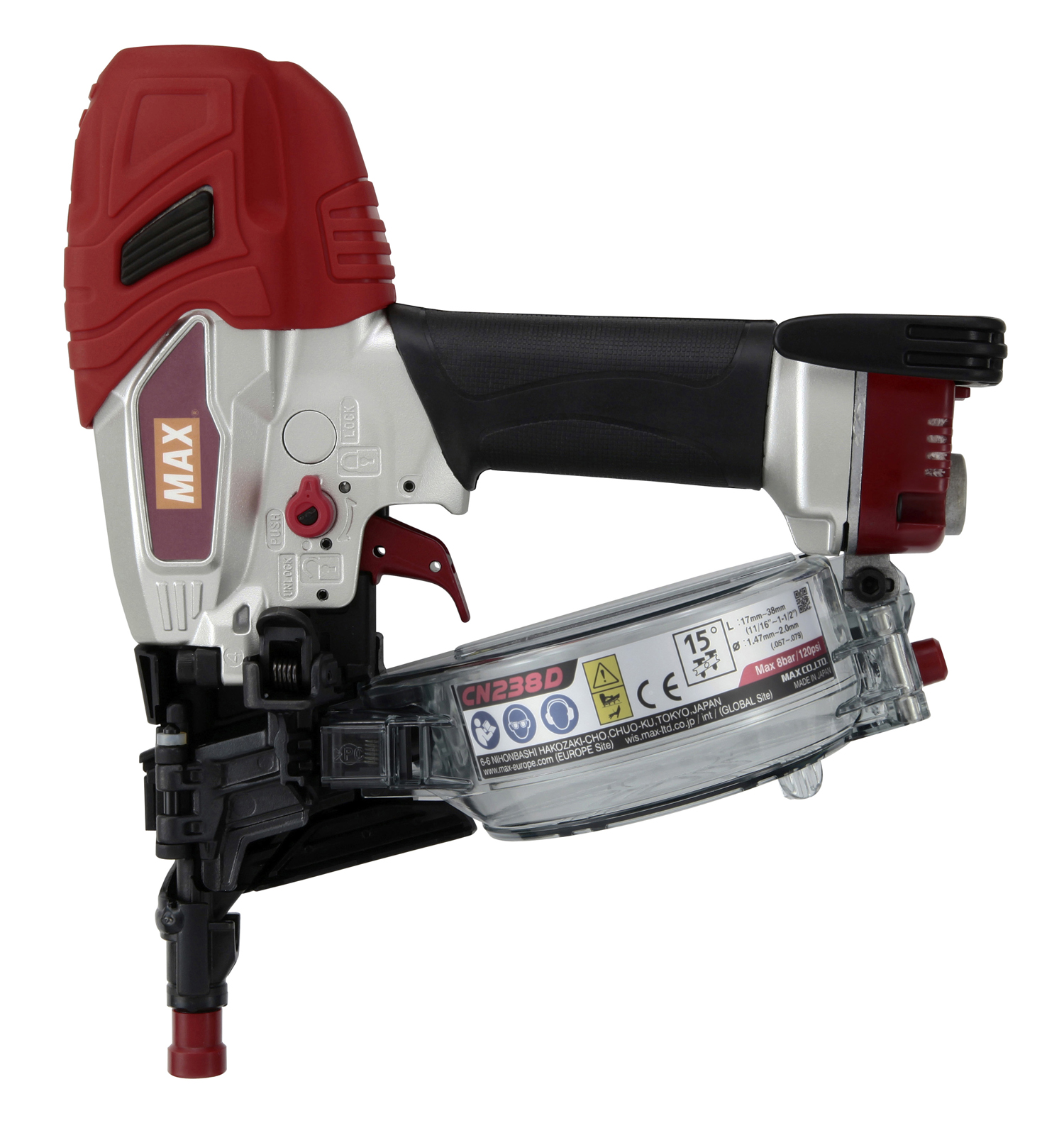

CN238D
Construction coil nailer up to 38mm
The MAX CN23D is a top of the line professional grade pneumatic coil nailer. The CN238D can be used for flooring and furniture case back.
Applications
- Flooring
- Furniture case back
Features
- Slim Contact Arm system (PAT.P) enables nailing in corner just 6mm from the edge
- Rear air exhaust system protects users
- Built-in sound reducer lowers decibel level for quiet operation
- Special nose attachment for flooring application
Specifications
|
WEIGHT
|
1.2 kg |
|---|---|
|
DIMENSIONS
|
249mm(H) x 106mm(W) x 217mm(L) |
MINIMUM OPERATION PRESSURE | 4 bar |
MAXIMUM OPERATION PRESSURE | 8 bar |
MAGAZINE CAPACITY | 200 |
DEPTH CONTROL | Yes |
JAM CLEARING | No |
TRIGGER TYPE | Anti-Double Fire Trigger |
ACCESSORIES | Safety glasses, Carry case |
Fasteners
NAIL GUN ANGLE | 15 |
|---|---|
STRIP OR COIL | coil |
COMPATIBLE FASTENER TYPES | Flat plastic sheet collated nails |
MINIMUM FASTENER SIZE | 17 |
MAXIMUM FASTENER SIZE | 38 |
MINIMUM NAIL DIAMETER | 1.47 |
MAXIMUM NAIL DIAMETER | 2 |
Manuals
Owner's Manual
Download
