Click to choose picture, hover picture to enlarge.
CN100

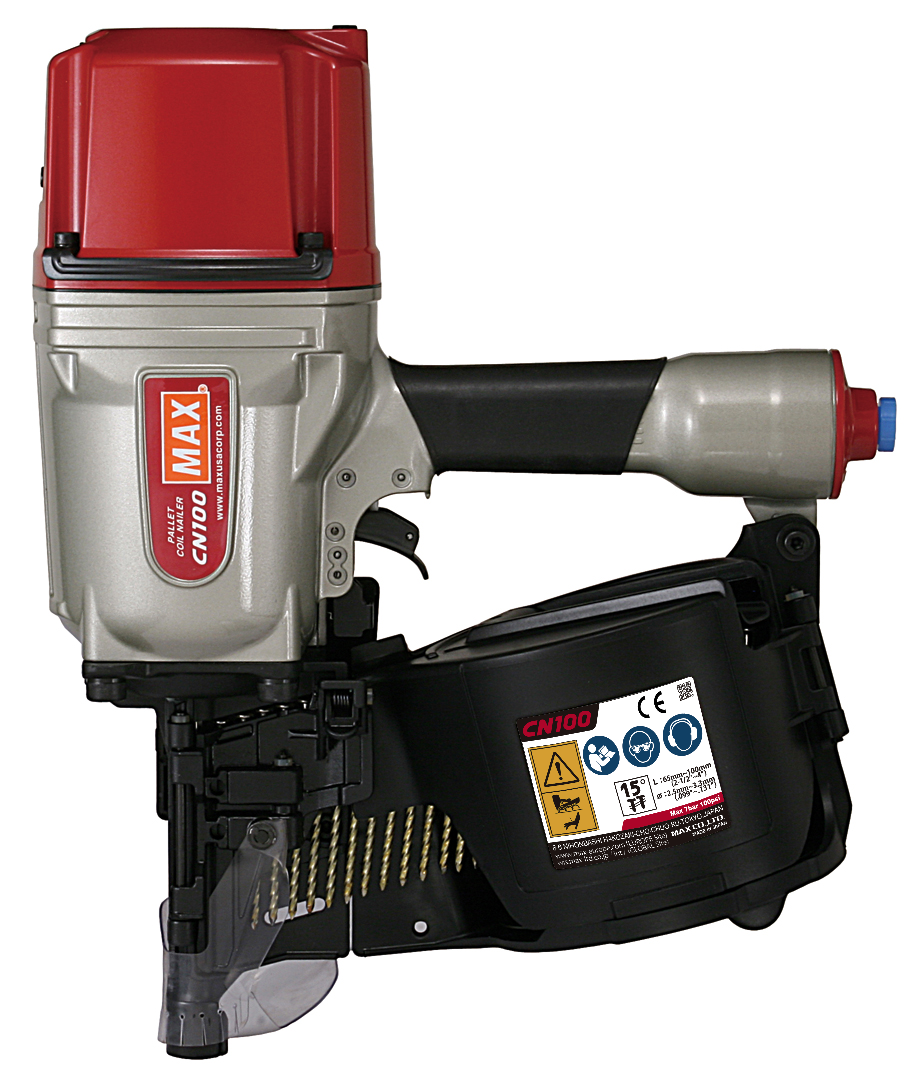

Heavy Duty Coil Nailer up to 100mm
The MAX CN100 is a top of the line professional grade super heavy duty coil nailer made with die cast aluminum construction. The CN100 is used for making heavy duty pallets and crating, and packaging. Drives 65 - 100mm wire welded coil nails.
Applications
- Heavy duty pallets and Packaging
Features
- Rapid fire trigger for high-speed fastening.
- Load capacity 400 nails.
- Tough nylon magazine with a metal nail tray.
- Durable aluminum frame and cylinder cap
- Comfortable rubber grip.
- Well balanced design.
Specifications
|
WEIGHT
|
5.3 kg |
|---|---|
|
DIMENSIONS
|
417mm(H) x 156mm(W) x 336mm(L) |
MINIMUM OPERATION PRESSURE | 5 bar |
MAXIMUM OPERATION PRESSURE | 7 bar |
AIR INLET SIZE | 3/8" |
MAGAZINE CAPACITY | 300 |
DEPTH CONTROL | No |
JAM CLEARING | No |
TRIGGER TYPE | Rapid Fire Trigger |
AIR CONSUMPTION (FT3/CYCLE) | 0.108 |
ACCESSORIES | Safety glasses |
Fasteners
COLLATION TYPE | Wire |
|---|---|
NAIL GUN ANGLE | 15 |
STRIP OR COIL | Coil |
COMPATIBLE FASTENER TYPES | Flat wire welded nails |
MINIMUM FASTENER SIZE | 65 |
MAXIMUM FASTENER SIZE | 100 |
MINIMUM NAIL DIAMETER | 2.5 |
MAXIMUM NAIL DIAMETER | 3.3 |
Manuals
Owner's Manual
Download
