AKHL1320E
PowerLite High Pressure
air compressor

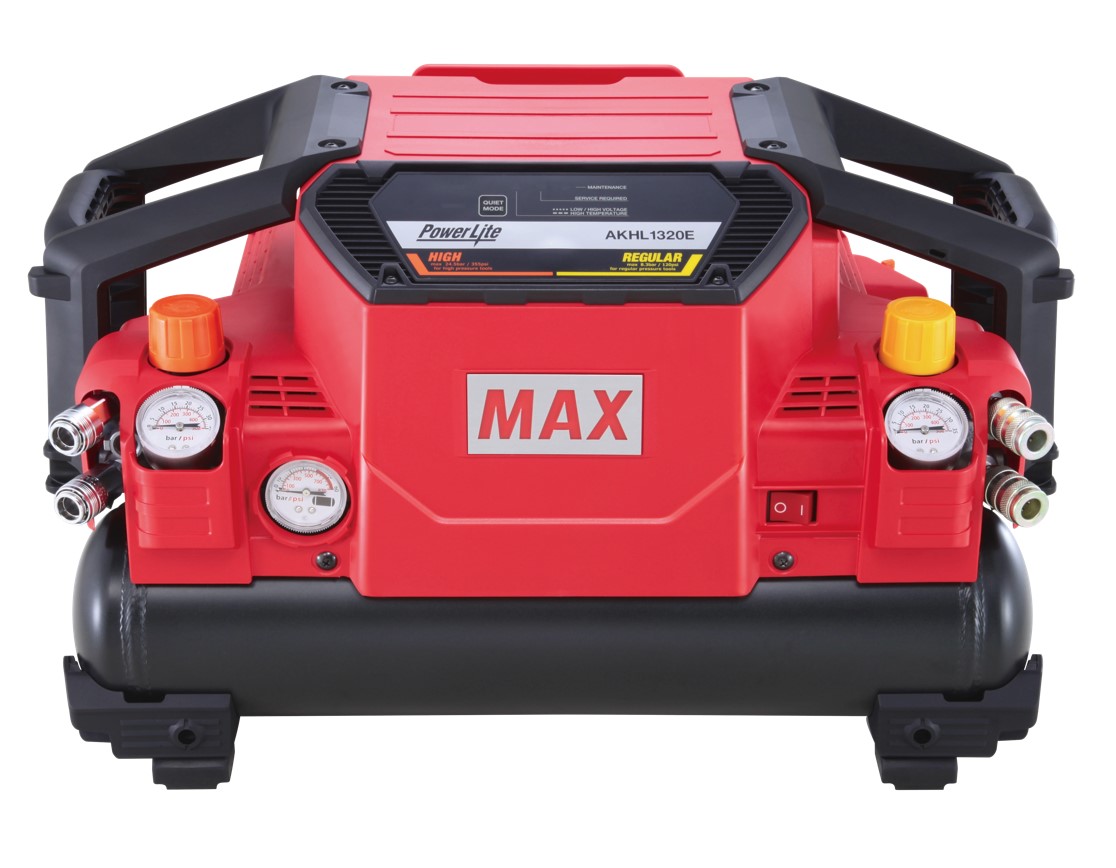

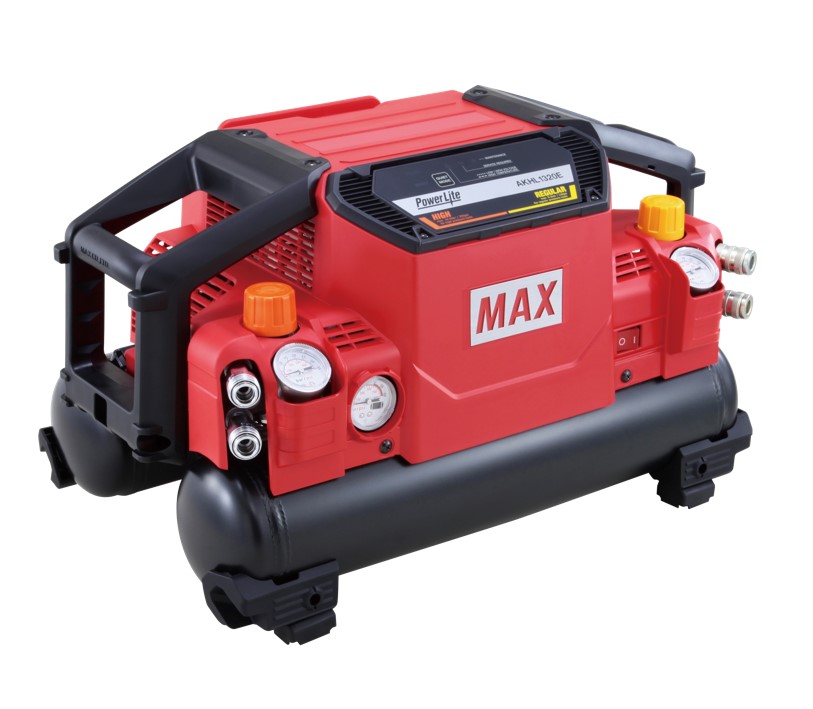

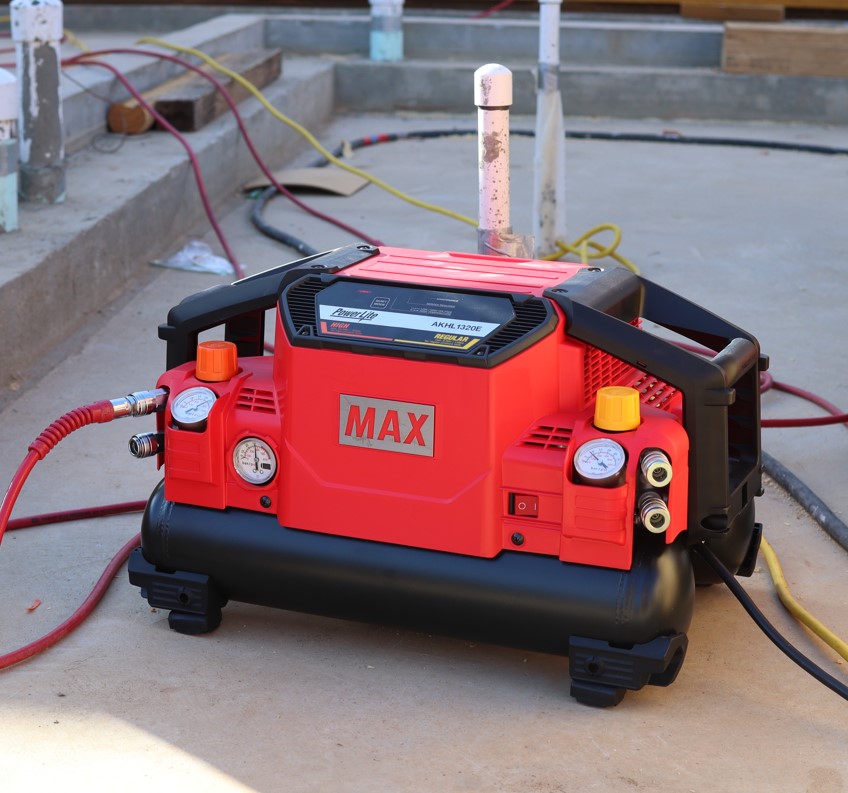

The MAX AKHL1320E is a lightweight, quiet dual-tank high-pressure air compressor designed for professional construction applications. Weighing just 17.6 kg and operating at only 67.0 dB, it delivers compressed air up to 500 PSI (34 bar) to power MAX high-pressure nailers and fastening tools. The inverter-controlled system enables reliable operation in low-voltage conditions and extremely cold temperatures, making the AKHL1320E a versatile and dependable compressor for demanding jobsites.
Contact Us
Quick Quotation
Features
- 500 PSI (34 bar) High-Pressure Air
The AKHL1320E delivers compressed air up to 500 PSI (34 bar)—five times the pressure of a conventional 100 PSI air compressor. The higher operating pressure enables efficient air storage and provides the high-pressure air required to power MAX high-pressure nailers and fastening tools. - Lightweight Design with Dual Carry Handles
Weighing just 17.6 kg, the AKHL1320E features dual-sided handles for easy transport, making it practical to move around demanding jobsites. - Quiet Operation at 67.0 dB
With a 67.0 dB quiet mode, the AKHL1320E helps reduce operating noise for a more comfortable jobsite environment. - Inverter-Controlled Performance
The inverter circuit automatically adjusts motor RPM according to the available voltage, helping maintain optimal compressor performance across varying power conditions. - Four Air Outlets for High- and Standard-Pressure Tools
Four air outlets provide flexible connection options, with two outlets for high-pressure tools and two for standard-pressure tools, allowing different applications from a single compressor. - Expandable Tank Capacity
An optional 5 L × 3 extra tank system can be added to increase total tank capacity, providing additional air storage for applications requiring greater air volume.
Specifications
WEIGHT | 17.6 kg |
|---|---|
DIMENSIONS | 336mm(H) x 351mm(W) x 573mm(L) |
COMPRESSOR TANK CAPACITY (Litres) | 10L |
DECIBEL RATING (OUTDOOR) | 67.0dB |
HORSEPOWER (HP) | 2 |
LUBRICATION TYPE | Oil-less |
RATE CURRENT | 6A |
MOTOR RPM | 2,450 (Normal mode)/ 1,400 (Quiet mode) |
Manuals
Owner's Manual
Download
