AKHL1260E

PowerLite High Pressure
air compressor

The MAX AKHL1260E is a quiet dual-tank lightweight high pressure air compressor. The AKHL1260E is able to compress air up to 34 bar, operate in extremely cold temperatures and in low voltage scenarios.

Features

  • Lightweight at 16.2kg. Dual sided handles for easy transport.
  • DC Brushless Motor that is more powerful quieter and lighter than conventional motors.
  • Inverter Circuit on the motor adjusts the RPM to extract the maximum performance depending on the voltage level.
  • LED light and beeping system that indicates problems with the compressor (i.e. high temperature or low voltage).
  • 4 Air-outlets provide flexibility | 2 outlets for high pressure tools. 2 outlets for regular pressure tools.
  • Easy drain lever. By turning the lever the ball valve quickly opens to easily drain air and water. This helps to prevent air leaks caused by foreign substances.

Specifications

WEIGHT
16.2 kg
DIMENSIONS

337mm(H) x 309mm(W) x 583mm(L)

COMPRESSOR TANK CAPACITY (GALLONS)
8.6
DECIBEL RATING (OUTDOOR)
67.5dB
HORSEPOWER (HIP)
2
LUBRICATION TYPE
Oil-less
RATE CURRENT
6A
MOTOR RPM
2,800 (Normal mode)/ 1,600 (Quiet mode)

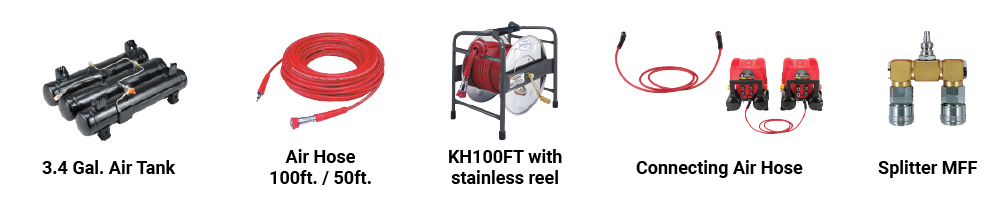

Accessories

Manuals

Owner's Manual

Download

Documents

Parts List

Download

Schematic

Download
